Wastewater/Activity/PacpInspection/1.0Jan 27, 2017, 08:28 AM
03 0328_03 0327_1272017_004943.mp4
- Date
- 01/27/2017
- W/O
- 0619904
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00359
- PipeID
- P04902
- Time
- 12:28 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0416
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170125MDM_ANAHEIM_STREET_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0328
- Downstream MH
- 03 0327
- Dir. of Survey
- Downstream
- Length Surveyed
- 144.9 ft.
- Total Length
- 144.9 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 5
- O&M Quick
- 5200
- O&M Rating
- 10
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

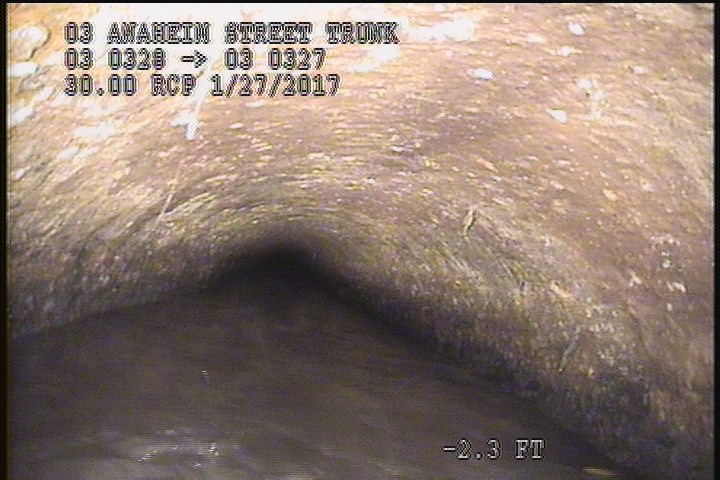

2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, StarT - SEVERE AGG

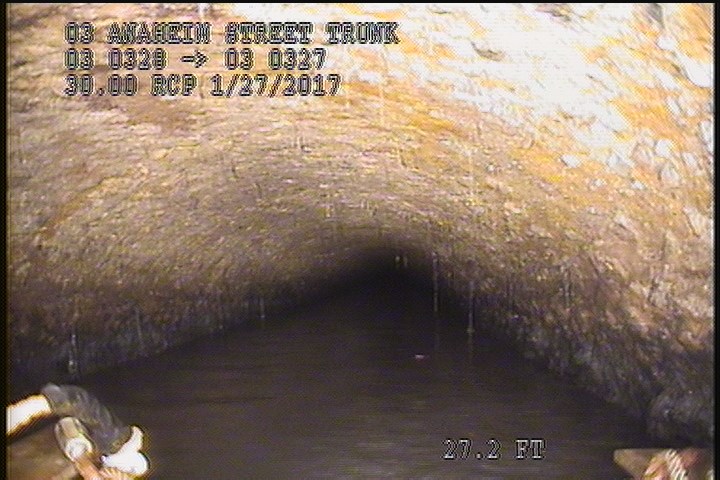

27.2 ft. - General Observation - 1

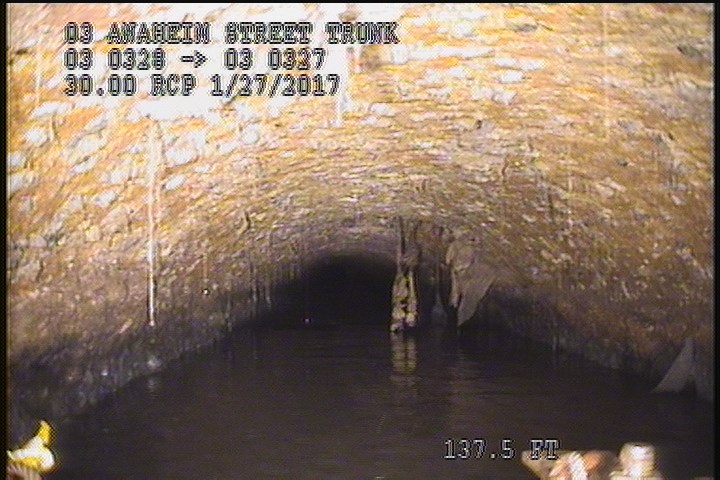

137.5 ft. - Water Mark, 80 %of cross sectional area
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 27.2 | MGO | 1 |
| 0 | AMH | 12:35AM |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 144.4 | SAM | SEVERE AGG |
| 137.5 | MWM | — |
| 0 | MWL | — |
| 144.6 | MGO | Conn. @ Mh, 3 O' Clock. OPEN |
| 2 | SAM | SEVERE AGG |
| 144.9 | AMH | 12:55AM |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- MISSING SEVERE AGG
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-01-27T00:28:06-08:00
