Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 26, 2017, 09:15 AM

  • 03 0335_03 0334_1262017_015152.mp4

Date
01/26/2017
W/O
0619904
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00359
PipeID
P04909
Time
1:15 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0415
Sewer Name
03 ANAHEIM STREET TRUNK
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Capital Improvement Program Assesment
Project
20170125MDM_ANAHEIM_STREET_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
03 0335
Downstream MH
03 0334
Dir. of Survey
Downstream
Length Surveyed
328.6 ft.
Total Length
328.6 ft.
Structural Index
5
Structural Quick
5500
Structural Rating
25
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
5
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 03 0335 to 03 0334
MH: 03 0335MH: 03 0334downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 1:15AM0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. SMW - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE2 ft. SMW - Surface Missing Wall, from 01 to 03 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE SPORATIC14.7 ft. SMW - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - SOIL VISIBLE96.2 ft. SMW - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - VOID SOIL VISIBLE99 ft. SMW - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - DEEP VOID SOIL VISIBLE101.7 ft. MGO - General Observation - 30" RCP274.5 ft. SMW - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES, Finish - SOIL VISIBLE274.6 ft. SMW - Surface Missing Wall, from 01 to 03 o'clock, within 8 inches of joint: YES, Finish - SOIL VISIBLE SPORATIC328.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active328.6 ft. AMH - Downstream Manhole, Survey Ends - 1:50AM

Observation photos (6)

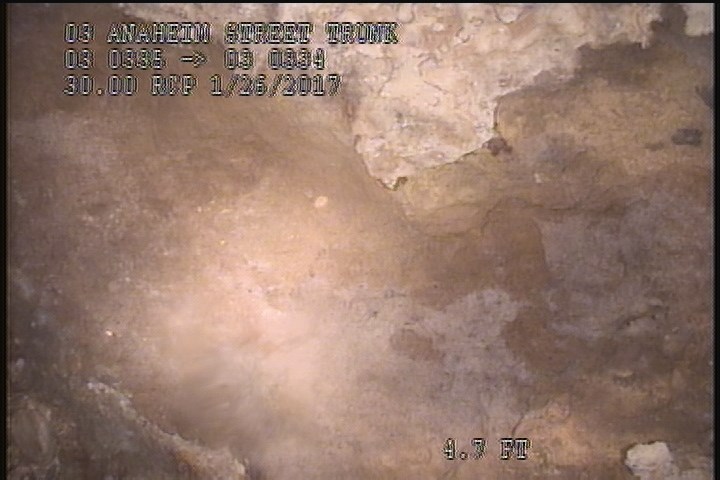

  • Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE

    2 ft. - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE

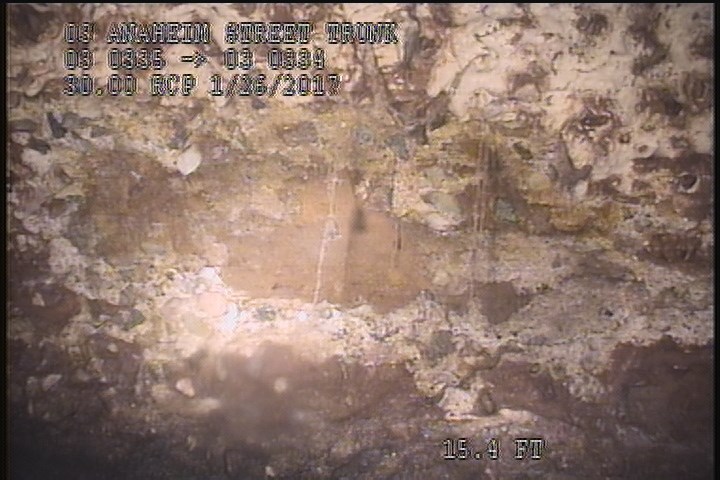

  • Surface Missing Wall, from 01 to 03 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE SPORATIC

    2 ft. - Surface Missing Wall, from 01 to 03 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE SPORATIC

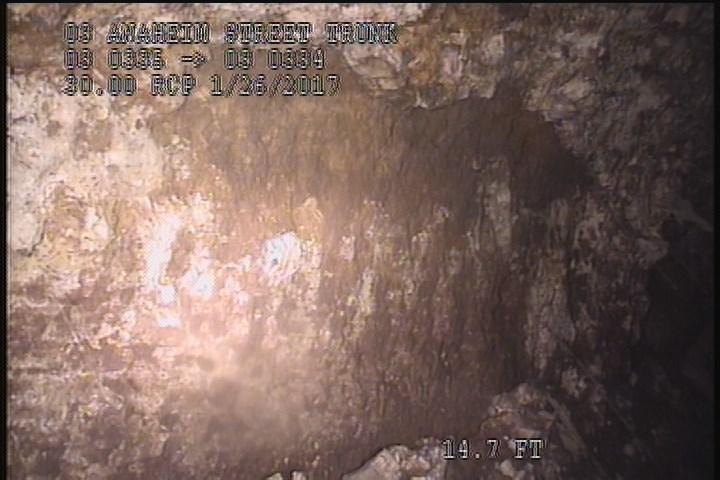

  • Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

    14.7 ft. - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

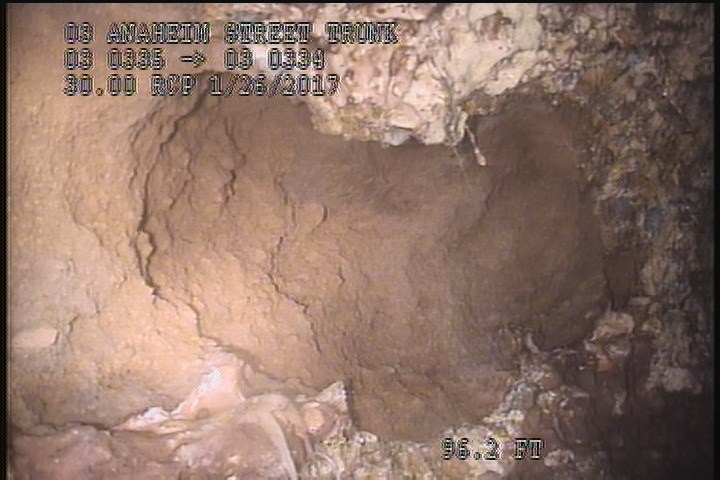

  • Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - VOID SOIL VISIBLE

    96.2 ft. - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - VOID SOIL VISIBLE

  • Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - DEEP VOID SOIL VISIBLE

    99 ft. - Surface Missing Wall, from 09 to 11 o'clock, within 8 inches of joint: YES - DEEP VOID SOIL VISIBLE

  • General Observation - 30" RCP

    101.7 ft. - General Observation - 30" RCP

All inspections of P04909Work order 0619904

Observations (14)

DistanceCodeObservation
0MWL—
0MGOConn. @ Mh, 9 O' Clock. Active
99SMWDEEP VOID SOIL VISIBLE
328.6AMH1:50AM
274.5SMWSOIL VISIBLE
101.7MGO30" RCP
14.7SMWSOIL VISIBLE
0AMH1:15AM
0MWM—
274.6SMWSOIL VISIBLE SPORATIC
2SMWSOIL VISIBLE
2SMWSOIL VISIBLE SPORATIC
96.2SMWVOID SOIL VISIBLE
328.2MGOConn. @ Mh, 3 O' Clock. Active

Properties (5)

additional_info
EMERGENCY INSPECTION
custom_field_three
DEEP VOIDS SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2017-01-26T01:15:00-08:00
