Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 25, 2017, 09:02 PM

  • 01 1091_01 1090_1252017_130919.mp4

Date
01/25/2017
W/O
0613635
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00210
PipeID
P01940
Time
1:02 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7318
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20170124DF_HUNTINGTON_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
01 1091
Downstream MH
01 1090
Dir. of Survey
Downstream
Length Surveyed
523.3 ft.
Total Length
523.3 ft.
Structural Index
3
Structural Quick
4137
Structural Rating
29
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 01 1091 to 01 1090
MH: 01 1091MH: 01 1090downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:11 PM0.1 ft. MGO - General Observation - ROACHES @ MH0.1 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0.1 ft. MWL - Water Level, 15 %of cross sectional area2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start84.2 ft. CM - Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES96.6 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES147.5 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES305.4 ft. CM - Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES399.3 ft. FS - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES420.3 ft. FS - Fracture Spiral, from 09 to 10 o'clock, within 8 inches of joint: YES464.7 ft. CM - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES523.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active523.1 ft. MGO - General Observation - ROACHES @ MH523.2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish523.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish523.2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish523.3 ft. AMH - Downstream Manhole, Survey Ends - 1:44 PM

Observation photos (7)

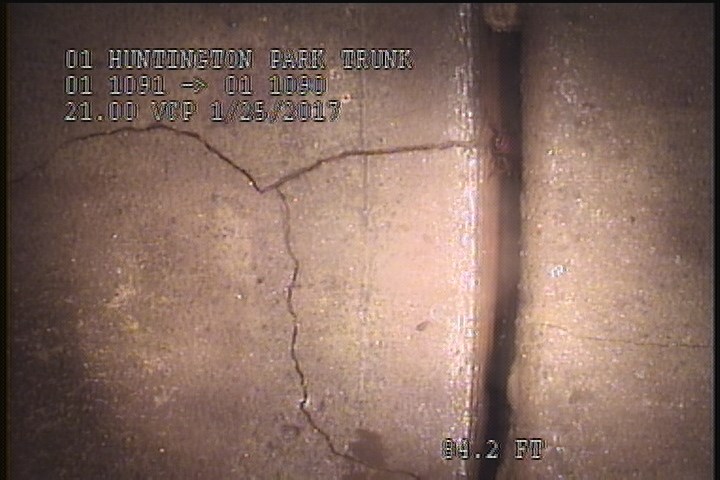

  • Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES

    84.2 ft. - Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: YES

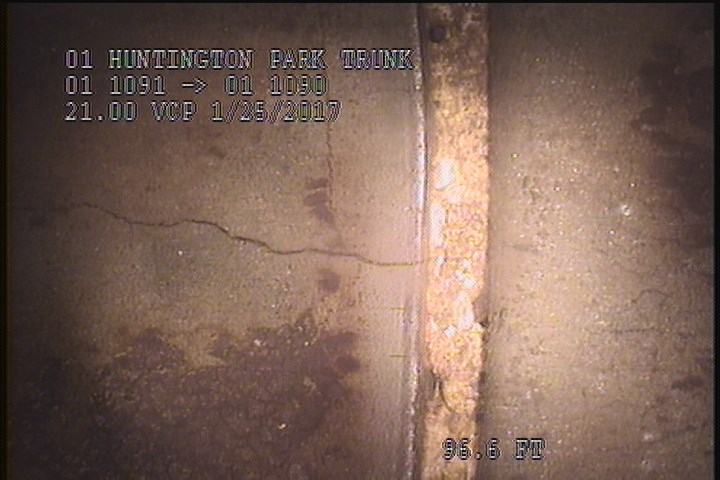

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    96.6 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

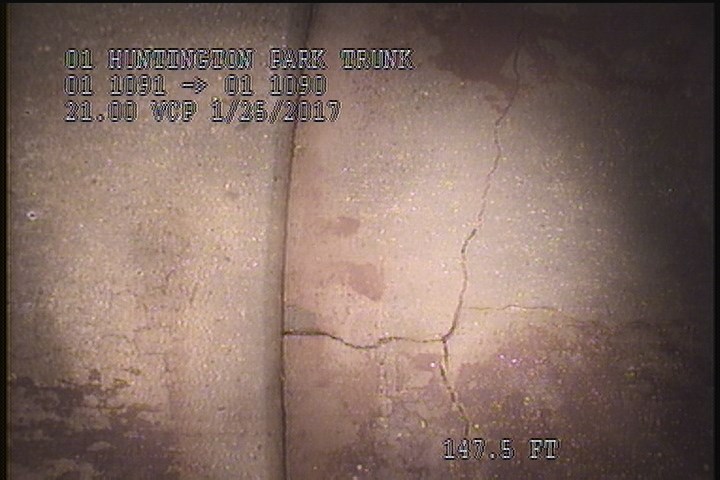

  • Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

    147.5 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

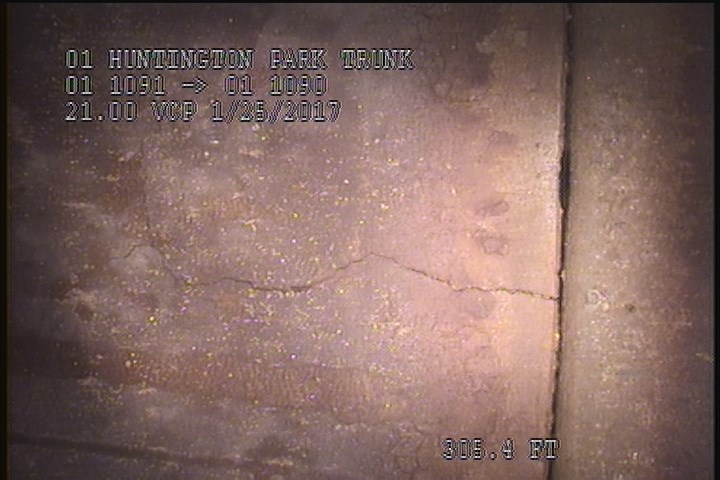

  • Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES

    305.4 ft. - Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES

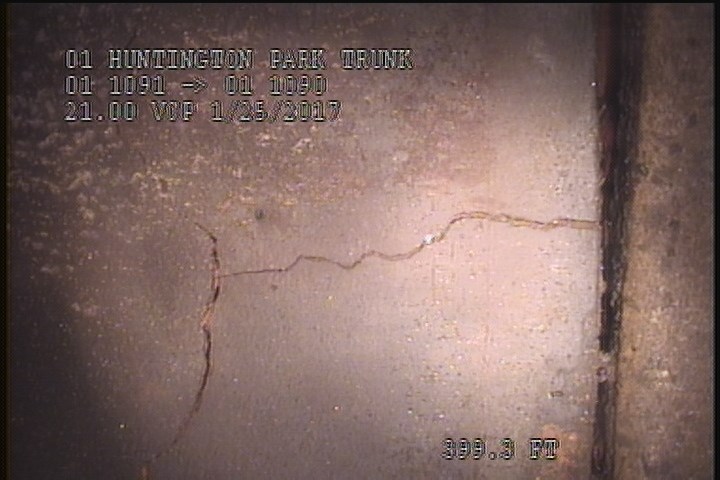

  • Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES

    399.3 ft. - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES

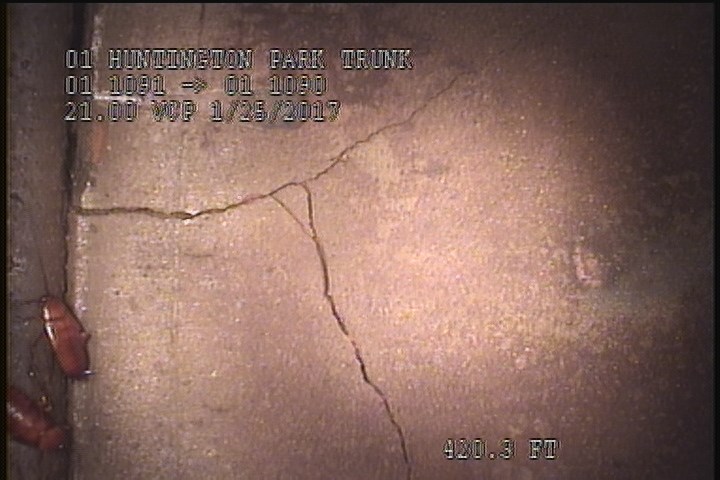

  • Fracture Spiral, from 09 to 10 o'clock, within 8 inches of joint: YES

    420.3 ft. - Fracture Spiral, from 09 to 10 o'clock, within 8 inches of joint: YES

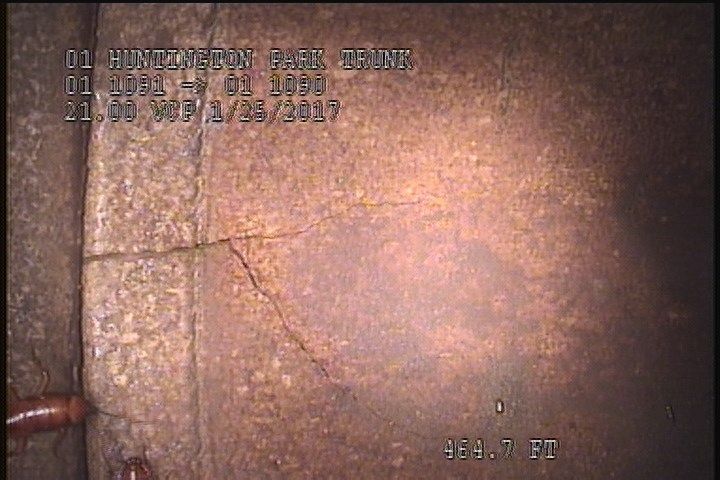

  • Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

    464.7 ft. - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

All inspections of P01940Work order 0613635

Observations (21)

DistanceCodeObservation
0.1MGOROACHES @ MH
523.2SSSC—
523.2FM—
2FM—
0.1MWM—
2SSSC—
2SAVC—
523.1MGOConn. @ Mh, 3 O' Clock. Active
523.3AMH1:44 PM
523.1MGOROACHES @ MH
305.4CM—
420.3FS—
0.1MGOConn. @ Mh, 3 O' Clock. Active
464.7CM—
0AMH1:11 PM
0.1MWL—
84.2CM—
96.6CL—
523.2SAVC—
399.3FS—
147.5CM—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-01-25T13:02:59-08:00
