Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 25, 2017, 06:03 PM

  • 01 1092_01 1091_1252017_100901.mp4

Date
01/25/2017
W/O
0613635
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00210
PipeID
P01941
Time
10:03 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7317
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20170124DF_HUNTINGTON_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
01 1092
Downstream MH
01 1091
Dir. of Survey
Downstream
Length Surveyed
433.2 ft.
Total Length
433.2 ft.
Structural Index
3
Structural Quick
3322
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 01 1092 to 01 1091
MH: 01 1092MH: 01 1091downstream0 ft. MGO - General Observation - ROACHES @ MH0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 10:04 AM0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start417 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES425 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES433.2 ft. MGO - General Observation - ROACHES THROUGHOUT THE REACH433.2 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH433.2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish433.2 ft. AMH - Downstream Manhole, Survey Ends - 10:28 AM433.2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish433.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish433.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active

Observation photos (2)

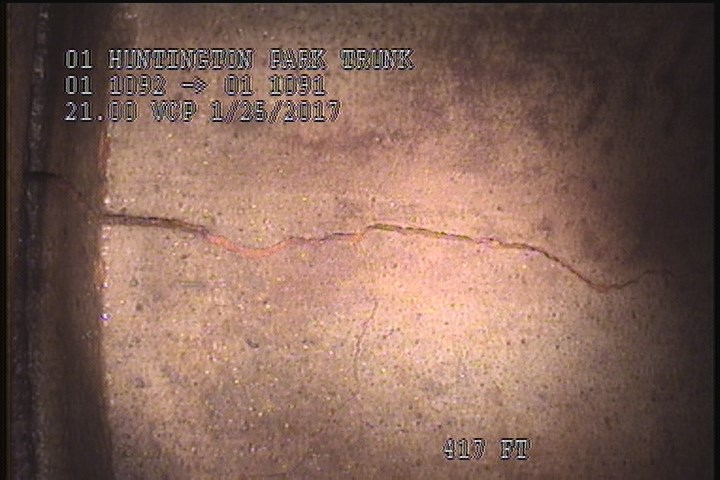

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    417 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

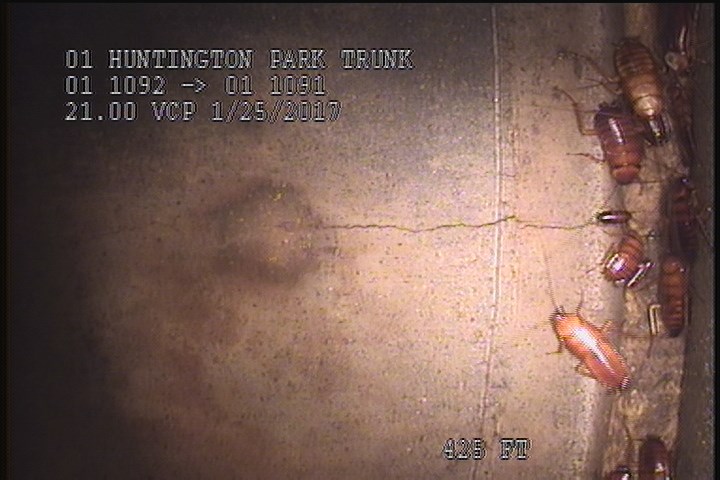

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    425 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

All inspections of P01941Work order 0613635

Observations (17)

DistanceCodeObservation
0MGOROACHES @ MH
417FL—
2SAVC—
0MGOConn. @ Mh, 3 O' Clock. Active
433.2MGOROACHES THROUGHOUT THE REACH
2CM—
433.2MGOGREASE THROUGHOUT THE REACH
2SSSC—
0AMH10:04 AM
433.2SAVC—
0MWL—
425CL—
433.2AMH10:28 AM
433.2SSSC—
0MWM—
433.2CM—
433.2MGOConn. @ Mh, 3 O' Clock. Active

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-01-25T10:03:17-08:00
