Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 09:10 PM

  • 01 1096_01 1095_1242017_131440.mp4

Date
01/24/2017
W/O
0613635
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00210
PipeID
P01946
Time
1:10 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7317
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20170124DF_HUNTINGTON_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
01 1095
Downstream MH
01 1096
Dir. of Survey
Upstream
Length Surveyed
353.1 ft.
Total Length
353.1 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 01 1095 to 01 1096
MH: 01 1095MH: 01 1096upstream0 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 1:38 PM0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - ROACHES @ MH0 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish188.2 ft. B - Broken, from 09 to 10 o'clock, within 8 inches of joint: YES310.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES351.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start351.1 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start351.1 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start353.1 ft. MGO - General Observation - Conn. @ Mh, 10 O' Clock. Active353.1 ft. MGO - General Observation - ROACHES @ MH353.1 ft. MWM - Water Mark, 25 %of cross sectional area353.1 ft. AMH - Downstream Manhole, Survey Begins - 1:11 PM353.1 ft. MWL - Water Level, 20 %of cross sectional area

Observation photos (2)

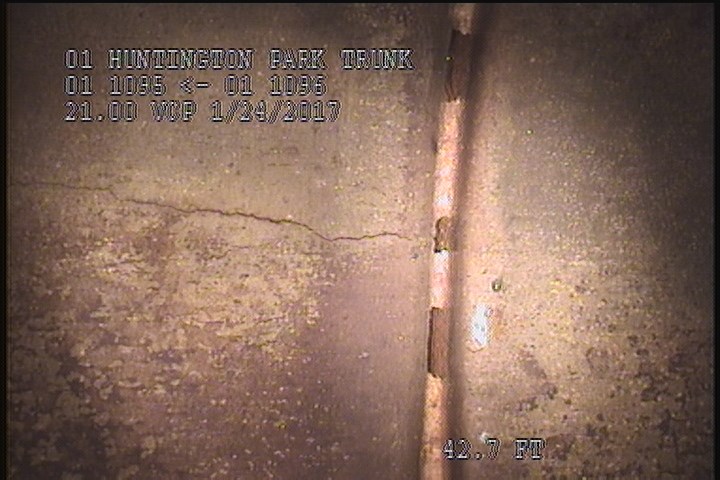

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    42.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

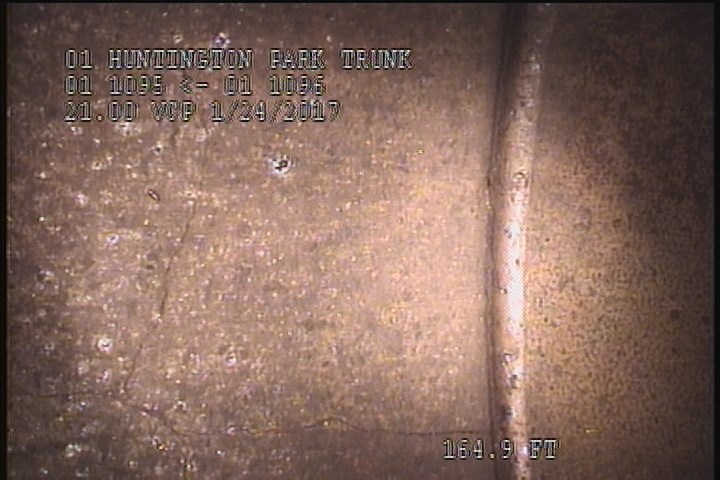

  • Broken, from 09 to 10 o'clock, within 8 inches of joint: YES

    164.9 ft. - Broken, from 09 to 10 o'clock, within 8 inches of joint: YES

All inspections of P01946Work order 0613635

Observations (15)

DistanceCodeObservation
2CM—
2SSSC—
0MGOConn. @ Mh, 10 O' Clock. Active
0MGOROACHES @ MH
164.9B—
0MWM—
42.7CL—
2SAVC—
353.1SAVC—
353.1AMH1:38 PM
353.1CM—
0AMH1:11 PM
353.1MGOROACHES @ MH
353.1SSSC—
0MWL—
