Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 06:02 PM

  • 01 1095_01 1094A_1242017_100602.mp4

  • 01 1095_01 1094A_1242017_101516.mp4

  • 01 1095_01 1094A_1242017_101948.mp4

Date
01/24/2017
W/O
0613635
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00210
PipeID
P01945
Time
10:02 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7317
Sewer Name
01 HUNTINGTON PARK TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20170124DF_HUNTINGTON_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
01 1095
Downstream MH
01 1094A
Dir. of Survey
Downstream
Length Surveyed
362.3 ft.
Total Length
362.3 ft.
Structural Index
2
Structural Quick
3324
Structural Rating
17
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 01 1095 to 01 1094A
MH: 01 1095MH: 01 1094Adownstream0 ft. MGO - General Observation - ROACHES @ MH0 ft. MGO - General Observation - Conn. @ Mh, 4 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:16 AM0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SAVC - Surface Aggregate Visible Chemical, from 07 to 05 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSSC - Surface Spalling Chemical, from 07 to 05 o'clock, within 8 inches of joint: YES, Start139.3 ft. MGP - General Photograph - INTRUDING CONN @ 1 O'CLOCK139.3 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"169.1 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES172.5 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES174.7 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES177.8 ft. CS - Crack Spiral, from 11 to 12 o'clock, within 8 inches of joint: YES, Start195.2 ft. CS - Crack Spiral, from 11 to 12 o'clock, within 8 inches of joint: YES, Finish359.5 ft. SSSC - Surface Spalling Chemical, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish359.5 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active359.5 ft. MGO - General Observation - ROACHES THROUGHOUT THE REACH FROM 9 TO 3 O'CLOCK359.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish359.5 ft. SAVC - Surface Aggregate Visible Chemical, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish362.3 ft. AMH - Downstream Manhole, Survey Ends - 10:45 AM

Observation photos (5)

  • General Photograph - INTRUDING CONN @ 1 O'CLOCK

    139.3 ft. - General Photograph - INTRUDING CONN @ 1 O'CLOCK

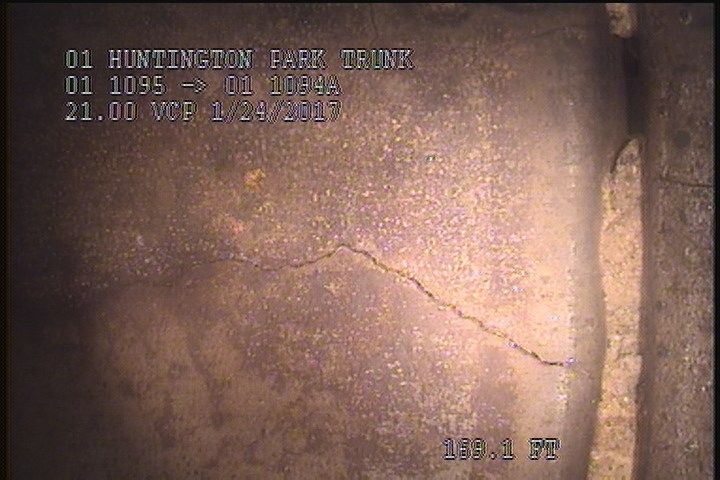

  • Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    169.1 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

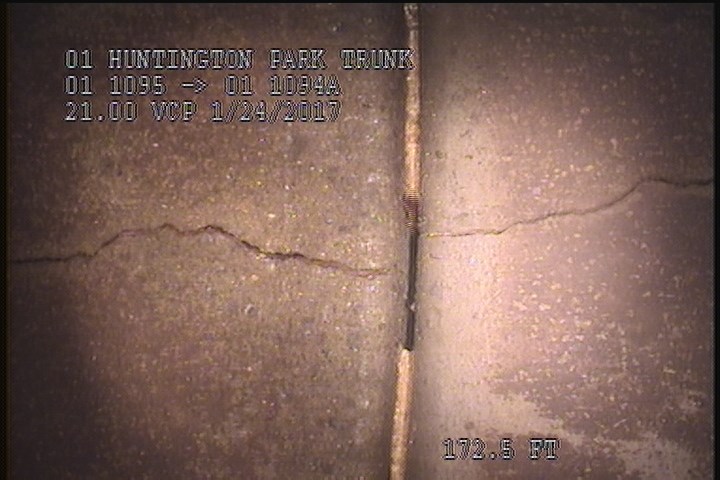

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    172.5 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

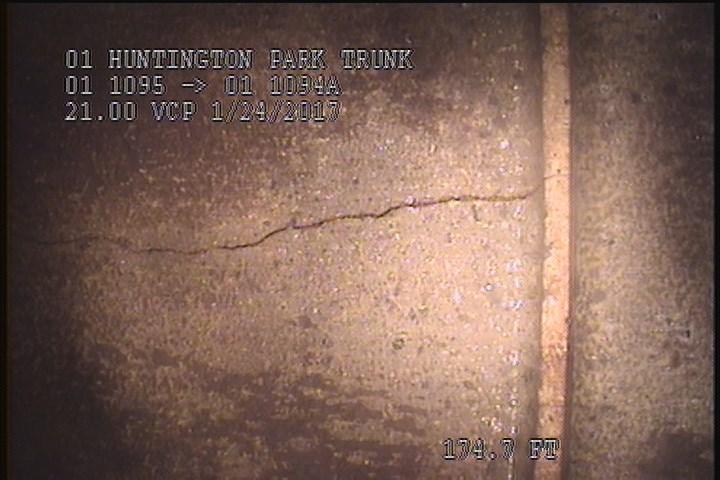

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    174.7 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

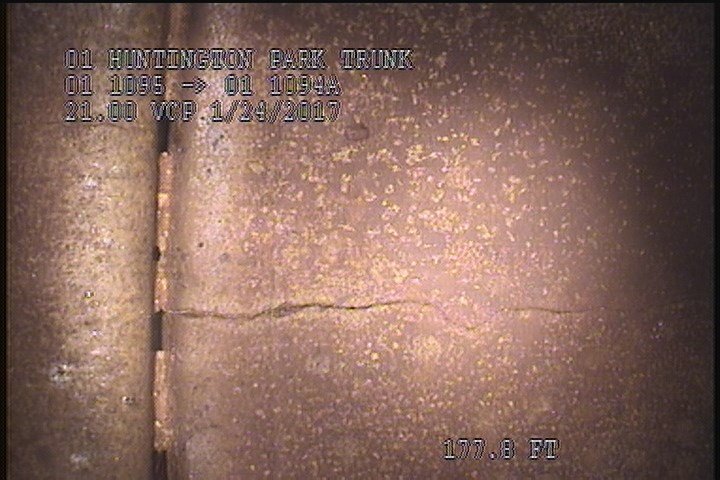

  • Crack Spiral, from 11 to 12 o'clock, within 8 inches of joint: YES, Start

    177.8 ft. - Crack Spiral, from 11 to 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P01945Work order 0613635

Observations (21)

DistanceCodeObservation
0MGOROACHES @ MH
359.5SSSC—
174.7CL—
195.2CS—
177.8CS—
0MGOConn. @ Mh, 4 O' Clock. Active
172.5CL—
139.3MGPINTRUDING CONN @ 1 O'CLOCK
359.5MGOConn. @ Mh, 3 O' Clock. Active
362.3AMH10:45 AM
359.5MGOROACHES THROUGHOUT THE REACH FROM 9 TO 3 O'CLOCK
169.1CM—
2SAVC—
2CM—
2SSSC—
0MWM—
359.5CM—
0AMH9:16 AM
139.3TFA—
359.5SAVC—
0MWL—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-01-24T10:02:28-08:00
