Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 23, 2017, 11:46 PM

  • F 0153_F 0152_1232017_154813.mp4

Date
01/23/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00038
PipeID
P10185
Time
3:46 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7316
Sewer Name
F JOINT OUTFALL F - UNIT 3C
City
NORWALK
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
37
Purpose
Maintenance Related
Project
20170123AM_JOINT_OUTFALL_C_UNIT_3C
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
F 0152
Downstream MH
F 0153
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole F 0152 to F 0153
MH: F 0152MH: F 0153upstream0 ft. MSA - Survey Abandoned - JUST NEEDED TO LOOK UNDERNEATH THE SIDEWALK0.1 ft. MGO - General Observation - DIRT UNDERNEATH THE SIDEWALK2.1 ft. MGO - General Observation - SINKHOLE AREA

Observation photos (3)

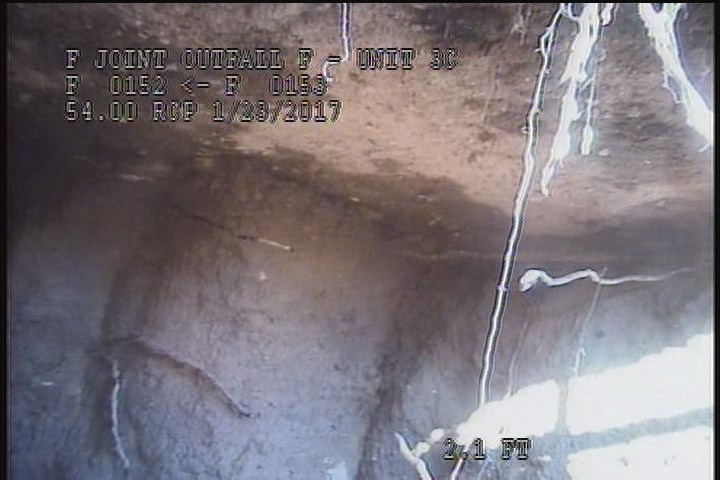

  • General Observation - SINKHOLE AREA

    0 ft. - General Observation - SINKHOLE AREA

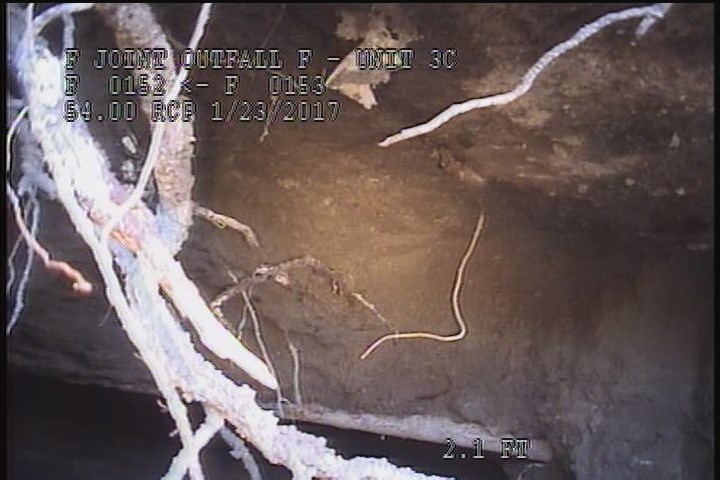

  • General Observation - DIRT UNDERNEATH THE SIDEWALK

    2 ft. - General Observation - DIRT UNDERNEATH THE SIDEWALK

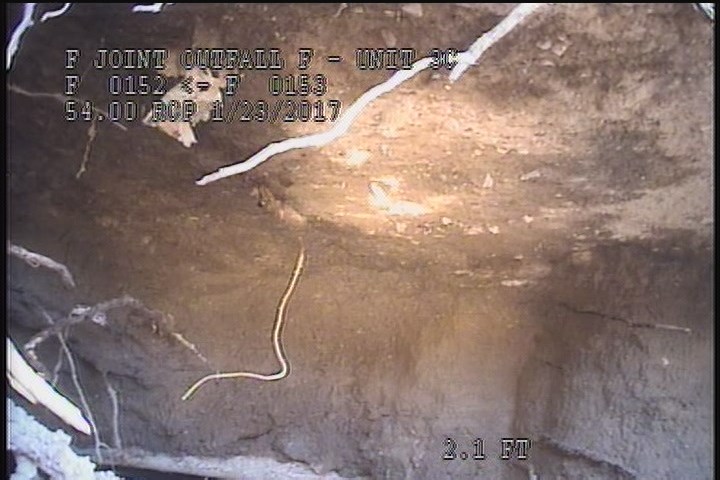

  • Survey Abandoned - JUST NEEDED TO LOOK UNDERNEATH THE SIDEWALK

    2.1 ft. - Survey Abandoned - JUST NEEDED TO LOOK UNDERNEATH THE SIDEWALK

All inspections of P10185Work order PENDING

Observations (3)

DistanceCodeObservation
2MGODIRT UNDERNEATH THE SIDEWALK
2.1MSAJUST NEEDED TO LOOK UNDERNEATH THE SIDEWALK
0MGOSINKHOLE AREA

Properties (5)

additional_info
JUST GOING TO HANG THE CAMERA INSIDE THE SINKHOLE AREA
custom_field_three
HANG JOB ONLY, EMERGENCY
custom_field_two
5
customer
LACSD
datetime
2017-01-23T15:46:06-08:00
