Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 23, 2017, 11:16 PM

  • F 0154_F 0153_1232017_151848.mp4

Date
01/23/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00038
PipeID
P10186
Time
3:16 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7316
Sewer Name
F JOINT OUTFALL F - UNIT 3C
City
NORWALK
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
37
Purpose
Maintenance Related
Project
20170123AM_JOINT_OUTFALL_C_UNIT_3C
Material
Reinforced Concrete Pipe
Shape
Circular
Height
51.20000076293945 in.
Upstream MH
F 0154
Downstream MH
F 0153
Dir. of Survey
Downstream
Length Surveyed
62.9 ft.
Total Length
62.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole F 0154 to F 0153
MH: F 0154MH: F 0153downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:18 PM0 ft. MWL - Water Level, 45 %of cross sectional area17 ft. MGO - General Observation - TAPE PEELING OFF26 ft. MGO - General Observation - TAPE PEELING OFF62.9 ft. AMH - Downstream Manhole, Survey Ends - 3:26 PM

Observation photos (4)

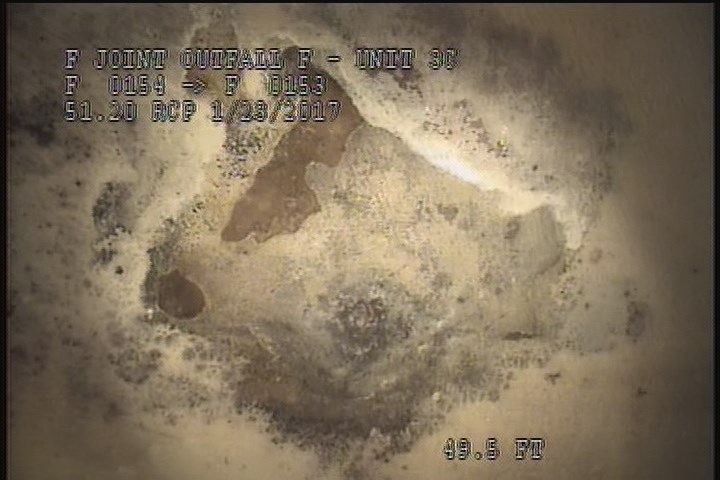

  • Upstream Manhole, Survey Begins - 3:18 PM

    0 ft. - Upstream Manhole, Survey Begins - 3:18 PM

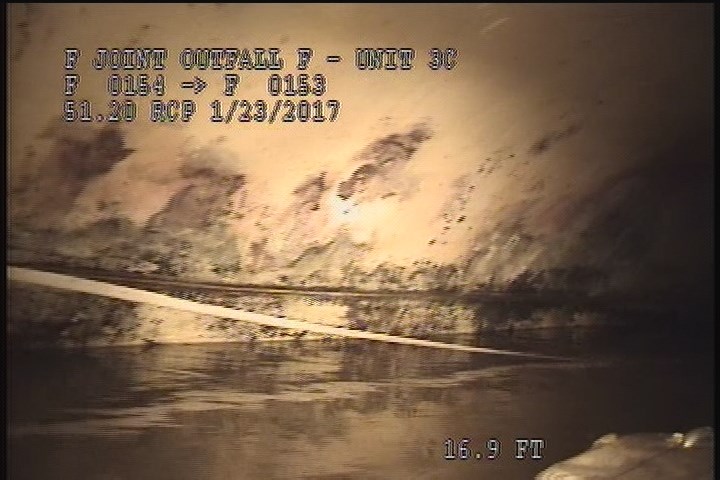

  • General Observation - TAPE PEELING OFF

    17 ft. - General Observation - TAPE PEELING OFF

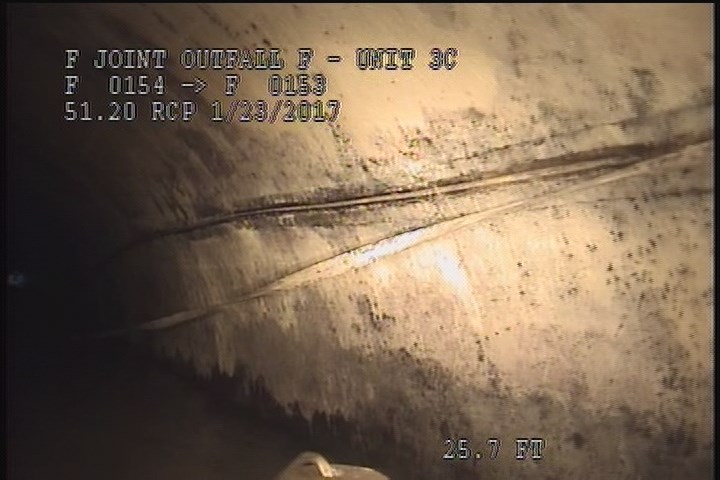

  • General Observation - TAPE PEELING OFF

    26 ft. - General Observation - TAPE PEELING OFF

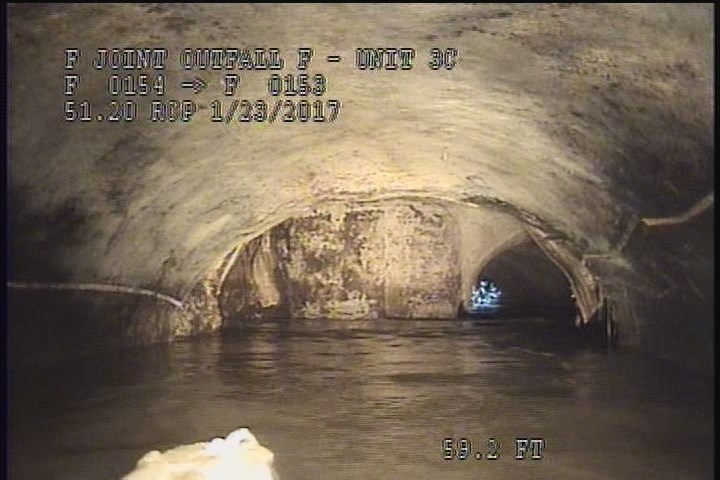

  • Downstream Manhole, Survey Ends - 3:26 PM

    62.9 ft. - Downstream Manhole, Survey Ends - 3:26 PM

All inspections of P10186Work order PENDING

Observations (5)

DistanceCodeObservation
62.9AMH3:26 PM
26MGOTAPE PEELING OFF
0AMH3:18 PM
17MGOTAPE PEELING OFF
0MWL—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2017-01-23T15:16:52-08:00
