Wastewater/Activity/PacpInspection/1.0Jan 23, 2017, 10:33 PM
F 0153_F 0152_1232017_144604.mp4
- Date
- 01/23/2017
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00038
- PipeID
- P10185
- Time
- 2:33 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7316
- Sewer Name
- F JOINT OUTFALL F - UNIT 3C
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Maintenance Related
- Project
- 20170123AM_JOINT_OUTFALL_C_UNIT_3C
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Upstream MH
- F 0153
- Downstream MH
- F 0152
- Dir. of Survey
- Downstream
- Length Surveyed
- 200.2 ft.
- Total Length
- 200.2 ft.
- Structural Index
- 4
- Structural Quick
- 5331
- Structural Rating
- 20
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (4)

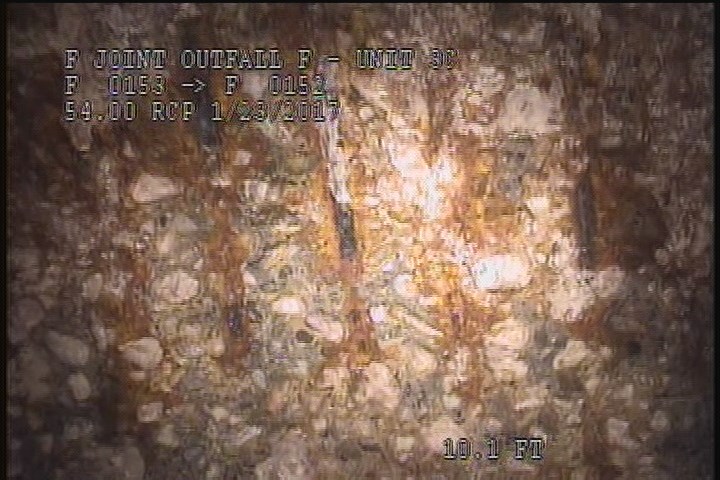

10 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO

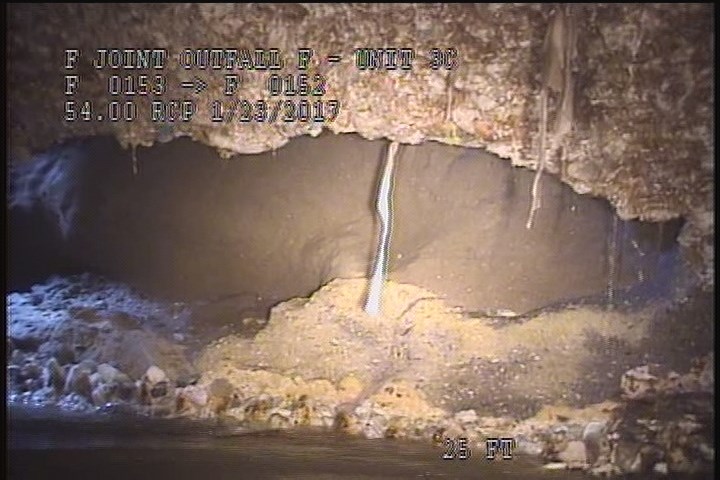

25.1 ft. - Surface Missing Wall, from 01 to 03 o'clock, within 8 inches of joint: YES, Start - SOIL VISIBLE

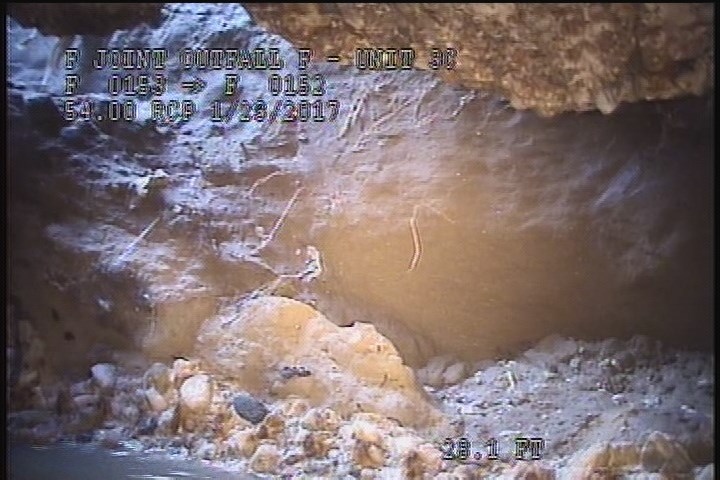

28 ft. - General Photograph - MISSING WALL WITH SOIL VISIBLE

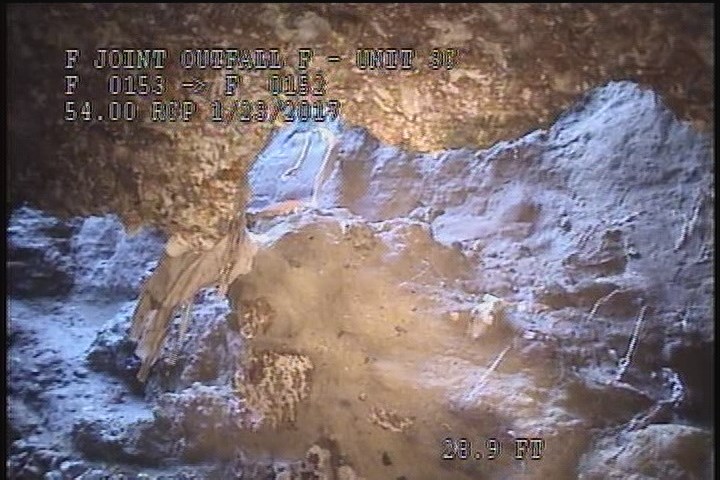

31.1 ft. - Surface Missing Wall, from 01 to 03 o'clock, within 8 inches of joint: YES, Finish - SOIL VISIBLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 25.1 | SMW | SOIL VISIBLE |
| 2 | SAV | — |
| 31.1 | SMW | SOIL VISIBLE |
| 199 | SAV | — |
| 42 | SRC | — |
| 28 | MGP | MISSING WALL WITH SOIL VISIBLE |
| 199 | SSS | — |
| 200.2 | MSA | CAMERA STOPPED FLOATING D/S, 3:01 PM |
| 0 | AMH | 2:44 PM, SINKHOLE |
| 10 | SRV | — |
| 2 | SSS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- EMERGENCY INSPECTION, SINKHOLE
- custom_field_three
- MISSING WALL
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-01-23T14:33:29-08:00
