Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 23, 2017, 07:08 PM

  • B 1045_B 1035_1232017_111125.mp4

Date
01/23/2017
W/O
PENDING
Weather
Light Rain
Operator/Surveyor
MIRANDA
Sewer ID
Z00923
PipeID
P22488
Time
11:08 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0407
Sewer Name
B JOINT OUTFALL B - UNIT 1C REPLACEMENT
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Maintenance Related
Project
20160123AM_JOINT_OUTFALL_B_UNIT_1C_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
48 in.
Upstream MH
B 1045
Downstream MH
B 1035
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1045 to B 1035
MH: B 1045MH: B 1035downstream0 ft. MWL - Water Level, 35 %of cross sectional area - STAGNANT WATER0 ft. MGO - General Observation - BLISTERING IN THE ROOF AREA0 ft. AMH - Upstream Manhole, Survey Begins - 11:10 AM0 ft. MGO - General Observation - UNDER THE FRAME2 ft. MGO - General Observation - STOPLOG IN PLACE2 ft. MGO - General Observation - BRICK BULKHEAD2.1 ft. AMH - Upstream Manhole, Survey Ends

Observation photos (5)

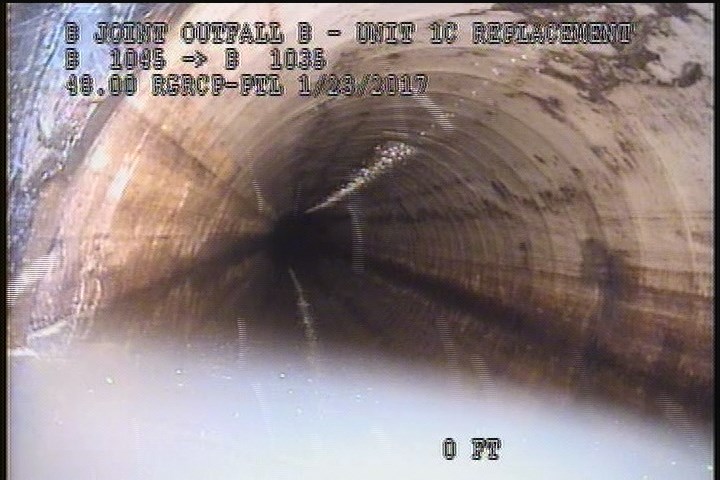

  • Water Level, 35 %of cross sectional area - STAGNANT WATER

    0 ft. - Water Level, 35 %of cross sectional area - STAGNANT WATER

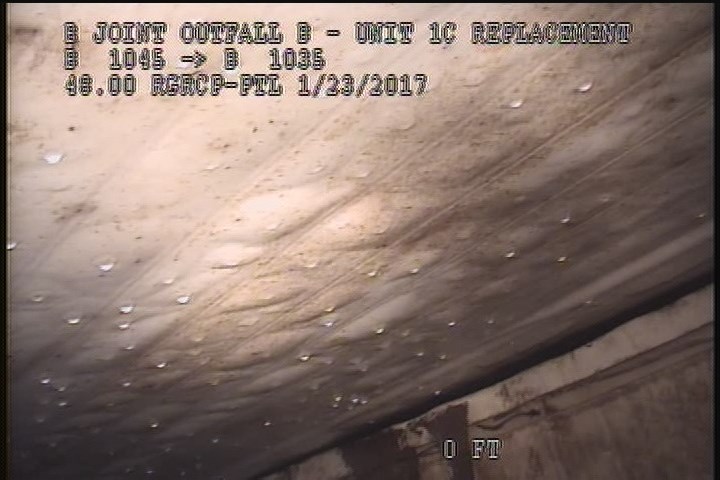

  • General Observation - BLISTERING IN THE ROOF AREA

    0 ft. - General Observation - BLISTERING IN THE ROOF AREA

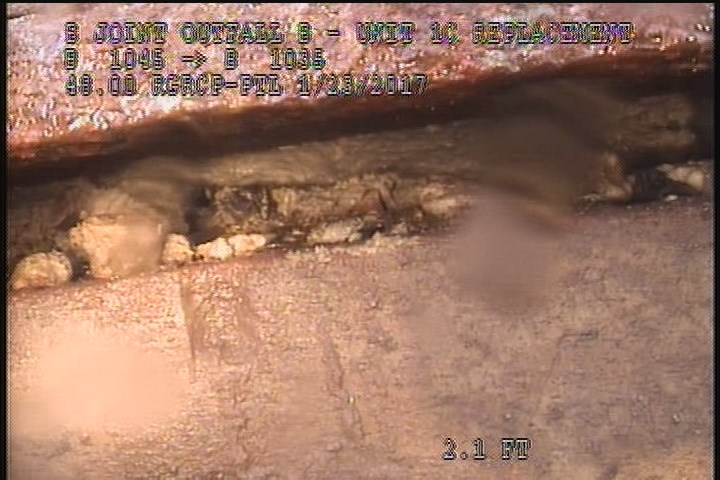

  • General Observation - UNDER THE FRAME

    0 ft. - General Observation - UNDER THE FRAME

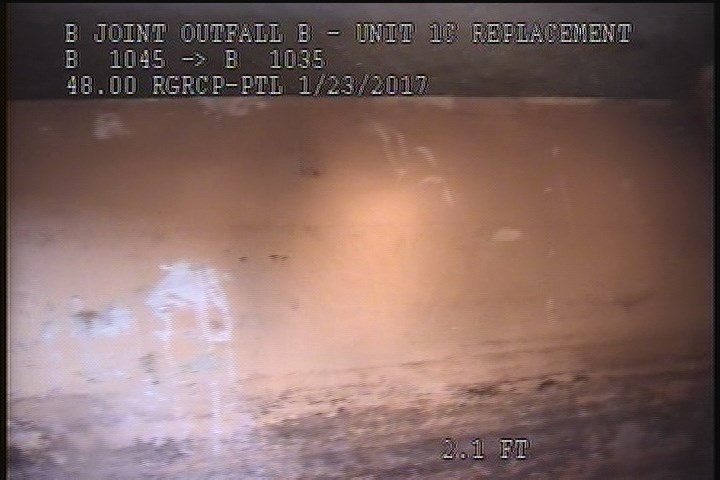

  • General Observation - STOPLOG IN PLACE

    2 ft. - General Observation - STOPLOG IN PLACE

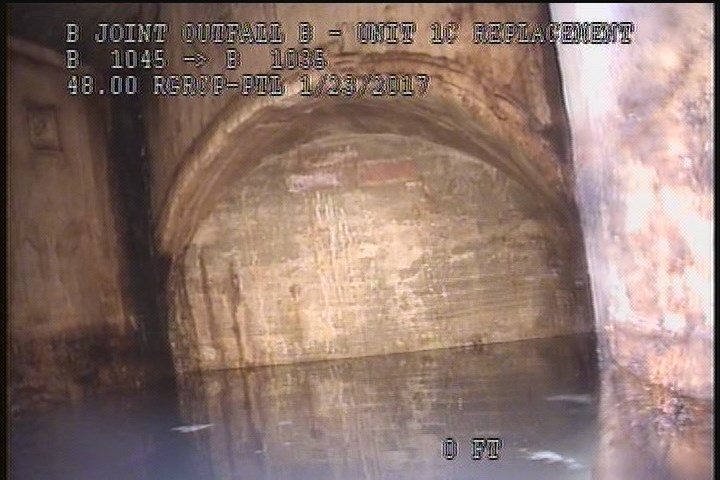

  • General Observation - BRICK BULKHEAD

    2 ft. - General Observation - BRICK BULKHEAD

All inspections of P22488Work order PENDING

Observations (7)

DistanceCodeObservation
0MWLSTAGNANT WATER
2MGOSTOPLOG IN PLACE
0MGOBLISTERING IN THE ROOF AREA
2.1AMH—
0AMH11:10 AM
0MGOUNDER THE FRAME
2MGOBRICK BULKHEAD

Properties (5)

additional_info
CHECKING THE STATUS OF THE STRUCTURE, ASPHALT IS RISING
custom_field_three
MANHOLE INSPECTION ONLY
custom_field_two
5
customer
LACSD
datetime
2017-01-23T11:08:50-08:00
