Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 06:11 PM
J 0496_J 0494_1242017_101935.mp4
- Date
- 01/24/2017
- W/O
- 0619237
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00055
- PipeID
- P26256
- Time
- 10:11 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0410
- Sewer Name
- J JOINT OUTFALL J - UNIT 1C
- City
- PALO VERDE
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 40
- Purpose
- Routine Assessment
- Project
- 20170120MI_JOINT_OUTFALL_J_UNIT_1C
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- J 0494
- Downstream MH
- J 0496
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

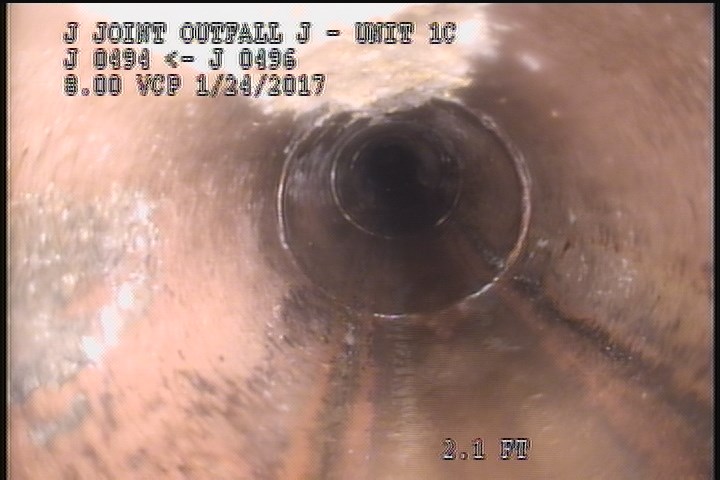

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 12 o'clock, , within 8 inches of joint: YES

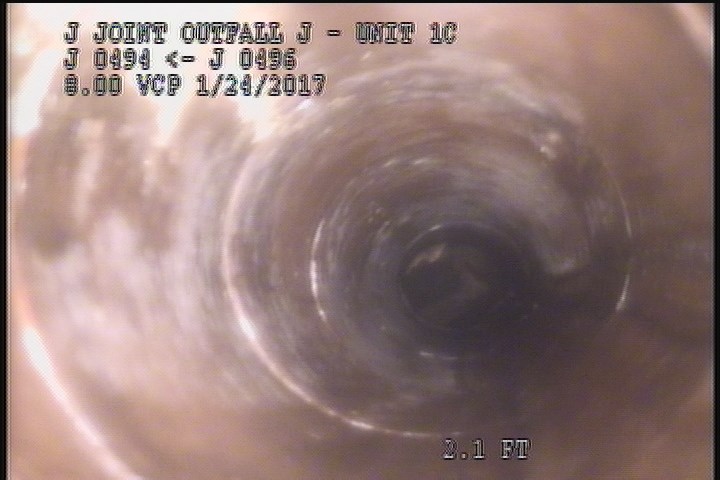

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 2.1 | DAGS | — |
| 2.1 | SSS | — |
| 2.1 | AMH | 10:27AM, ZOOMED TO MH J 0496 |
| 0 | AMH | 10:16AM |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-24T10:11:23-08:00
