Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 20, 2017, 06:52 PM

  • J 0496_J 0494_1202017_105915.mp4

Date
01/20/2017
W/O
0619237
Weather
Light Rain
Operator/Surveyor
IGNACIO
Sewer ID
Z00055
PipeID
P26256
Time
10:52 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0406
Sewer Name
J JOINT OUTFALL J - UNIT 1C
City
PALO VERDE
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
40
Purpose
Routine Assessment
Project
20170120MI_JOINT_OUTFALL_J_UNIT_1C
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
J 0494
Downstream MH
J 0496
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole J 0494 to J 0496
MH: J 0494MH: J 0496upstream0 ft. MGP - General Photograph0 ft. DAGS - Deposits Attached Grease, 75 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES0 ft. MSA - Survey Abandoned - OBSTRUCTION, FROM 9 TO 3 OCLOCK, 75 %2.1 ft. MWL - Water Level, 25 %of cross sectional area2.1 ft. AMH - Downstream Manhole, Survey Begins - 10:56AM2.1 ft. MWM - Water Mark, 30 %of cross sectional area

Observation photos (2)

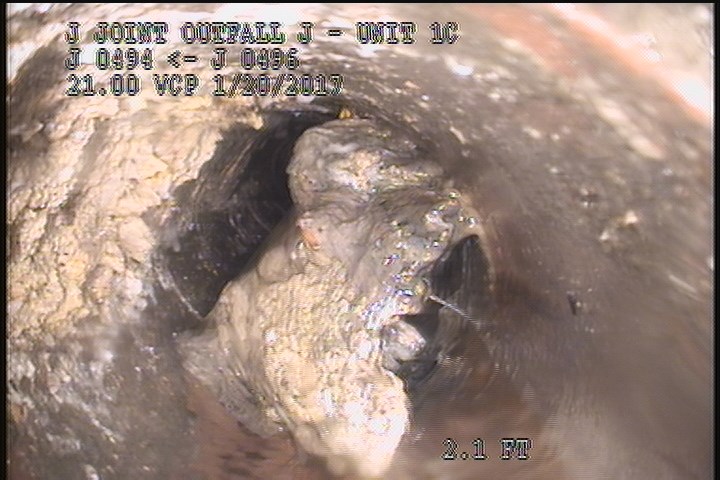

  • General Photograph

    2.1 ft. - General Photograph

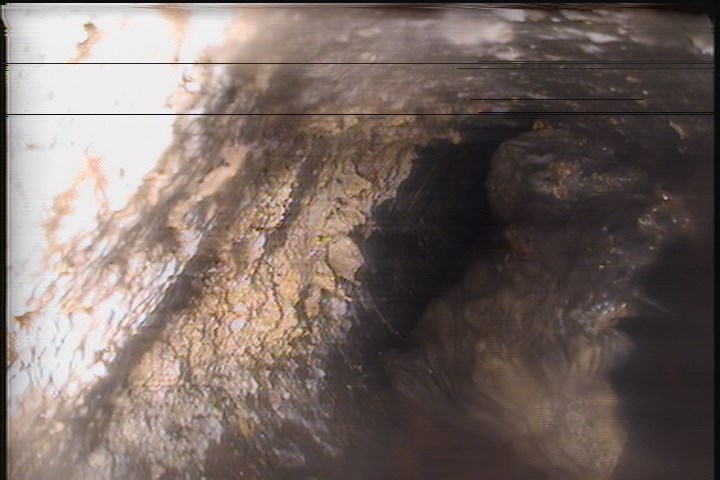

  • Deposits Attached Grease, 75 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

    2.1 ft. - Deposits Attached Grease, 75 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

All inspections of P26256Work order 0619237

Observations (6)

DistanceCodeObservation
2.1MGP—
0MWL—
0AMH10:56AM
0MWM—
2.1DAGS—
2.1MSAOBSTRUCTION, FROM 9 TO 3 OCLOCK, 75 %

Properties (3)

custom_field_two
5
customer
LACSD
datetime
2017-01-20T10:52:56-08:00
