Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 25, 2017, 04:08 PM

  • 01 0356_01 0355_1252017_081533.mp4

Date
01/25/2017
W/O
0613369
Weather
Heavy Rain
Operator/Surveyor
FRANKLIN
Sewer ID
Z00215
PipeID
P00830
Time
8:08 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7315
Sewer Name
01 NADEAU TRUNK, SECTS 2&1
City
SOUTH L.A.
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20170120DF_NADEAU_TRUNK_SECTS_1_AND_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
01 0356
Downstream MH
01 0355
Dir. of Survey
Downstream
Length Surveyed
209.9 ft.
Total Length
209.9 ft.
Structural Index
4
Structural Quick
5341
Structural Rating
27
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
27
Pipe schematic from manhole 01 0356 to 01 0355
MH: 01 0356MH: 01 0355downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 8:11 AM2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start47.6 ft. B - Broken, from 02 to 04 o'clock, within 8 inches of joint: YES88.6 ft. B - Broken, from 03 to 04 o'clock, within 8 inches of joint: YES168.9 ft. B - Broken, from 07 to 01 o'clock, within 8 inches of joint: YES194.2 ft. B - Broken, from 11 to 02 o'clock, within 8 inches of joint: YES208.1 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish208.1 ft. SAVC - Surface Aggregate Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish208.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish209.8 ft. MGO - General Observation - ROACHES @ MH209.8 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH209.9 ft. AMH - Downstream Manhole, Survey Ends - 8:49 AM

Observation photos (4)

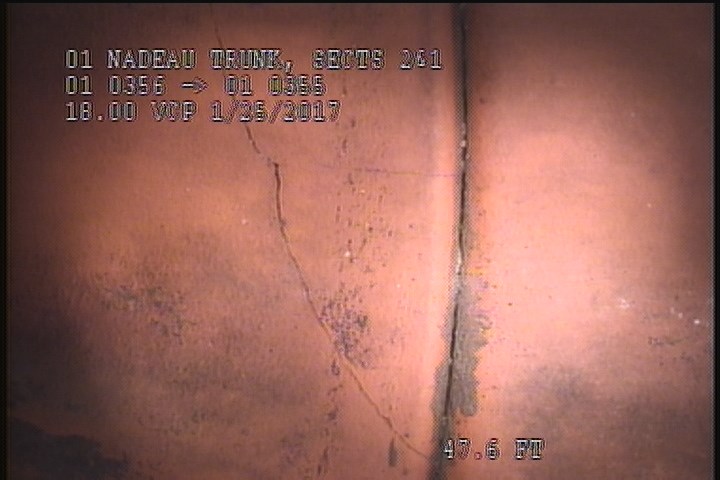

  • Broken, from 02 to 04 o'clock, within 8 inches of joint: YES

    47.6 ft. - Broken, from 02 to 04 o'clock, within 8 inches of joint: YES

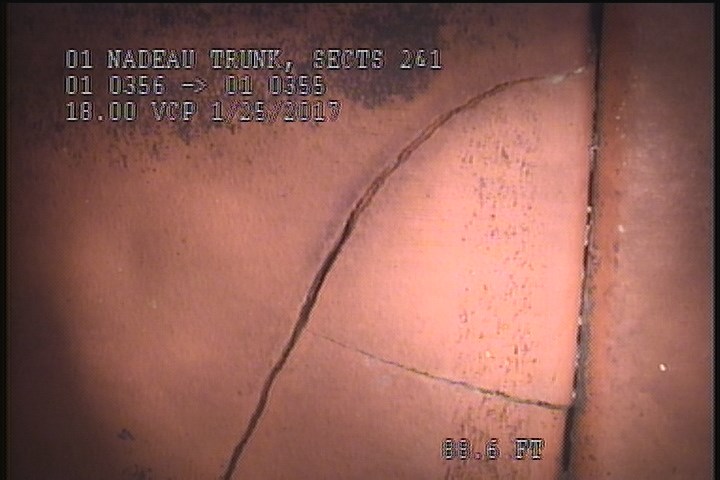

  • Broken, from 03 to 04 o'clock, within 8 inches of joint: YES

    88.6 ft. - Broken, from 03 to 04 o'clock, within 8 inches of joint: YES

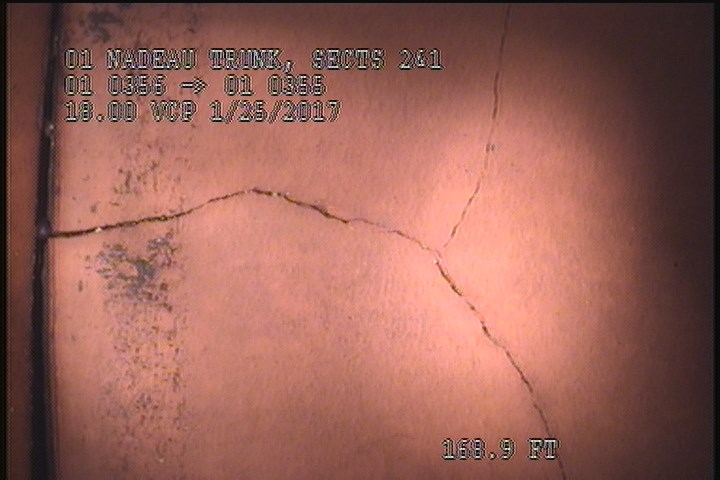

  • Broken, from 07 to 01 o'clock, within 8 inches of joint: YES

    168.9 ft. - Broken, from 07 to 01 o'clock, within 8 inches of joint: YES

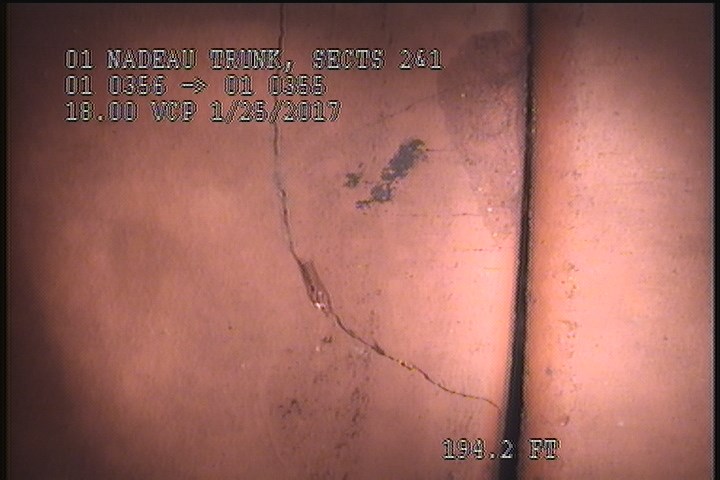

  • Broken, from 11 to 02 o'clock, within 8 inches of joint: YES

    194.2 ft. - Broken, from 11 to 02 o'clock, within 8 inches of joint: YES

All inspections of P00830Work order 0613369

Observations (18)

DistanceCodeObservation
209.8MGOROACHES @ MH
194.2B—
0MWL—
208.1SSSC—
47.6B—
2CM—
2SSSC—
209.9AMH8:49 AM
0MWM—
88.6B—
0MGOROACHES @ MH
208.1SAVC—
209.8MGOGREASE THROUGHOUT THE REACH
0MGOConn. @ Mh, 9 O' Clock. Active
2SAVC—
208.1CM—
0AMH8:11 AM
168.9B—

Properties (3)

custom_field_two
1
customer
LACSD
datetime
2017-01-25T08:08:59-08:00
