Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 20, 2017, 06:20 PM

  • 02 0358_02 0357_1202017_105418.mp4

Date
01/20/2017
W/O
0613369
Weather
Heavy Rain
Operator/Surveyor
FRANKLIN
Sewer ID
Z00215
PipeID
P00832
Time
10:20 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7314
Sewer Name
01 NADEAU TRUNK, SECTS 2&1
City
SOUTH L.A.
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20170120DF_NADEAU_TRUNK_SECTS_1_AND_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 0358
Downstream MH
02 0357
Dir. of Survey
Downstream
Length Surveyed
307.4 ft.
Total Length
307.4 ft.
Structural Index
3
Structural Quick
5341
Structural Rating
30
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
34
Pipe schematic from manhole 02 0358 to 02 0357
MH: 02 0358MH: 02 0357downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:53 AM0.1 ft. MWL - Water Level, 35 %of cross sectional area0.1 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start52 ft. MWM - Water Mark, 50 %of cross sectional area52 ft. MWL - Water Level, 45 %of cross sectional area84.1 ft. MGP - General Photograph - BROKEN PIPE84.1 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES94.7 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES201.6 ft. CS - Crack Spiral, from 08 to 04 o'clock, within 8 inches of joint: YES222 ft. B - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES222 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES262.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES303 ft. B - Broken, from 01 to 04 o'clock, within 8 inches of joint: YES307.4 ft. MGO - General Observation - ROACHES @ MH307.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish307.4 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH307.4 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish307.4 ft. AMH - Downstream Manhole, Survey Ends - 11:26 AM

Observation photos (7)

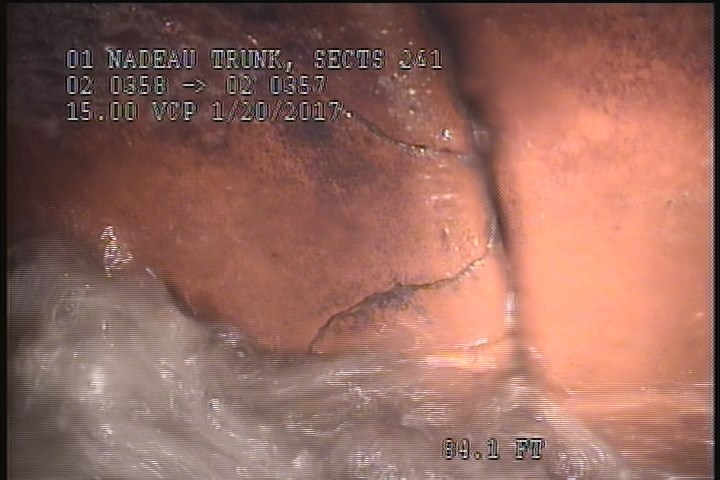

  • General Photograph - BROKEN PIPE

    84.1 ft. - General Photograph - BROKEN PIPE

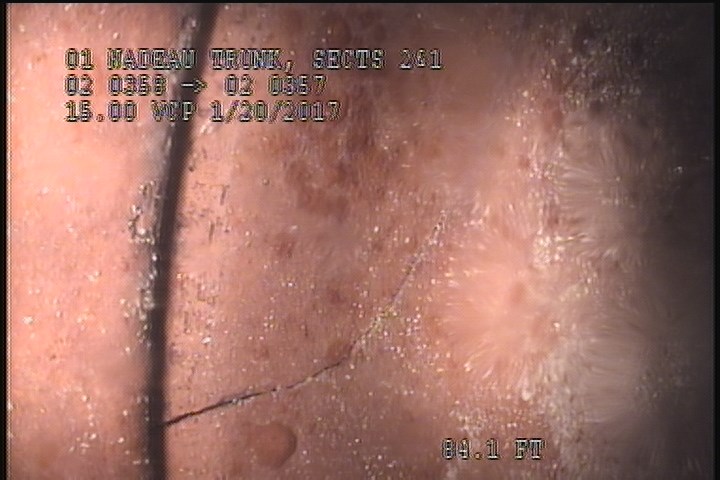

  • Broken, from 09 to 03 o'clock, within 8 inches of joint: YES

    84.1 ft. - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES

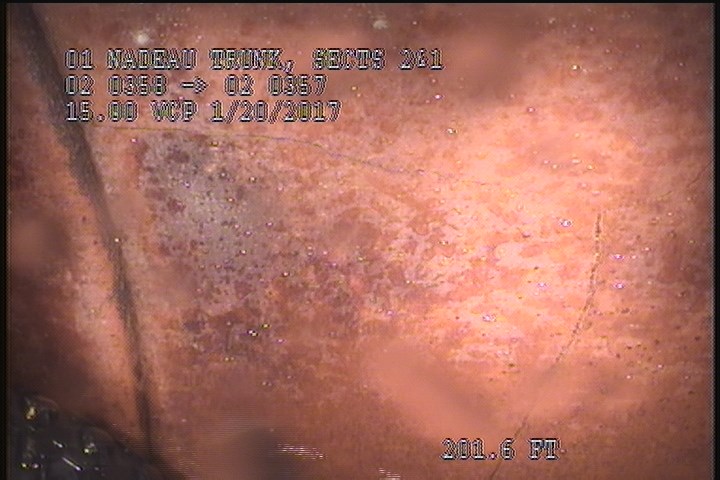

  • Crack Spiral, from 08 to 04 o'clock, within 8 inches of joint: YES

    201.6 ft. - Crack Spiral, from 08 to 04 o'clock, within 8 inches of joint: YES

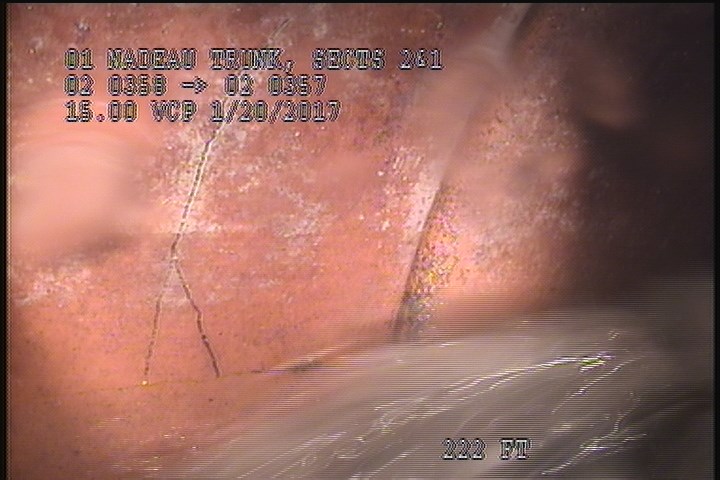

  • Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

    222 ft. - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

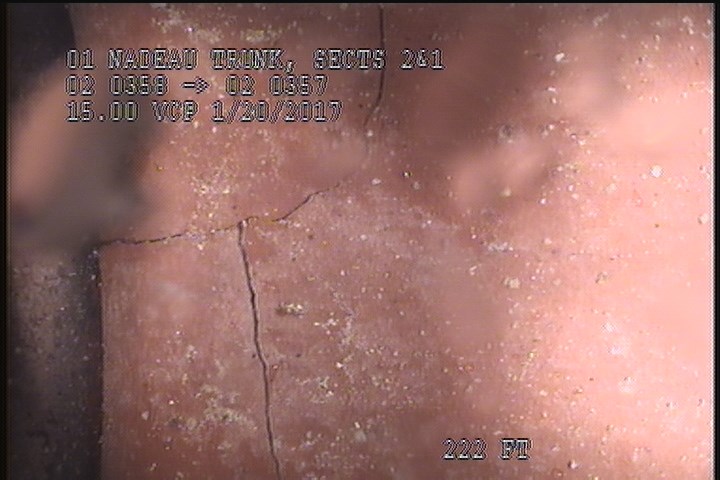

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    222 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

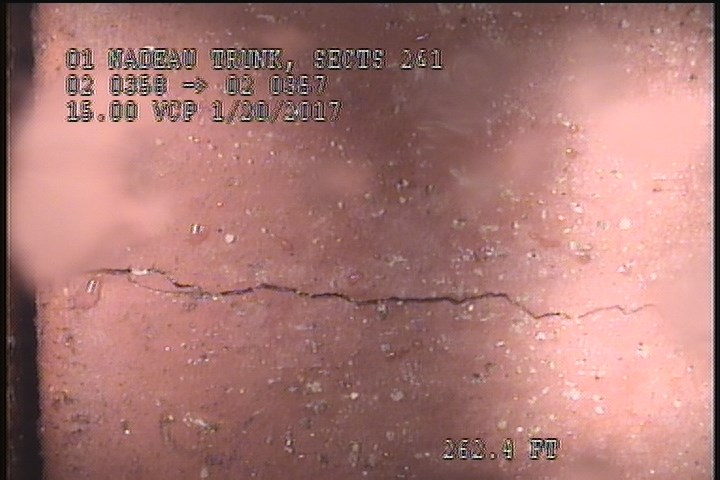

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    262.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

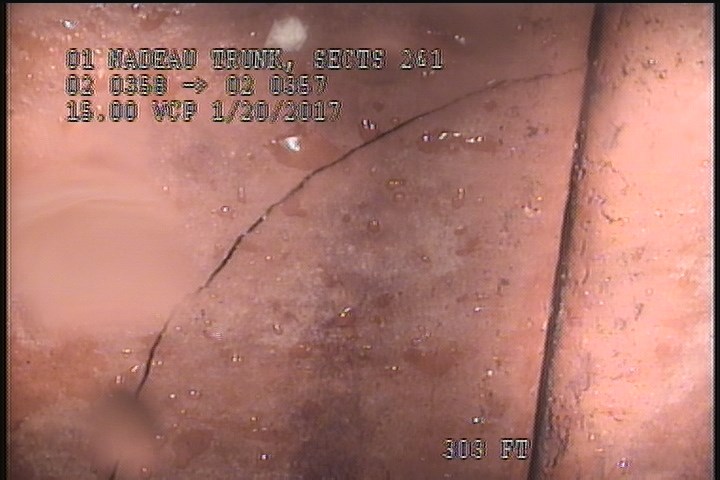

  • Broken, from 01 to 04 o'clock, within 8 inches of joint: YES

    303 ft. - Broken, from 01 to 04 o'clock, within 8 inches of joint: YES

All inspections of P00832Work order 0613369

Observations (20)

DistanceCodeObservation
52MWM—
0.1MWL—
201.6CS—
2SSSC—
222B—
307.4MGOROACHES @ MH
52MWL—
307.4CM—
0.1MWM—
84.1MGPBROKEN PIPE
84.1B—
307.4MGOGREASE THROUGHOUT THE REACH
222FM—
94.7CL—
307.4SSSC—
262.4CL—
0AMH10:53 AM
307.4AMH11:26 AM
2.1CM—
303B—

Properties (3)

custom_field_two
1
customer
LACSD
datetime
2017-01-20T10:20:02-08:00
