Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 20, 2017, 05:32 PM

  • 01 0358_01 0357_1202017_093910.mp4

Date
01/20/2017
W/O
0613369
Weather
Heavy Rain
Operator/Surveyor
FRANKLIN
Sewer ID
Z00215
PipeID
P00833
Time
9:32 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7314
Sewer Name
01 NADEAU TRUNK, SECTS 2&1
City
SOUTH L.A.
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20170120DF_NADEAU_TRUNK_SECTS_1_AND_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 0359
Downstream MH
01 0358
Dir. of Survey
Upstream
Length Surveyed
318 ft.
Total Length
318 ft.
Structural Index
4
Structural Quick
5332
Structural Rating
25
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
25
Pipe schematic from manhole 01 0359 to 01 0358
MH: 01 0359MH: 01 0358upstream0 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH0 ft. AMH - Upstream Manhole, Survey Ends - 10:17 AM0 ft. MGO - General Observation - ROACHES @ MH0.6 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish22.2 ft. B - Broken, from 10 to 05 o'clock, within 8 inches of joint: YES22.2 ft. MGP - General Photograph - BROKEN PIPE93.6 ft. B - Broken, from 07 to 04 o'clock, within 8 inches of joint: YES93.6 ft. MGP - General Photograph - BROKEN PIPE239.9 ft. CM - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES239.9 ft. B - Broken, from 07 to 01 o'clock, within 8 inches of joint: YES275.5 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES316 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start316 ft. SSSC - Surface Spalling Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start317.9 ft. MWL - Water Level, 35 %of cross sectional area317.9 ft. MWM - Water Mark, 40 %of cross sectional area318 ft. AMH - Downstream Manhole, Survey Begins - 9:36 AM

Observation photos (7)

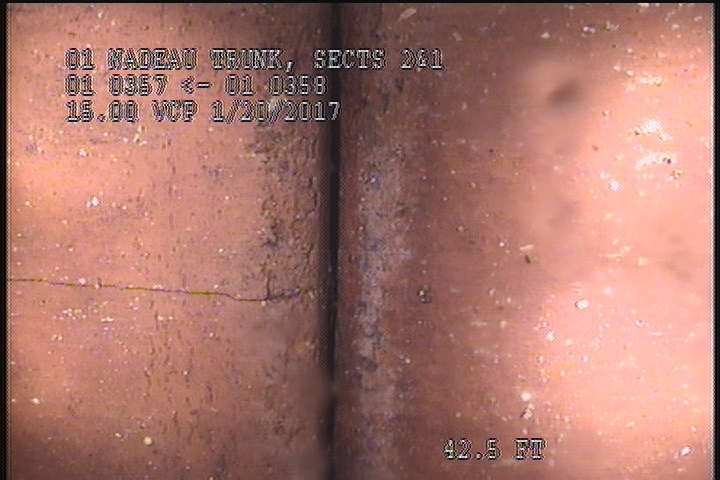

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    42.5 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

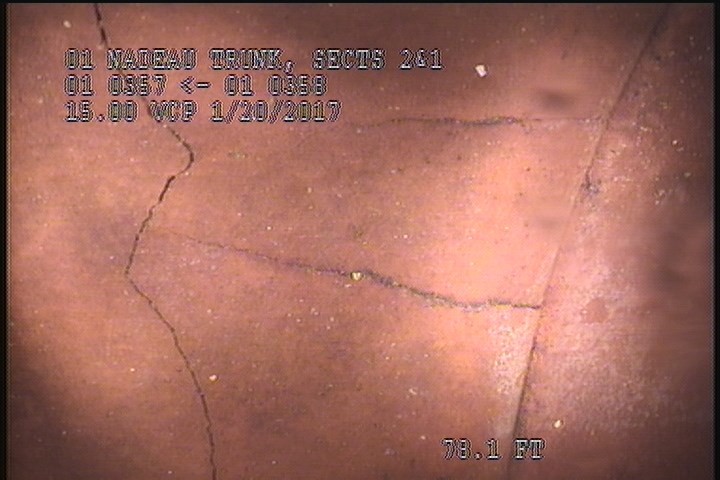

  • Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES

    78.1 ft. - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES

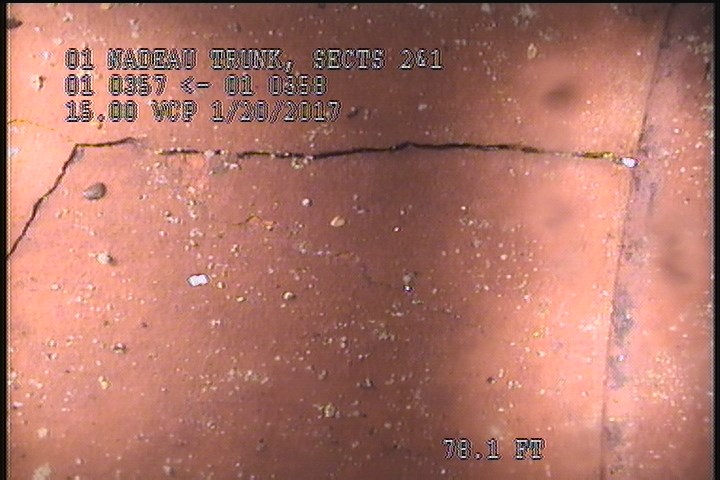

  • Broken, from 07 to 01 o'clock, within 8 inches of joint: YES

    78.1 ft. - Broken, from 07 to 01 o'clock, within 8 inches of joint: YES

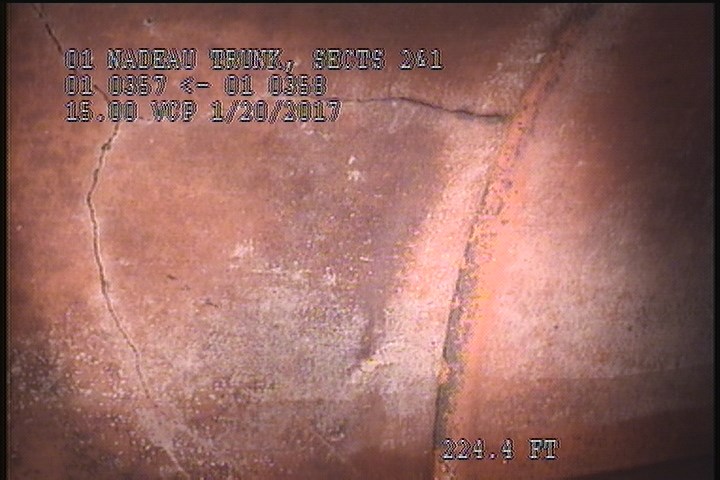

  • Broken, from 07 to 04 o'clock, within 8 inches of joint: YES

    224.4 ft. - Broken, from 07 to 04 o'clock, within 8 inches of joint: YES

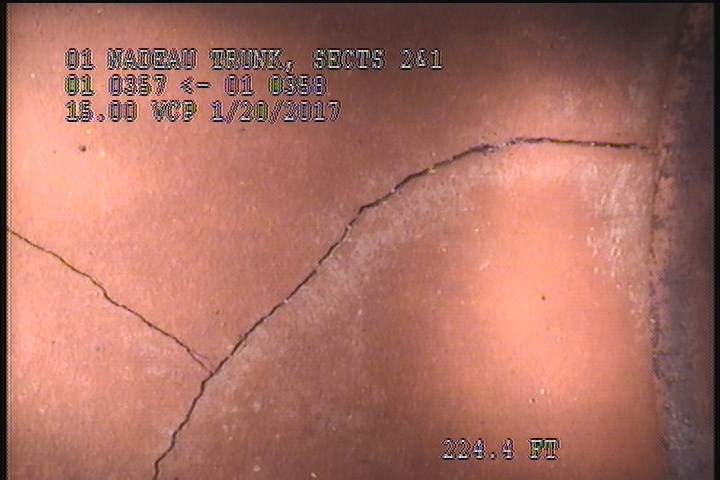

  • General Photograph - BROKEN PIPE

    224.4 ft. - General Photograph - BROKEN PIPE

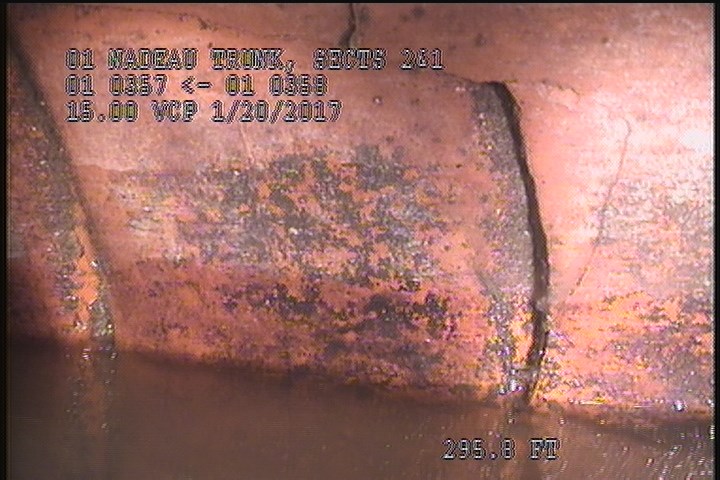

  • Broken, from 10 to 05 o'clock, within 8 inches of joint: YES

    295.8 ft. - Broken, from 10 to 05 o'clock, within 8 inches of joint: YES

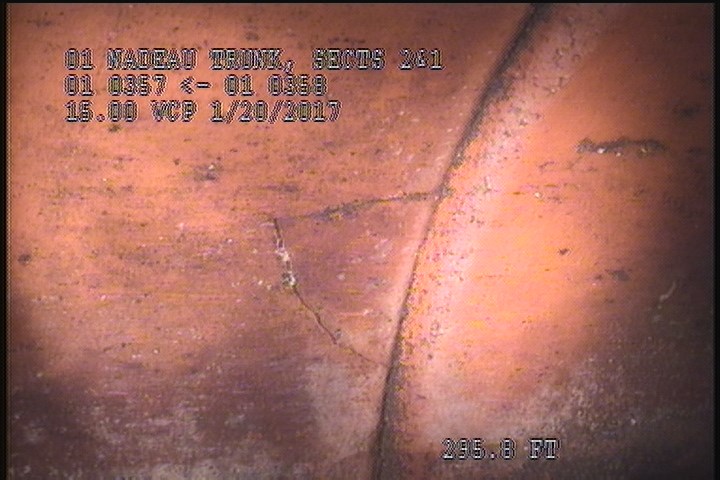

  • General Photograph - BROKEN PIPE

    295.8 ft. - General Photograph - BROKEN PIPE

All inspections of P00833Work order 0613369

Observations (17)

DistanceCodeObservation
317.4SSSC—
295.8B—
0.1MWL—
318MGOGREASE THROUGHOUT THE REACH
0AMH9:36 AM
317.4CM—
2CM—
0.1MWM—
318AMH10:17 AM
318MGOROACHES @ MH
224.4B—
78.1CM—
224.4MGPBROKEN PIPE
2SSSC—
42.5CL—
295.8MGPBROKEN PIPE
78.1B—

Properties (4)

additional_info
ON SCREEN DISPLAY HAS WRONG MH #'S. THE REACH IS MH 0358 TO MH 0359 (U/S). PAPERWORK IS CORRECT
custom_field_two
1
customer
LACSD
datetime
2017-01-20T09:32:01-08:00
