Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 17, 2017, 08:20 AM

  • 05 0676_05 0675_1172017_004257.mp4

Date
01/17/2017
W/O
0607750
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00523
PipeID
P05908
Time
12:20 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0397
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #2
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Routine Assessment
Project
20170117MDM_SOUTH_INGLEWOOD_ORANGE_AVENUE_TRUNK_EXTENSION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 0676
Downstream MH
05 0675
Dir. of Survey
Downstream
Length Surveyed
336.6 ft.
Total Length
336.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3125
O&M Rating
18
Overall Index
2
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 05 0676 to 05 0675
MH: 05 0676MH: 05 0675downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area9.7 ft. RFL - Roots Fine Lateral, from 08 to 10 o'clock - 3%9.7 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active-50% ROOTS12.8 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-90% ROOTS41.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped44.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open85.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active88.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open119.5 ft. RFL - Roots Fine Lateral, from 08 to 10 o'clock - 4%119.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active126.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped129.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open148.6 ft. MGO - General Observation - 12" VCP169.4 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped173 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open195 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open201.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open244.2 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-50%ROOTS258.6 ft. RFL - Roots Fine Lateral, from 08 to 10 o'clock - 2%261.3 ft. RFL - Roots Fine Lateral, from 02 to 04 o'clock - 3%264.4 ft. RMJ - Roots Medium Joint, from 02 to 05 o'clock, 25 %, within 8 inches of joint: YESR265.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open266.7 ft. RFJ - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR - 3%290.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open303 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-40% ROOTS336 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active336.6 ft. AMH - Downstream Manhole, Survey Ends - 1:15AM

Observation photos (2)

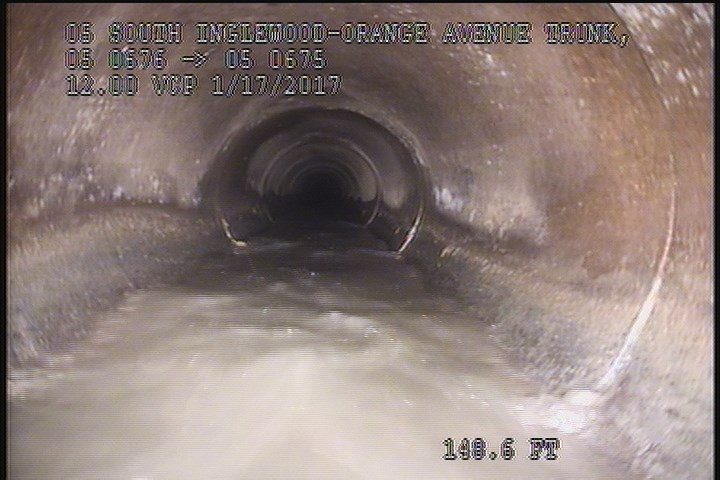

  • General Observation - 12" VCP

    148.6 ft. - General Observation - 12" VCP

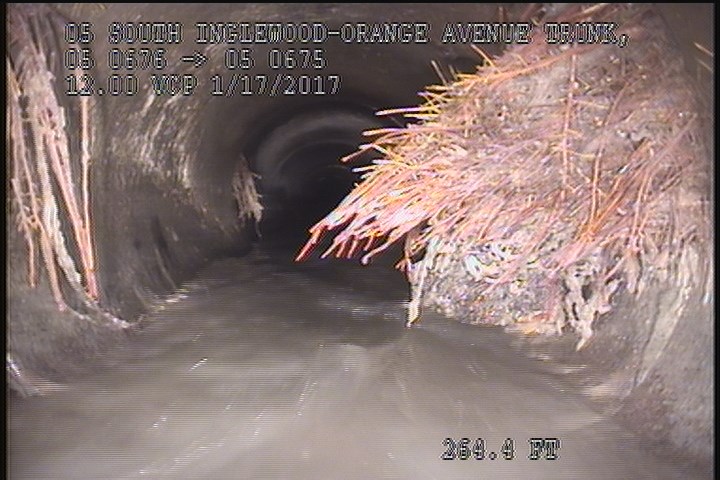

  • Roots Medium Joint, from 02 to 05 o'clock, 25 %, within 8 inches of joint: YESR

    264.4 ft. - Roots Medium Joint, from 02 to 05 o'clock, 25 %, within 8 inches of joint: YESR

All inspections of P05908Work order 0607750

Observations (29)

DistanceCodeObservation
201.2TFOpen
126.3TFCCapped
12.8TFDOpen-90% ROOTS
41.1TFCCapped
336MGOConn. @ Mh, 3 O' Clock. Active
173TFOpen
9.7RFL3%
88.7TFOpen
44.3TBOpen
265.5TFOpen
258.6RFL2%
9.7TFDActive-50% ROOTS
0AMH12:35AM
195TFOpen
290.7TFOpen
0MWM—
169.4TBCCapped
266.7RFJ3%
244.2TFDOpen-50%ROOTS
336.6AMH1:15AM
0MWL—
129.3TFOpen
85.5TFActive
261.3RFL3%
119.5RFL4%
119.5TFActive
264.4RMJ—
148.6MGO12" VCP
303TFDOpen-40% ROOTS
