Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2017, 10:56 AM

  • 05 0679_05 0678_1122017_025856.mp4

Date
01/12/2017
W/O
0607750
Weather
Heavy Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00523
PipeID
P05911
Time
2:56 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0387
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #2
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
11
Purpose
Routine Assessment
Project
20170109MDM_SOUTH_INGLEWOOD_ORANGE_AVENUE_TRUNK_EXTENSION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 0679
Downstream MH
05 0678
Dir. of Survey
Downstream
Length Surveyed
332 ft.
Total Length
332 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2A00
O&M Rating
20
Overall Index
2
Overall Quick
—
Overall Rating
26
Pipe schematic from manhole 05 0679 to 05 0678
MH: 05 0679MH: 05 0678downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:00AM0 ft. MWL - Water Level, 15 %of cross sectional area26.1 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active-25% ROOTS66.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped89 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open107.7 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-90% ROOTS135.8 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-90% ROOTS154.4 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-90% ROOTS176.4 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-90% ROOTS188.8 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-60% ROOTS191.8 ft. MGO - General Observation - 12" VCP191.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open234.7 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - HAIRLINE240.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE244 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H248.4 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-70% ROOTS251.6 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-40% ROOTS296.6 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE-80% ROOTS301.4 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-30% ROOTS326.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped332 ft. AMH - Downstream Manhole, Survey Ends - 3:30AM

Observation photos (2)

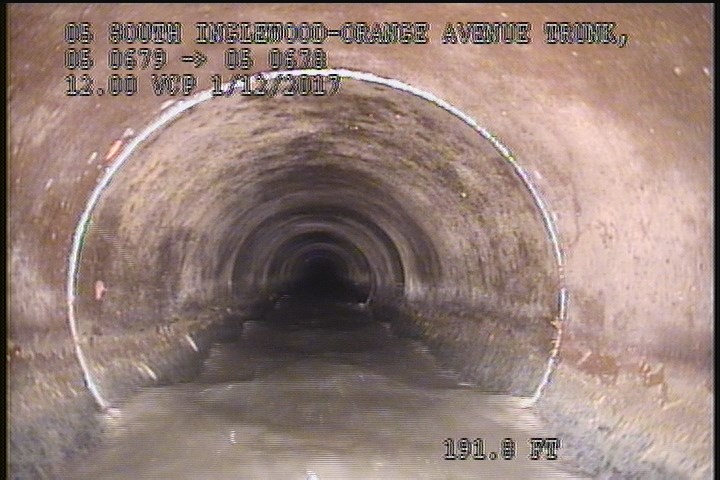

  • General Observation - 12" VCP

    191.8 ft. - General Observation - 12" VCP

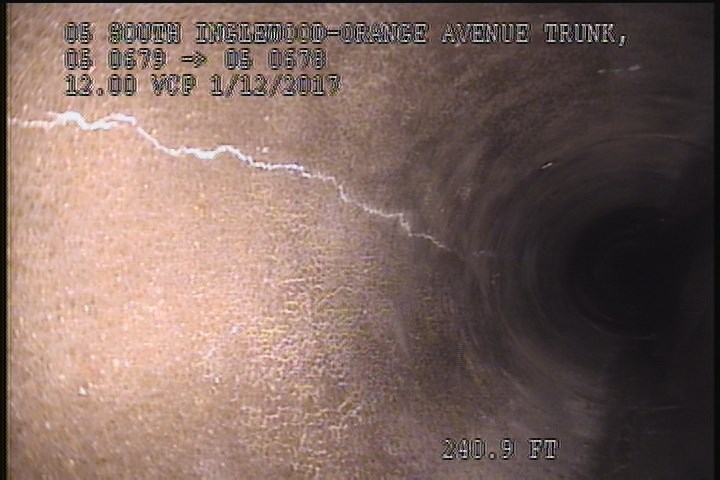

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    240.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

All inspections of P05911Work order 0607750

Observations (22)

DistanceCodeObservation
135.8TFDOpen-90% ROOTS
66.7TFCCapped
248.4TFDOpen-70% ROOTS
0MWM—
244FLH
301.4TFDOpen-30% ROOTS
251.6TFDOpen-40% ROOTS
0AMH3:00AM
26.1TFDActive-25% ROOTS
107.7TFDOpen-90% ROOTS
296.6TFDACTIVE-80% ROOTS
234.7FLHAIRLINE
240.9FLHAIRLINE
332AMH3:30AM
191.8MGO12" VCP
326.8TFCCapped
191.8TFOpen
154.4TFDOpen-90% ROOTS
0MWL—
188.8TFDOpen-60% ROOTS
176.4TFDOpen-90% ROOTS
89TFOpen

Properties (4)

custom_field_three
HAIRLINE JOINT TO JOINT
custom_field_two
3
customer
LACSD
datetime
2017-01-12T02:56:35-08:00
