Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2017, 12:05 PM

  • 05 0677_05 0676_1122017_040751.mp4

Date
01/12/2017
W/O
0607750
Weather
Heavy Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00523
PipeID
P05909
Time
4:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0387
Sewer Name
05 SOUTH INGLEWOOD-ORANGE AVENUE TRUNK, EXTENSION #2
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
11
Purpose
Routine Assessment
Project
20170109MDM_SOUTH_INGLEWOOD_ORANGE_AVENUE_TRUNK_EXTENSION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 0677
Downstream MH
05 0676
Dir. of Survey
Downstream
Length Surveyed
341.8 ft.
Total Length
341.8 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
1
O&M Quick
2214
O&M Rating
8
Overall Index
1
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 05 0677 to 05 0676
MH: 05 0677MH: 05 0676downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM12.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped15.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open19.8 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%33.2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES47.8 ft. RFJ - Roots Fine Joint, from 07 to 09 o'clock, within 8 inches of joint: YESR - 3%58.5 ft. RFL - Roots Fine Lateral, from 08 to 10 o'clock - 4%58.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open61.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open103.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active108 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open-25% ROOTS110 ft. RFJ - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR - 2%132.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active138.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open182.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active186.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open212.9 ft. MGO - General Observation - 12" VCP223.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active229.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active267.5 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open-50% ROOTS270.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open301.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped305 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active341.8 ft. AMH - Downstream Manhole, Survey Ends - 4:45AM

Observation photos (2)

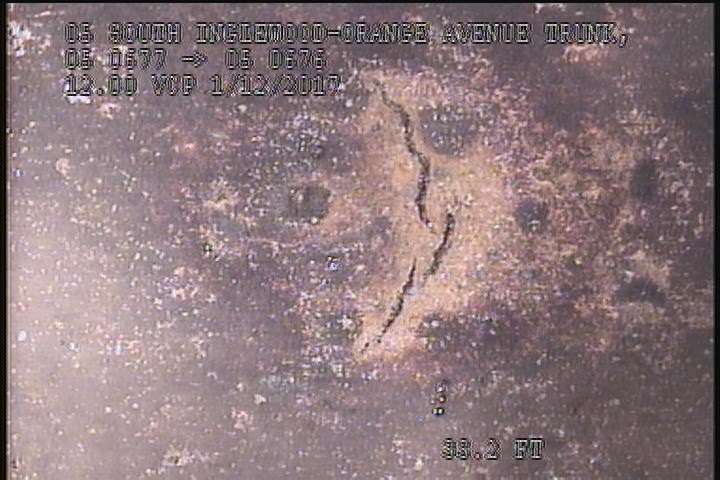

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES

    33.2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES

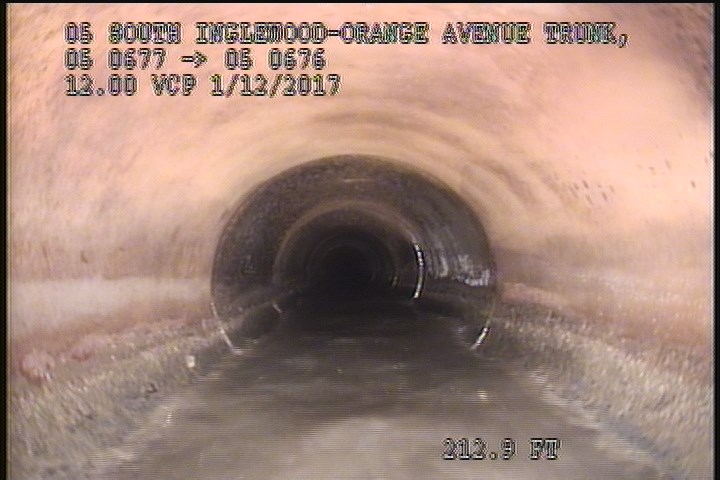

  • General Observation - 12" VCP

    212.9 ft. - General Observation - 12" VCP

All inspections of P05909Work order 0607750

Observations (26)

DistanceCodeObservation
270.1TFOpen
33.2SSS—
0MWL—
61.4TFOpen
186.2TFOpen
58.5RFL4%
15.1TFOpen
341.8AMH4:45AM
223.2TFActive
305TFActive
0MWM—
212.9MGO12" VCP
182.9TFActive
47.8RFJ3%
138.9TFOpen
267.5TFDOpen-50% ROOTS
0AMH4:15AM
103.9TFActive
108TFDOpen-25% ROOTS
19.8RFJ4%
12.2TFCCapped
229.5TFActive
301.7TFCCapped
58.5TFOpen
132.9TFActive
110RFJ2%
