Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2017, 08:40 PM

  • 05 2152_05 2151A_192017_130243.mp4

Date
01/09/2017
W/O
0607782
Weather
Saturated
Operator/Surveyor
MIRANDA
Sewer ID
Z00479
PipeID
P07293
Time
12:40 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7306
Sewer Name
05 MADISON STREET TRUNK
City
TORRANCE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
35
Purpose
Capital Improvement Program Assesment
Project
20170109AM_MADISON_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 2152
Downstream MH
05 2151A
Dir. of Survey
Downstream
Length Surveyed
93.4 ft.
Total Length
93.4 ft.
Structural Index
3
Structural Quick
5224
Structural Rating
19
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 05 2152 to 05 2151A
MH: 05 2152MH: 05 2151Adownstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:53 PM0 ft. MGO - General Observation - CAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK4.1 ft. B - Broken, from 12 to 12 o'clock, within 8 inches of joint: NO7.5 ft. JSM - Joint Separated Medium8.9 ft. JSL - Joint Separated Large15.4 ft. JSL - Joint Separated Large29.3 ft. JSL - Joint Separated Large87.4 ft. JSL - Joint Separated Large - SEVERE87.4 ft. MGO - General Observation - CHIPPING89.6 ft. MGO - General Observation - BROKEN89.6 ft. B - Broken, from 12 to 12 o'clock, within 8 inches of joint: NO91.9 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH91.9 ft. MGO - General Observation - SEPARATED/OFFSET JOINTS THROUGHOUT THE REACH92 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK93.4 ft. AMH - Downstream Manhole, Survey Ends - 1:18 PM

Observation photos (9)

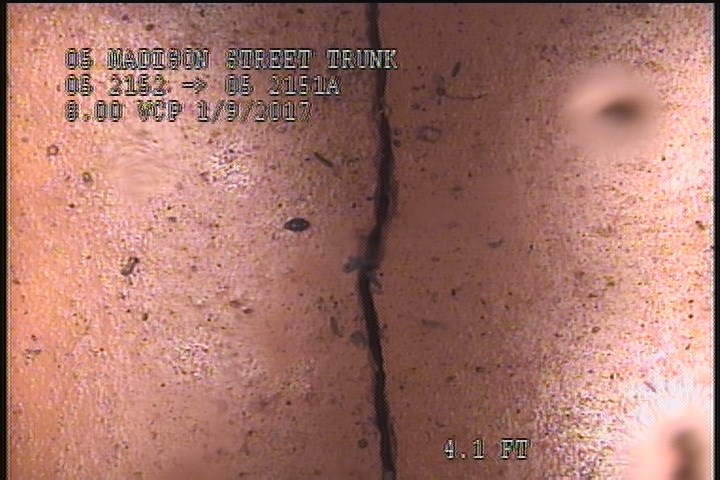

  • Broken, from 12 to 12 o'clock, within 8 inches of joint: NO

    4.1 ft. - Broken, from 12 to 12 o'clock, within 8 inches of joint: NO

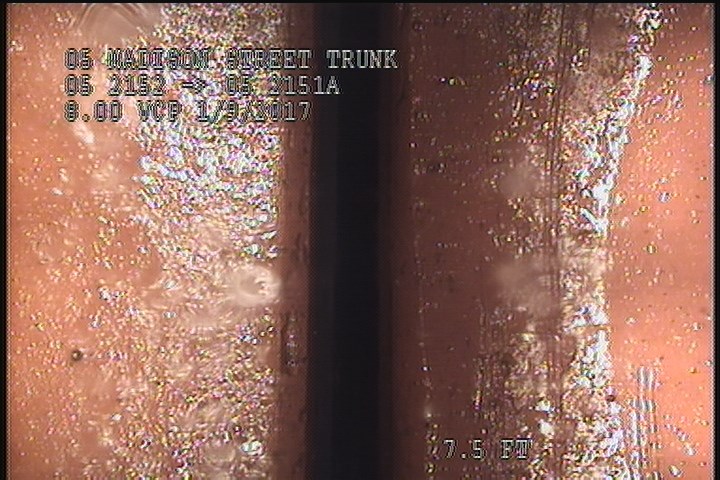

  • Joint Separated Medium

    7.5 ft. - Joint Separated Medium

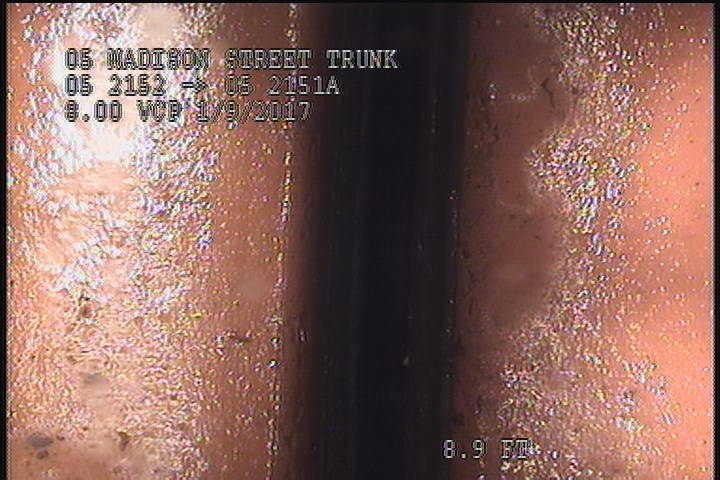

  • Joint Separated Large

    8.9 ft. - Joint Separated Large

  • Joint Separated Large

    15.4 ft. - Joint Separated Large

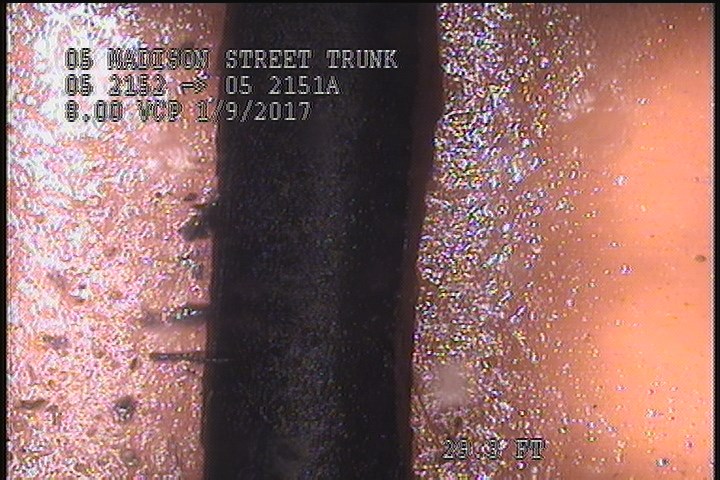

  • Joint Separated Large

    29.3 ft. - Joint Separated Large

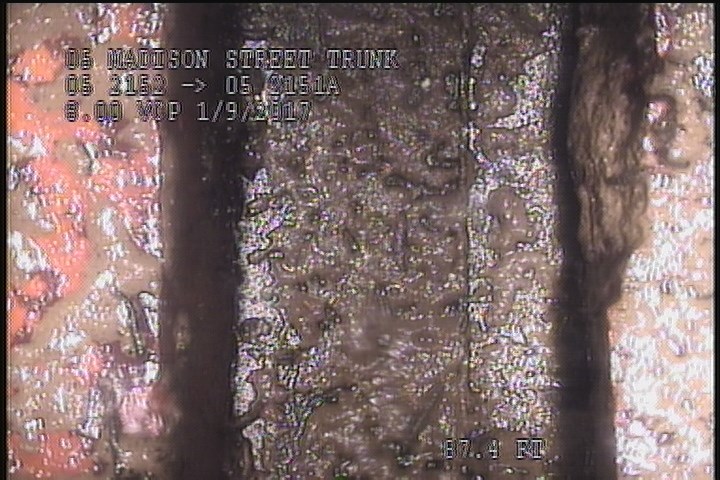

  • Joint Separated Large - SEVERE

    87.4 ft. - Joint Separated Large - SEVERE

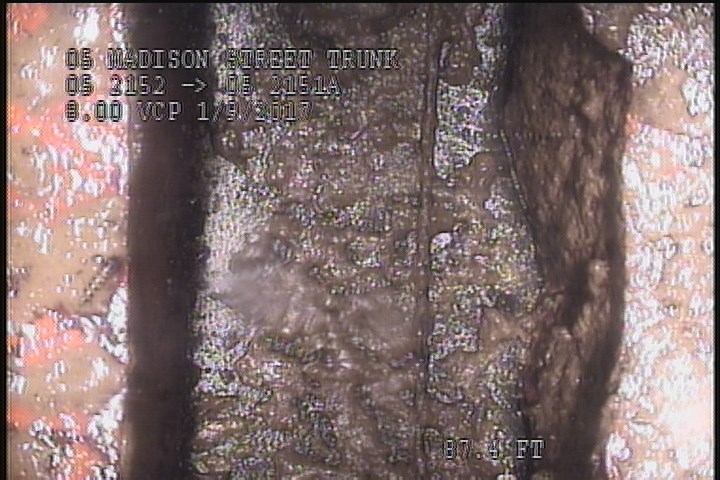

  • General Observation - CHIPPING

    87.4 ft. - General Observation - CHIPPING

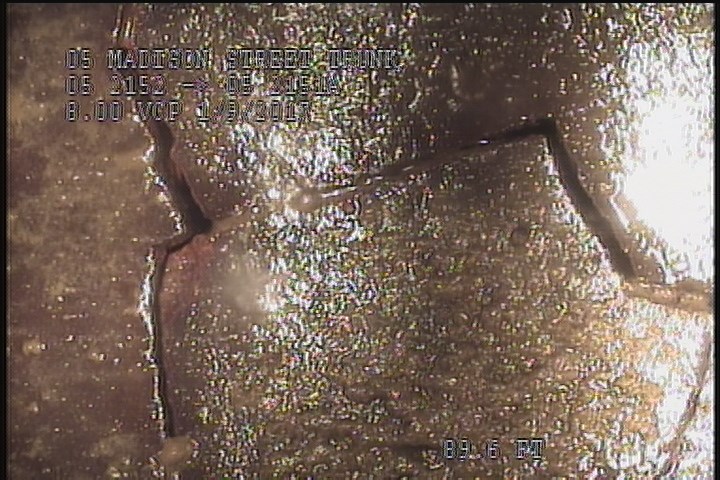

  • General Observation - BROKEN

    89.6 ft. - General Observation - BROKEN

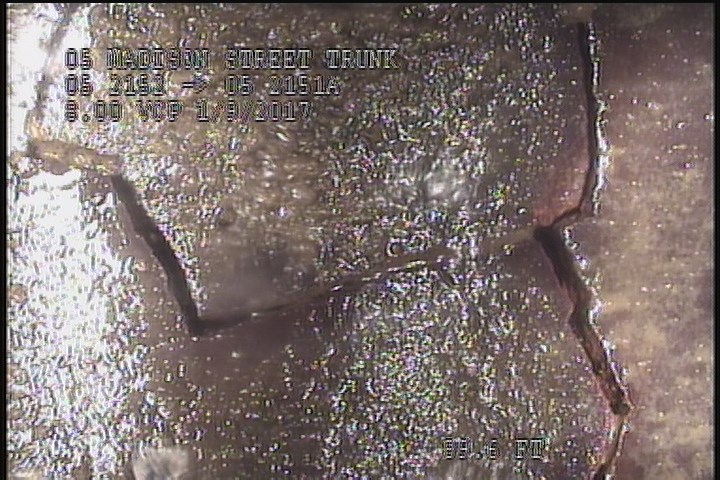

  • Broken, from 12 to 12 o'clock, within 8 inches of joint: NO

    89.6 ft. - Broken, from 12 to 12 o'clock, within 8 inches of joint: NO

All inspections of P07293Work order 0607782

Observations (17)

DistanceCodeObservation
0MWL—
7.5JSM—
4.1B—
89.6MGOBROKEN
91.9MGOSLIGHT GREASE THROUGHOUT THE REACH
0MWM—
8.9JSL—
87.4JSLSEVERE
87.4MGOCHIPPING
0AMH12:53 PM
91.9MGOSEPARATED/OFFSET JOINTS THROUGHOUT THE REACH
92MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
89.6B—
29.3JSL—
0MGOCAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK
15.4JSL—
93.4AMH1:18 PM

Properties (5)

additional_info
RFIR INSPECTION
custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2017-01-09T12:40:07-08:00
