Wastewater/Activity/PacpInspection/1.0Jan 3, 2017, 05:45 PM
18 1068_18 1002_132017_094811.mp4
- Date
- 01/03/2017
- W/O
- 0607769
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00682
- PipeID
- P14926
- Time
- 9:45 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7304
- Sewer Name
- 18 LA HABRA HEIGHTS TRUNK, SECTION 5
- City
- LA HABRA HEIGHTS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 22
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170103MI_LA_HABRA_HEIGHTS_TRUNK_SECTION_5
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 18 1068
- Downstream MH
- 18 1002
- Dir. of Survey
- Downstream
- Length Surveyed
- 16.4 ft.
- Total Length
- 16.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

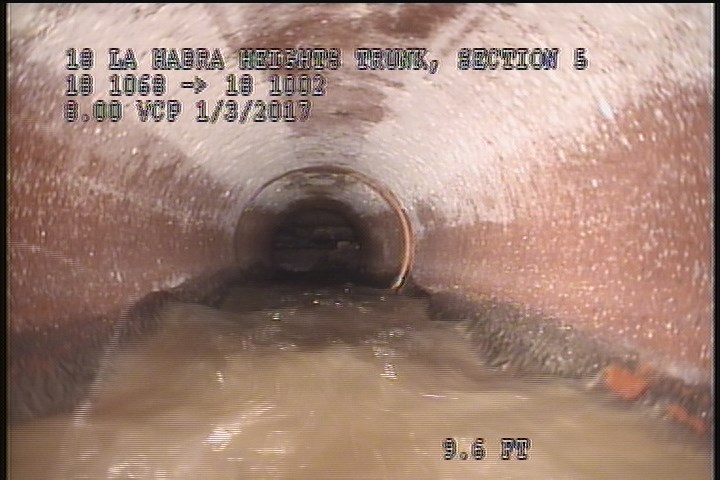

9.6 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

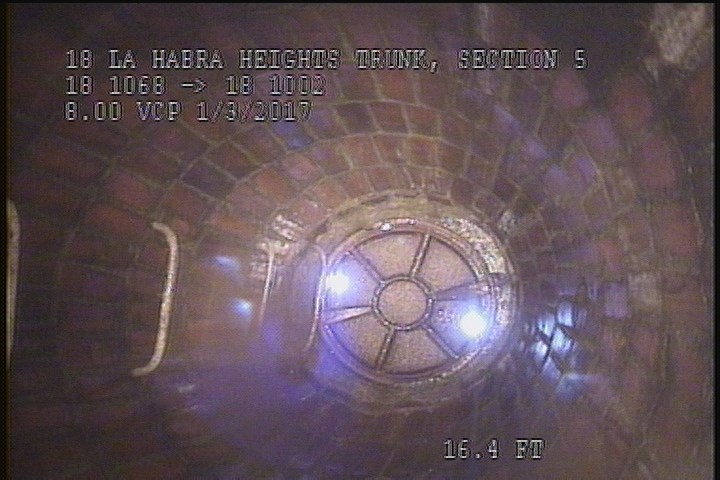

16.4 ft. - Downstream Manhole, Survey Ends - 10:00AM
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 16.4 | AMH | 10:00AM |
| 0 | MWL | — |
| 16.4 | MGO | CONNECTION AT MH, 3 OCLOCK, UNKOWN |
| 0 | MWM | — |
| 14.2 | DAGS | — |
| 0 | AMH | 09:45AM |
| 0 | MGO | CONNECTION AT MH, 9 OCLOCK, ACTIVE |
| 9.6 | DAE | — |
Properties (4)
- additional_info
- RFIR INSPECTION ONLY
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-03T09:45:00-08:00
