Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2017, 06:49 PM

  • 18 1057_18 1056_132017_112507.mp4

  • 18 1057_18 1056_132017_113900.mp4

Date
01/03/2017
W/O
0607770
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00680
PipeID
P14912
Time
10:49 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7304
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 3
City
LA HABRA HEIGHTS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20170103MI_LA_HABRA_HEIGHTS_TRUNK_SECTION_3
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
18 1057
Downstream MH
18 1056
Dir. of Survey
Downstream
Length Surveyed
248.8 ft.
Total Length
248.8 ft.
Structural Index
4
Structural Quick
5231
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 18 1057 to 18 1056
MH: 18 1057MH: 18 1056downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:30AM0 ft. MWM - Water Mark, 10 %of cross sectional area7.1 ft. MGO - General Observation - CHIPPING AT JOINT AT 9 TO 12 OCLOCK22.5 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 6"76 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES77 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"125.4 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"176.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"210.9 ft. B - Broken, from 01 to 05 o'clock, within 8 inches of joint: YES225 ft. B - Broken, from 09 to 03 o'clock, within 8 inches of joint: YES225.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"247 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH, 5 TO 7 OCLOCK, 5 %248.8 ft. AMH - Downstream Manhole, Survey Ends - 11:53AM

Observation photos (5)

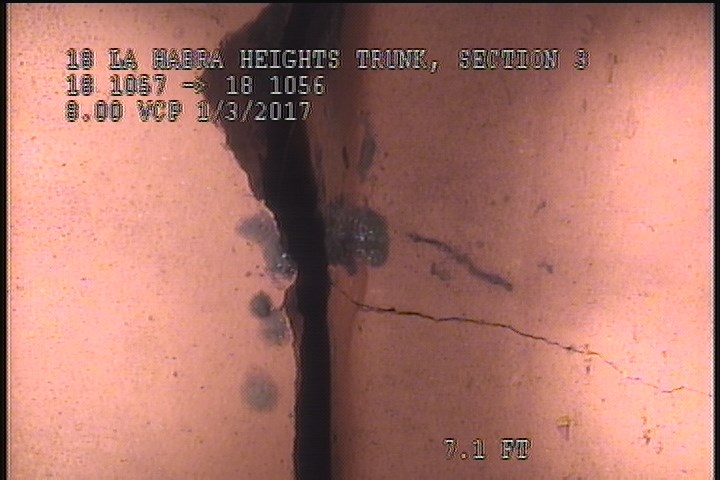

  • General Observation - CHIPPING AT JOINT AT 9 TO 12 OCLOCK

    7.1 ft. - General Observation - CHIPPING AT JOINT AT 9 TO 12 OCLOCK

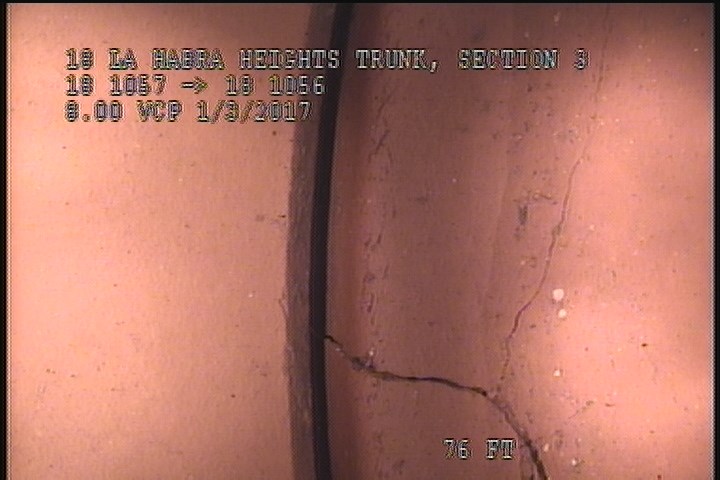

  • Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    76 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

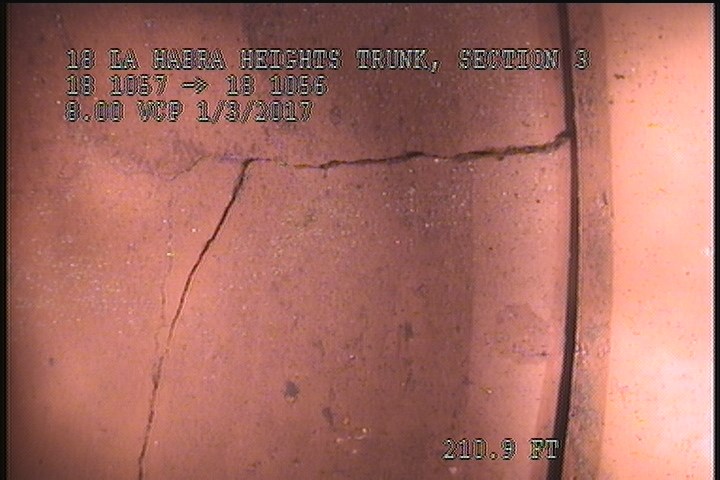

  • Broken, from 01 to 05 o'clock, within 8 inches of joint: YES

    210.9 ft. - Broken, from 01 to 05 o'clock, within 8 inches of joint: YES

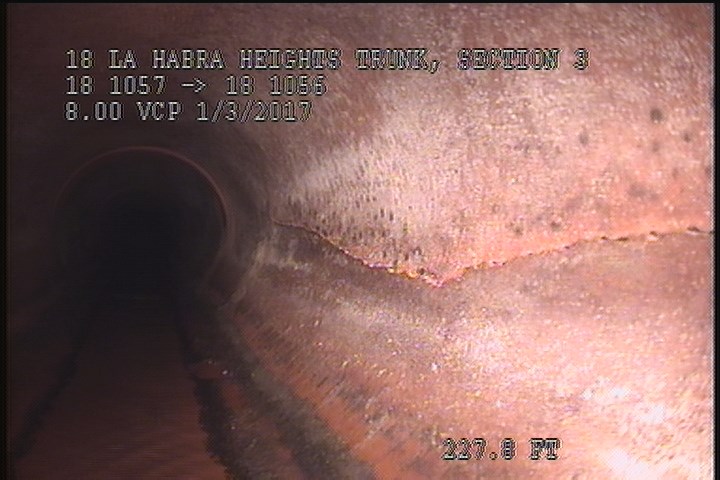

  • Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"

    225.1 ft. - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"

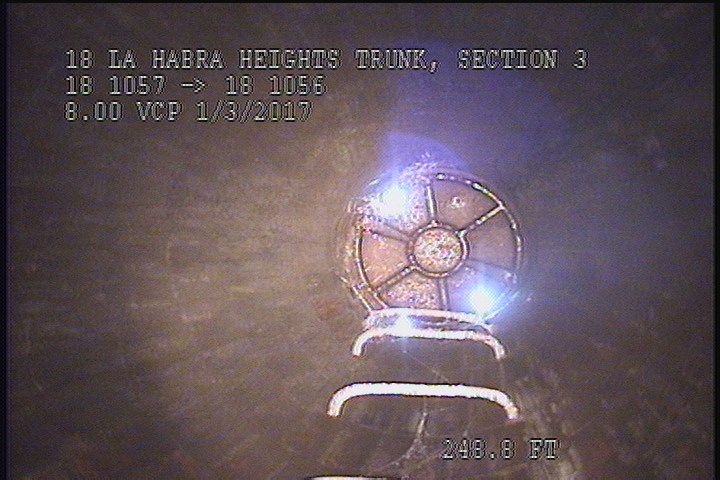

  • Downstream Manhole, Survey Ends - 11:53AM

    248.8 ft. - Downstream Manhole, Survey Ends - 11:53AM

All inspections of P14912Work order 0607770

Observations (14)

DistanceCodeObservation
7.1MGOCHIPPING AT JOINT AT 9 TO 12 OCLOCK
0MWL—
77TFC—
0AMH11:30AM
247MGOSLIGHT GREASE THROUGHOUT THE REACH, 5 TO 7 OCLOCK, 5 %
210.9B—
176.9TFC—
225B—
225.1TFC—
248.8AMH11:53AM
0MWM—
76CM—
125.4TFA—
22.5TFC—

Properties (4)

additional_info
RFIR INSPECTION ONLY
custom_field_two
2
customer
LACSD
datetime
2017-01-03T10:49:17-08:00
