Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2017, 06:23 PM

  • 18 1058_18 1057_132017_105341.mp4

Date
01/03/2017
W/O
0607770
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00680
PipeID
P14913
Time
10:23 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7304
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 3
City
LA HABRA HEIGHTS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20170103MI_LA_HABRA_HEIGHTS_TRUNK_SECTION_3
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
18 1057
Downstream MH
18 1058
Dir. of Survey
Upstream
Length Surveyed
227.4 ft.
Total Length
227.4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 18 1057 to 18 1058
MH: 18 1057MH: 18 1058upstream0 ft. MGO - General Observation - CONNECTION AT MH, 9 OCLOCK, OPEN0 ft. AMH - Upstream Manhole, Survey Ends - 11:09AM0.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES49.4 ft. TFD - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: NO, 6"100.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"151 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"169.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - Open198.4 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"216.3 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES222.3 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES227.4 ft. MWL - Water Level, 5 %of cross sectional area227.4 ft. AMH - Downstream Manhole, Survey Begins - 11:00AM227.4 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (3)

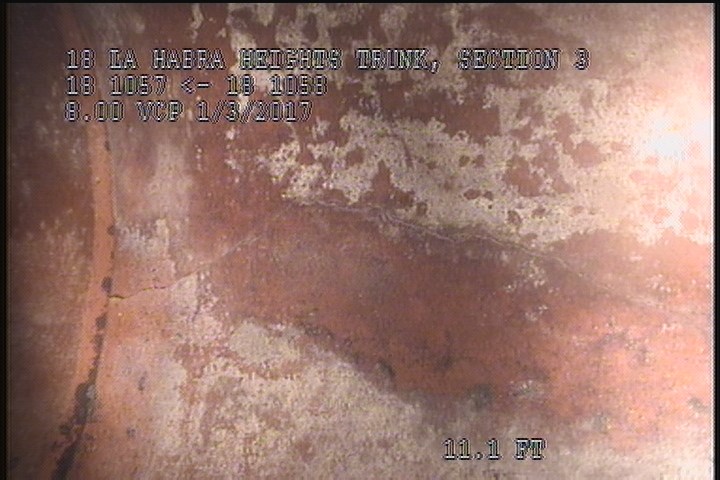

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    11.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

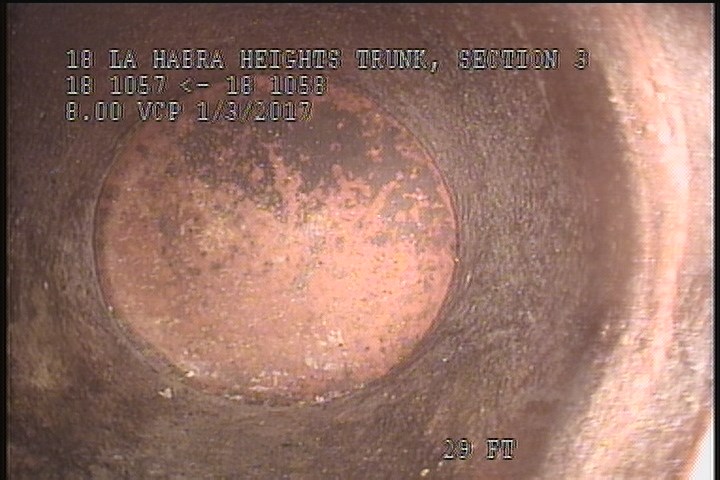

  • Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"

    29 ft. - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"

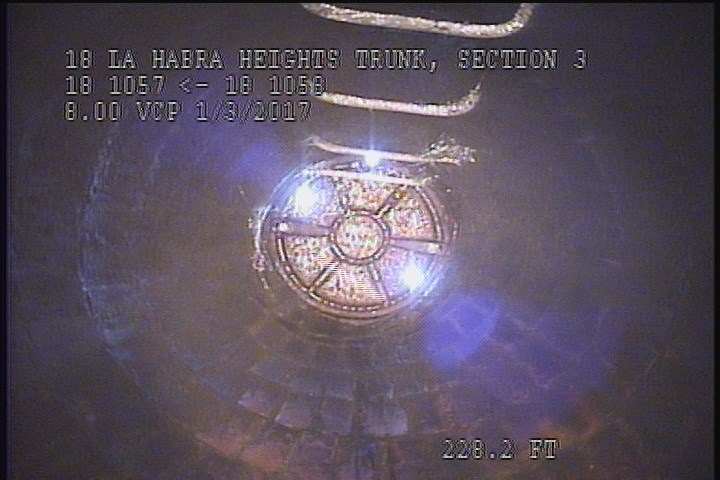

  • Upstream Manhole, Survey Ends - 11:09AM

    227.4 ft. - Upstream Manhole, Survey Ends - 11:09AM

All inspections of P14913Work order 0607770

Observations (13)

DistanceCodeObservation
29TFC—
0MWL—
127.1TFC—
226.7DAGS—
0AMH11:00AM
178TFD—
76.4TFC—
5.1CM—
227.4MGOCONNECTION AT MH, 9 OCLOCK, OPEN
11.1CL—
0MWM—
58TFOpen
227.4AMH11:09AM

Properties (4)

additional_info
RFIR INSPECTION ONLY
custom_field_two
3
customer
LACSD
datetime
2017-01-03T10:23:37-08:00
