Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2017, 08:32 AM

  • 01 0649_01 0648_152017_050514.mp4

Date
01/05/2017
W/O
0607746
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00212
PipeID
P01148
Time
12:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0383
Sewer Name
01 MOUNTAIN VIEW-BELLE VERNON TRUNK
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20170103MDM_MOUNTAIN_VIEW_BELLE_VERNON_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
01 0649
Downstream MH
01 0648
Dir. of Survey
Downstream
Length Surveyed
376.6 ft.
Total Length
376.6 ft.
Structural Index
2
Structural Quick
3327
Structural Rating
23
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole 01 0649 to 01 0648
MH: 01 0649MH: 01 0648downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:05AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area4.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT7.9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL12.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open15.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT15.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL23.4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL28.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL38.4 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS38.4 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS38.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT38.4 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS38.4 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS44.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active44.8 ft. RPZ - Repair Other, within 8 inches of joint: YES - APEARES AS METAL 12:0085.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped88.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped109.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open124.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open126.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped134.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open139.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped178.9 ft. MGO - General Observation - 15" VCP195.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open216.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN262.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open291.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open311.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open376.1 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT AT JOINTS376.1 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 20%HAIRLINE AT JOINTS376.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 30% HAIRLINE AT JOINTS376.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 30% SLIGHT AT JOINTS376.6 ft. AMH - Downstream Manhole, Survey Ends - 5:45AM

Observation photos (3)

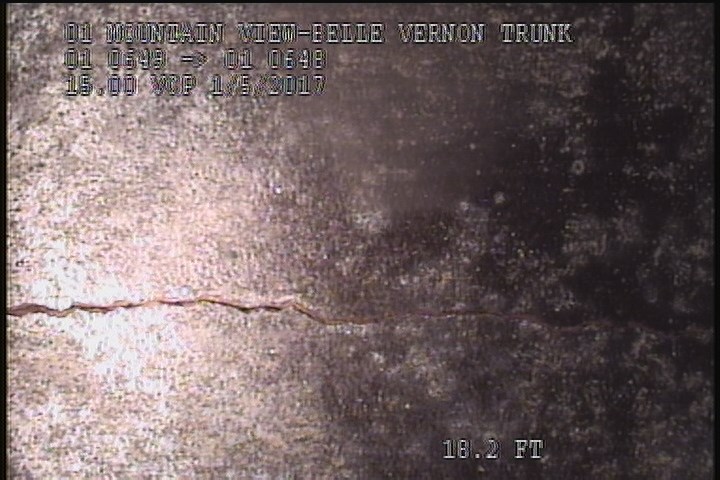

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    15.7 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

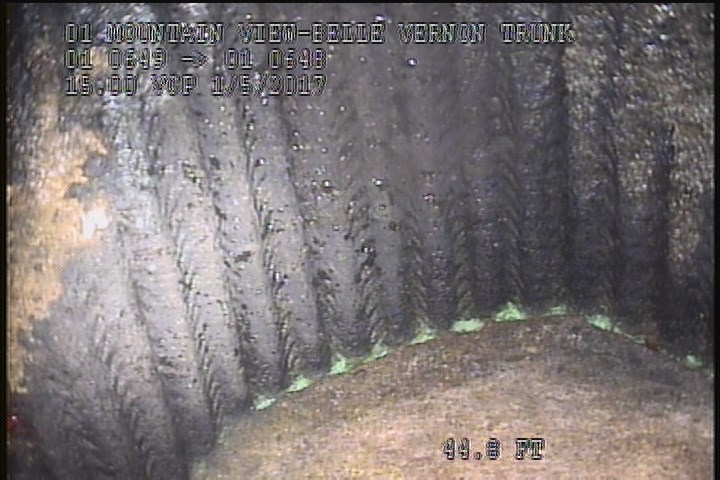

  • Repair Other, within 8 inches of joint: YES - APEARES AS METAL 12:00

    44.8 ft. - Repair Other, within 8 inches of joint: YES - APEARES AS METAL 12:00

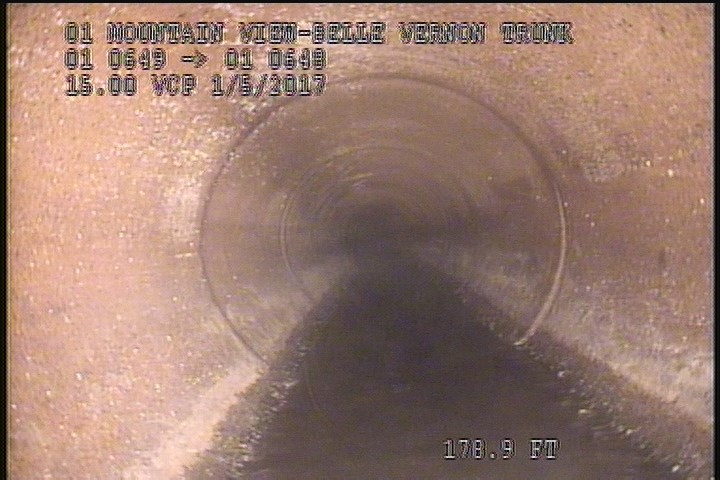

  • General Observation - 15" VCP

    178.9 ft. - General Observation - 15" VCP

All inspections of P01148Work order 0607746

Observations (36)

DistanceCodeObservation
15.7FLSLIGHT
195.8TFOpen
376.1FL20% SLIGHT AT JOINTS
38.4FCHAIRLINE AT JOINTS
15.7FCSL
38.4FLHAIRLINE AT JOINTS
0AMH5:05AM
134.8TFOpen
44.8TBActive
109.5TFOpen
124.8TBOpen
376.6AMH5:45AM
85.7TFCCapped
311.6TFOpen
4.8FCSLIGHT
262.9TFOpen
88.5TFCCapped
12.6TBOpen
291.3TFOpen
178.9MGO15" VCP
28.6FCSL
139.7TFCapped
376.1FL20%HAIRLINE AT JOINTS
44.8RPZAPEARES AS METAL 12:00
0MGOConn. @ Mh, 3 O' Clock. Active
38.4FLSLIGHT
0MWM—
0MWL—
7.9FCSL
376.1FC30% HAIRLINE AT JOINTS
38.4FCSLIGHT AT JOINTS
216.9TFOPEN
376.1FC30% SLIGHT AT JOINTS
126.6TFCCapped
38.4FLSLIGHT AT JOINTS
23.4FCSL

Properties (4)

custom_field_three
SLIGHT LONG FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2017-01-05T00:32:37-08:00
