Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2017, 08:32 AM

  • 01 0658_01 0657_132017_012415.mp4

Date
01/03/2017
W/O
0607746
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00212
PipeID
P01158
Time
12:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0375
Sewer Name
01 MOUNTAIN VIEW-BELLE VERNON TRUNK
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20170103MDM_MOUNTAIN_VIEW_BELLE_VERNON_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
01 0658
Downstream MH
01 0657
Dir. of Survey
Downstream
Length Surveyed
334.9 ft.
Total Length
334.9 ft.
Structural Index
2
Structural Quick
352D
Structural Rating
65
O&M Index
3
O&M Quick
3222
O&M Rating
10
Overall Index
2
Overall Quick
—
Overall Rating
75
Pipe schematic from manhole 01 0658 to 01 0657
MH: 01 0658MH: 01 0657downstream0 ft. MGO - General Observation - 203' DOWNSTREAM-PREVIOUS 30% ROOTS THIS LOCATION0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:40AM202.2 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active-70% R00TS202.2 ft. RML - Roots Medium Lateral, from 01 to 04 o'clock, 25 %, within 8 inches of joint: YES207.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE207.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT207.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open212.3 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H222.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL227.6 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL230.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL238.3 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H241.9 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open243.4 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL245.6 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL246.6 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active-90% ROOTS246.6 ft. RML - Roots Medium Lateral, from 01 to 04 o'clock, 15 %, within 8 inches of joint: YES253.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL262.2 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H277.2 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL282.4 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL285.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open287.3 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL288.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open290.2 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SL292.5 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start - SL294 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open295.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SL295.6 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Finish - SLIGHT303.1 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL303.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL305.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL308 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL308 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL310.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL313.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H316.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H321.2 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL321.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL326.4 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H327.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open328.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SL331.6 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H334.9 ft. AMH - Downstream Manhole, Survey Ends - 2:05AM

Observation photos (2)

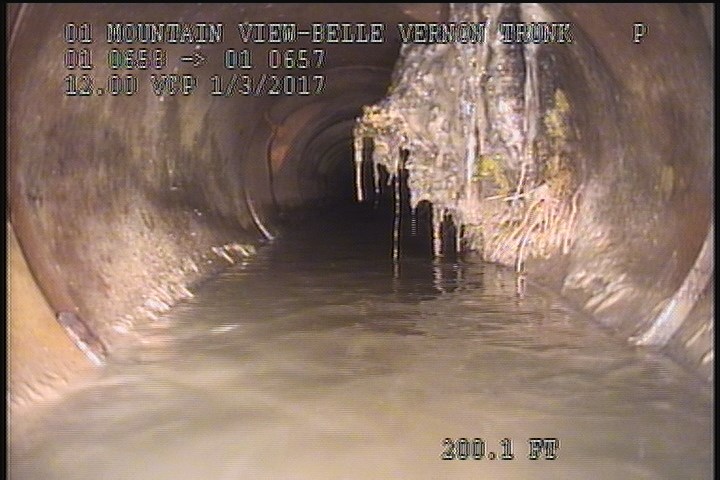

  • Roots Medium Lateral, from 01 to 04 o'clock, 25 %, within 8 inches of joint: YES

    202.2 ft. - Roots Medium Lateral, from 01 to 04 o'clock, 25 %, within 8 inches of joint: YES

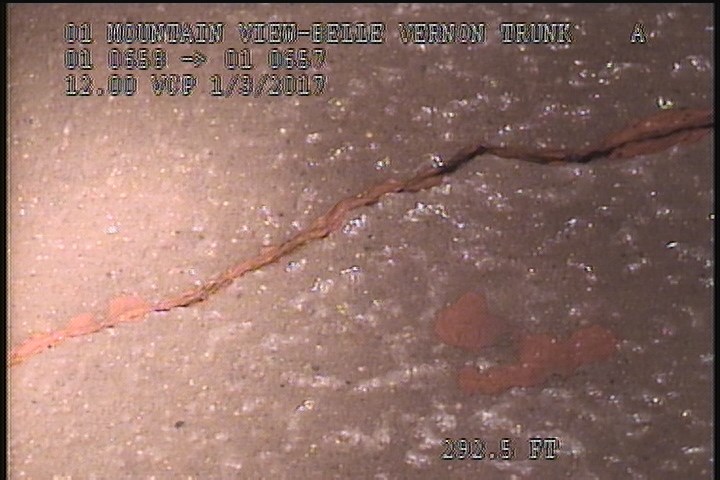

  • Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start - SL

    292.5 ft. - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES, Start - SL

All inspections of P01158Work order 0607746

Observations (46)

DistanceCodeObservation
207.1FCHAIRLINE
290.2FCSL
0MGO203' DOWNSTREAM-PREVIOUS 30% ROOTS THIS LOCATION
202.2TFDActive-70% R00TS
227.6FCSL
230.4FCSL
202.2RML—
207.1FLSLIGHT
328.8FLSL
303.1FCSL
313.3FCH
222.8FCSL
287.3FCSL
0MWL—
238.3FCH
334.9AMH2:05AM
285.7TFOpen
246.6TFDActive-90% ROOTS
246.6RML—
282.4FCSL
308FCSL
207.1TFOpen
295.6FCSL
303.1FCSL
321.2FCSL
295.6FLSLIGHT
241.9TBOpen
0MWM—
310.5FCSL
277.2FCSL
288.3TFOpen
0AMH12:40AM
331.6FCH
245.6FCSL
212.3FCH
294TBOpen
305.6FCSL
327.3TFOpen
326.4FLH
308FCSL
262.2FCH
243.4FCSL
292.5FLSL
316.1FLH
253.5FCSL
321.2FCSL

Properties (4)

custom_field_three
SLIGHT LONG FRACTURE JOINT TO JOINT
custom_field_two
2
customer
LACSD
datetime
2017-01-03T00:32:08-08:00
