Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 30, 2016, 06:21 PM

  • 18 1226_18 1198_12302016_102340.mp4

Date
12/30/2016
W/O
0607773
Weather
Light Rain
Operator/Surveyor
MIRANDA
Sewer ID
Z01143
PipeID
P25606
Time
10:21 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7302
Sewer Name
18 WORSHAM CREEK REPLACEMENT TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
11
Purpose
Capital Improvement Program Assesment
Project
20161230AM_WORSHAM_CREEK_REPLACEMENT_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
18 1226
Downstream MH
18 1198
Dir. of Survey
Downstream
Length Surveyed
225.6 ft.
Total Length
225.6 ft.
Structural Index
1
Structural Quick
1300
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
1
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 18 1226 to 18 1198
MH: 18 1226MH: 18 1198downstream0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. AMH - Upstream Manhole, Survey Begins - 10:22 AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area21.2 ft. MGO - General Observation - CHIPPING28.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN29 ft. MGO - General Observation - CHIPPING30 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"33.8 ft. MGO - General Observation - CHIPPING99.7 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN113.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN118.6 ft. JSM - Joint Separated Medium131.9 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN138.2 ft. JOM - Joint Offset Medium198.8 ft. JOM - Joint Offset Medium223.2 ft. MGO - General Observation - CHIPPING @ THE JOINTS THROUGHOUT THE REACH225.3 ft. MGO - General Observation - ROACHES INSIDE THE MH.225.3 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH225.3 ft. MGO - General Observation - UNKNOWN CONN. INSIDE THE MH. @ 03 O'CLOCK225.6 ft. AMH - Downstream Manhole, Survey Ends - 10:48 AM, PIPE DROPS INTO THE MH.

Observation photos (5)

  • General Observation - CHIPPING

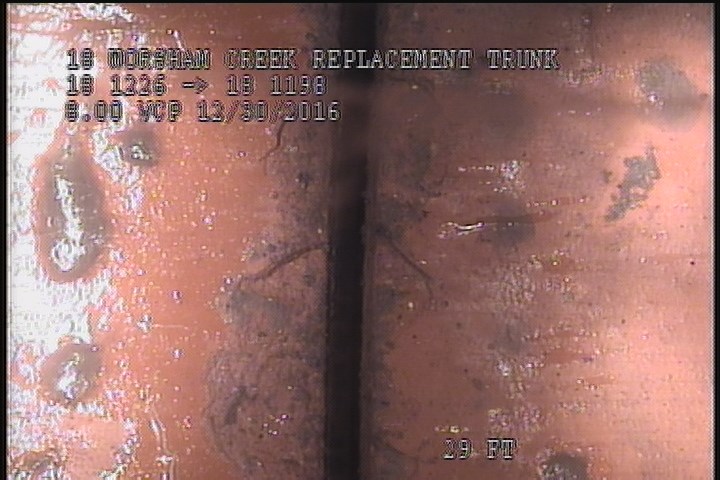

    29 ft. - General Observation - CHIPPING

  • General Observation - CHIPPING

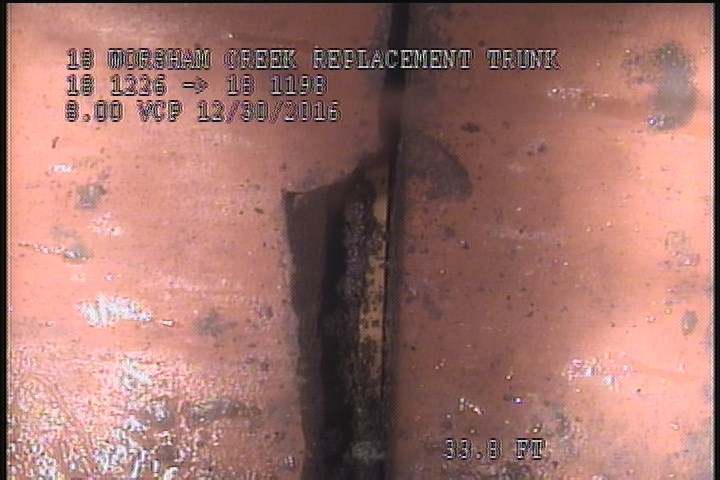

    33.8 ft. - General Observation - CHIPPING

  • Joint Separated Medium

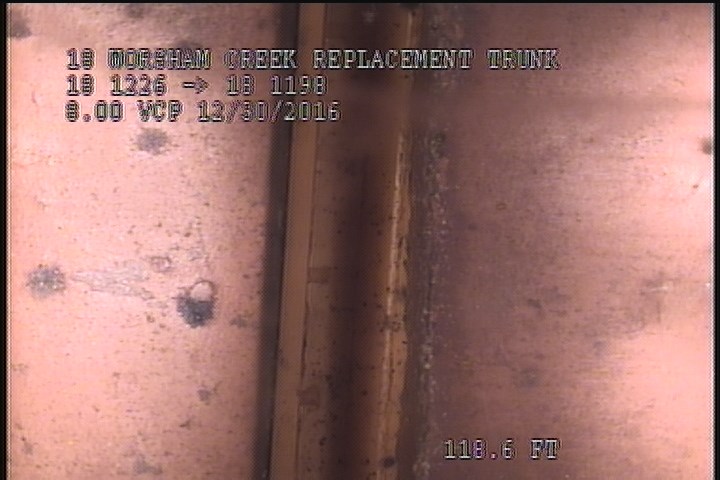

    118.6 ft. - Joint Separated Medium

  • Joint Offset Medium

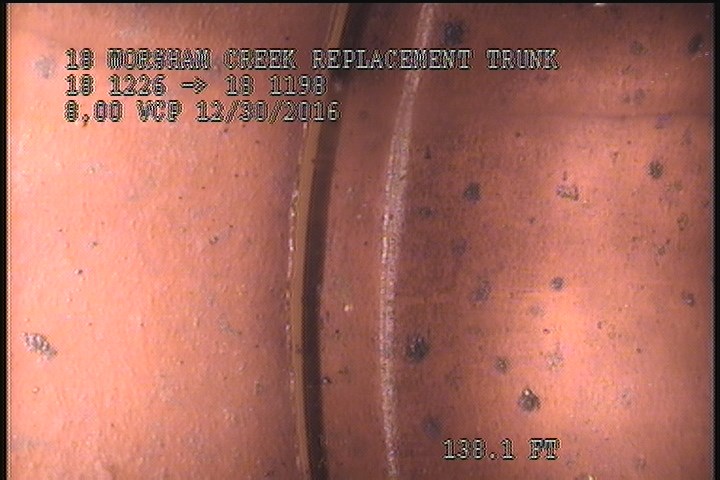

    138.2 ft. - Joint Offset Medium

  • Joint Offset Medium

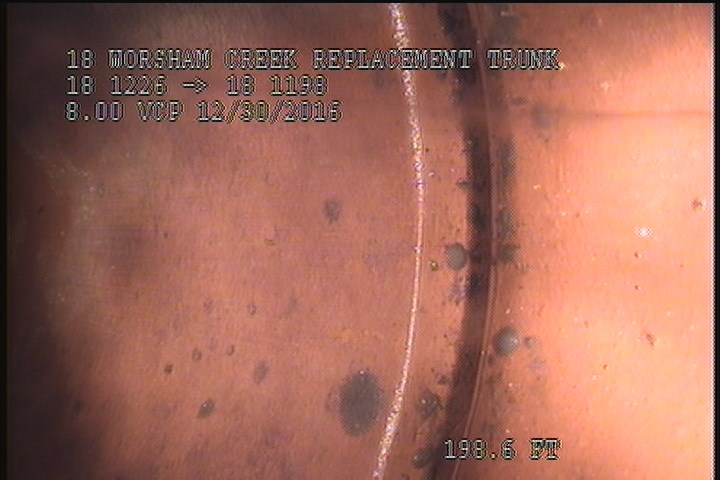

    198.8 ft. - Joint Offset Medium

All inspections of P25606Work order 0607773

Observations (20)

DistanceCodeObservation
99.7TFOPEN
29MGOCHIPPING
0MGOROACHES INSIDE THE MH.
113.2TFOPEN
21.2MGOCHIPPING
0AMH10:22 AM
223.2MGOCHIPPING @ THE JOINTS THROUGHOUT THE REACH
30TFA—
28.5TFOPEN
225.6AMH10:48 AM, PIPE DROPS INTO THE MH.
225.3MGOROACHES INSIDE THE MH.
33.8MGOCHIPPING
0MWM—
0MWL—
225.3MGOSLIGHT GREASE THROUGHOUT THE REACH
198.8JOM—
118.6JSM—
131.9TFOPEN
138.2JOM—
225.3MGOUNKNOWN CONN. INSIDE THE MH. @ 03 O'CLOCK
