Wastewater/Activity/PacpInspection/1.0Dec 29, 2016, 07:15 PM
03 0466A_03 0466_12292016_120441.mp4
- Date
- 12/29/2016
- W/O
- 0607752
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00387
- PipeID
- P20011
- Time
- 11:15 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0380
- Sewer Name
- 03 NORTH LONG BEACH TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 18
- Purpose
- Capital Improvement Program Assesment
- Project
- 20161229MI_NORTH_LONG_BEACH_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0466A
- Downstream MH
- 03 0466
- Dir. of Survey
- Downstream
- Length Surveyed
- 5 ft.
- Total Length
- 5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (4)

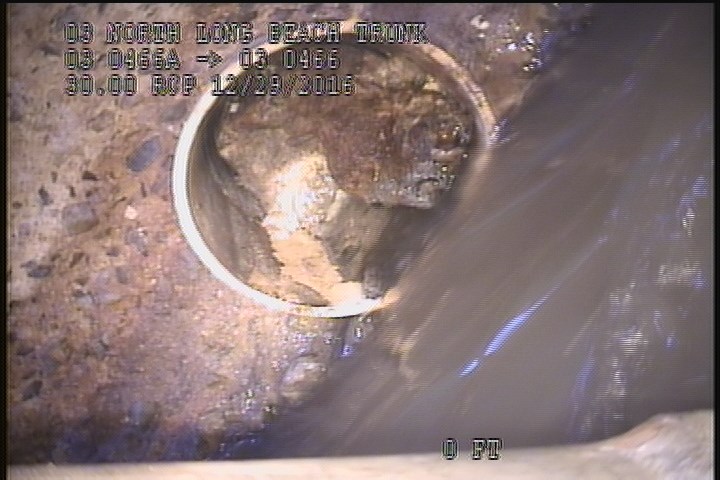

0 ft. - General Observation - CONNECTION AT MH, 9 OCLOCK, UNKOWN, 100% BLOCKED

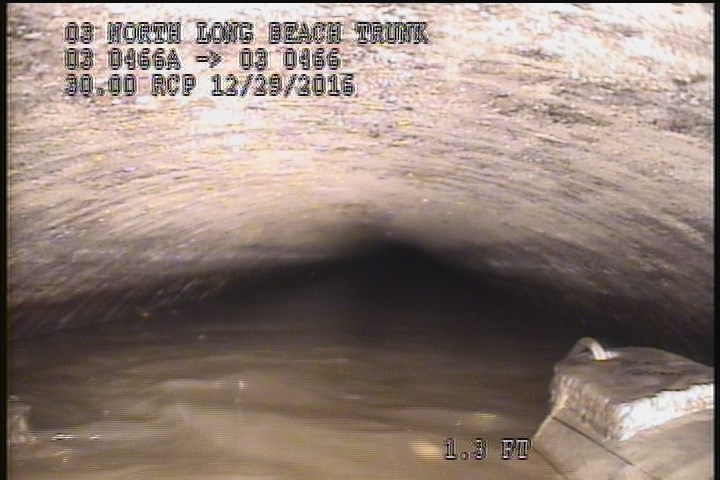

0 ft. - Water Level, 70 %of cross sectional area

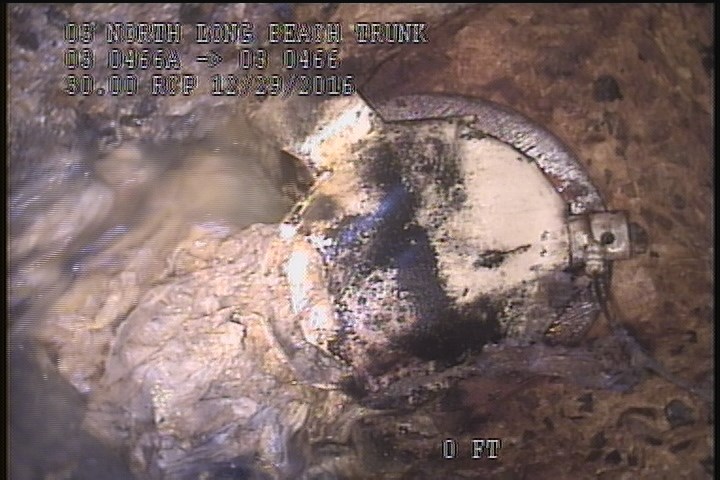

0 ft. - General Observation - CONNECTION AT MH, 3 OCLOCK, GAS FLAP IN PLACE

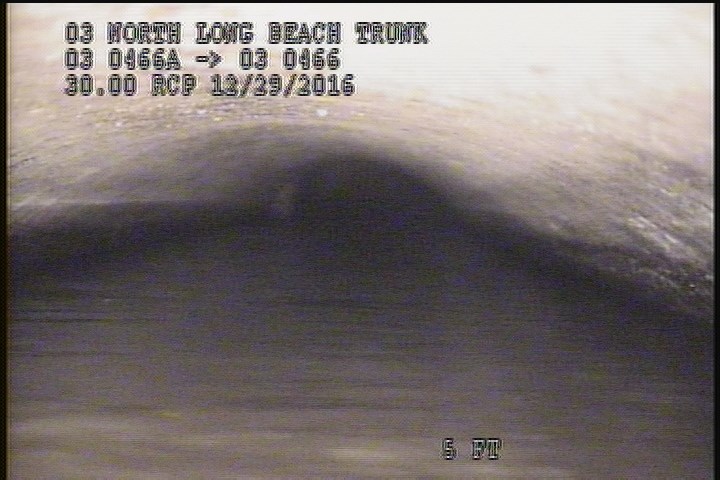

5 ft. - Survey Abandoned - ABLE TO ZOOM DOWNSTREAM TO MH 0466
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 12:10PM |
| 5 | MSA | ABLE TO ZOOM DOWNSTREAM TO MH 0466 |
| 0 | MGO | CONNECTION AT MH, 9 OCLOCK, UNKOWN, 100% BLOCKED |
| 2 | MGO | LINER IN PLACE |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH, 3 OCLOCK, GAS FLAP IN PLACE |
| 0 | MWM | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-29T11:15:41-08:00
