Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 29, 2016, 07:13 PM

  • 03 0467_03 0466A_12292016_111837.mp4

Date
12/29/2016
W/O
0607752
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00387
PipeID
P20012
Time
11:13 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0380
Sewer Name
03 NORTH LONG BEACH TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
18
Purpose
Capital Improvement Program Assesment
Project
20161229MI_NORTH_LONG_BEACH_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
03 0467
Downstream MH
03 0466A
Dir. of Survey
Downstream
Length Surveyed
46.1 ft.
Total Length
46.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 03 0467 to 03 0466A
MH: 03 0467MH: 03 0466Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:16AM0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area2 ft. MGO - General Observation - LINER IN PLACE46.1 ft. AMH - Downstream Manhole, Survey Ends - ZOOMED TO MH 0466A

Observation photos (2)

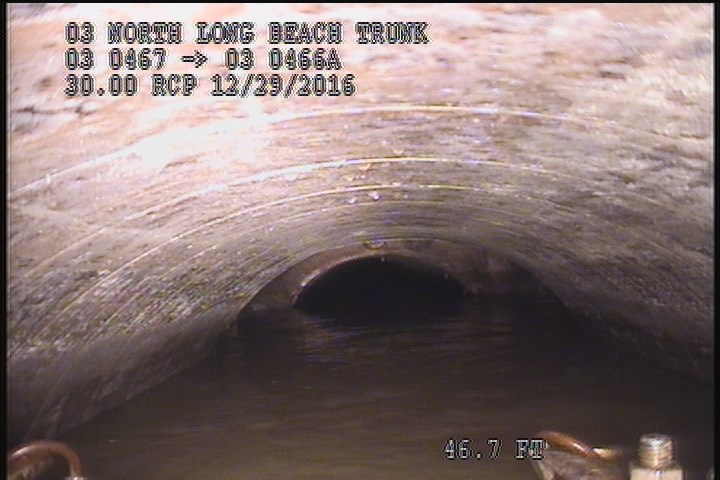

  • Water Mark, 60 %of cross sectional area

    0 ft. - Water Mark, 60 %of cross sectional area

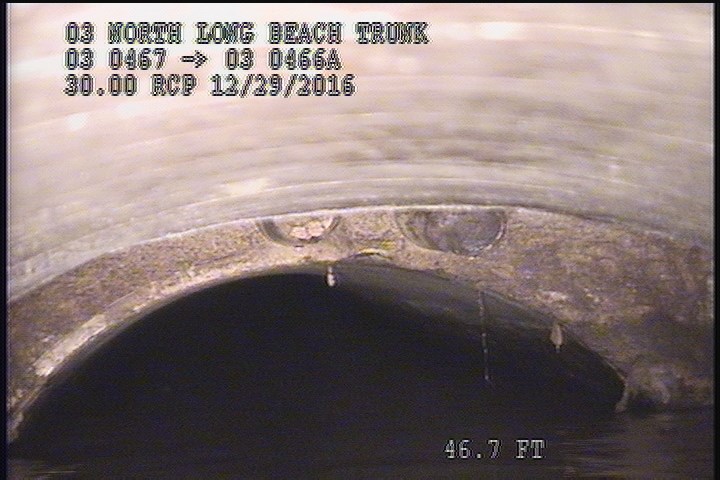

  • Downstream Manhole, Survey Ends - ZOOMED TO MH 0466A

    46.1 ft. - Downstream Manhole, Survey Ends - ZOOMED TO MH 0466A

All inspections of P20012Work order 0607752

Observations (5)

DistanceCodeObservation
0AMH11:16AM
46.1AMHZOOMED TO MH 0466A
2MGOLINER IN PLACE
0MWM—
0MWL—

Properties (5)

additional_info
LINER IN PLACE
custom_field_two
4
customer
LACSD
datetime
2016-12-29T11:13:08-08:00
year_laid
19981116
