Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 29, 2016, 05:16 PM

  • B 0353_B 0352_12292016_092617.mp4

Date
12/29/2016
W/O
0608192
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00091
PipeID
P08865
Time
9:16 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0379
Sewer Name
B JOINT OUTFALL B - UNIT 5A
City
TEMPLE CITY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
15
Purpose
Routine Assessment
Project
20161229MI_JOINT_OUTFALL_B_UNIT_5A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
B 0353
Downstream MH
B 0352
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole B 0353 to B 0352
MH: B 0353MH: B 0352downstream0 ft. MWL - Water Level, 100 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 09:30AM0 ft. MGO - General Observation - ROACHES AT MH2 ft. LD - Alignment Down, 45 %2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES2 ft. SRC - Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: YES2.1 ft. MSA - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

Observation photos (5)

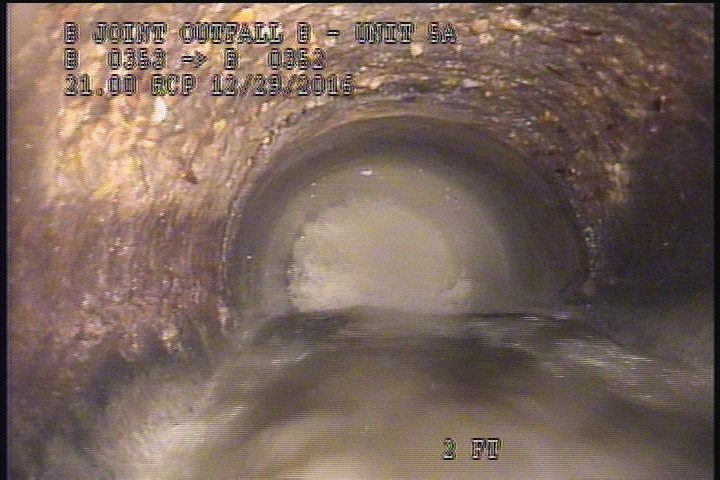

  • Upstream Manhole, Survey Begins - 09:30AM

    0 ft. - Upstream Manhole, Survey Begins - 09:30AM

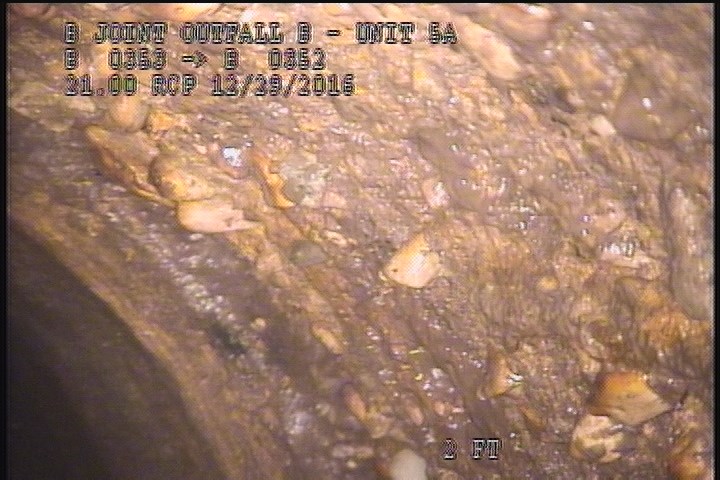

  • Alignment Down, 45 %

    2 ft. - Alignment Down, 45 %

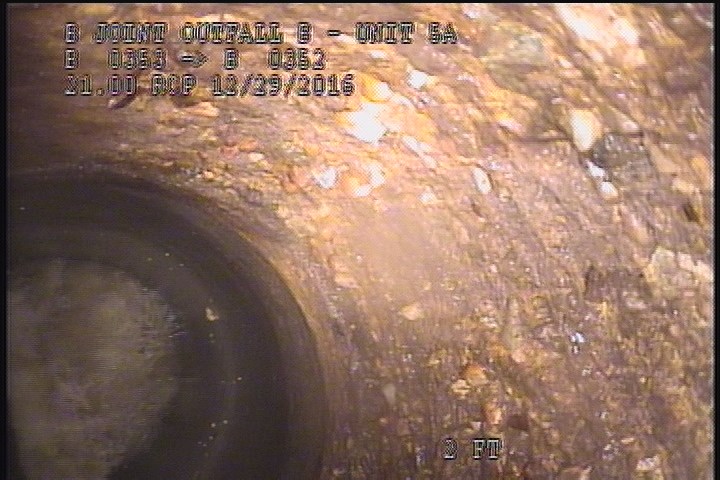

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

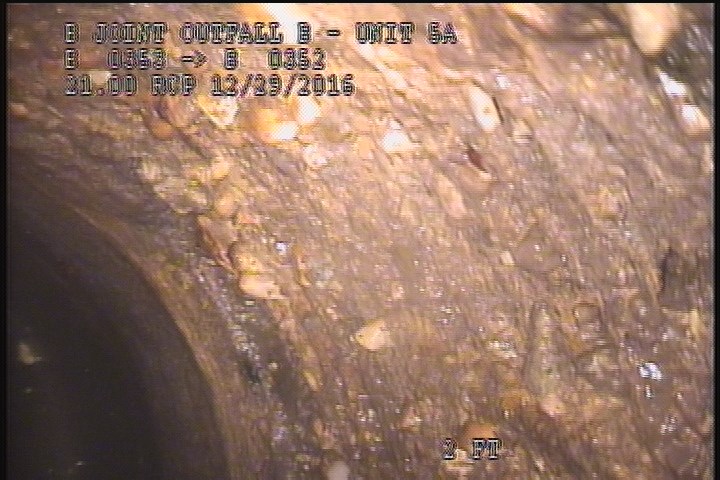

  • Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: YES

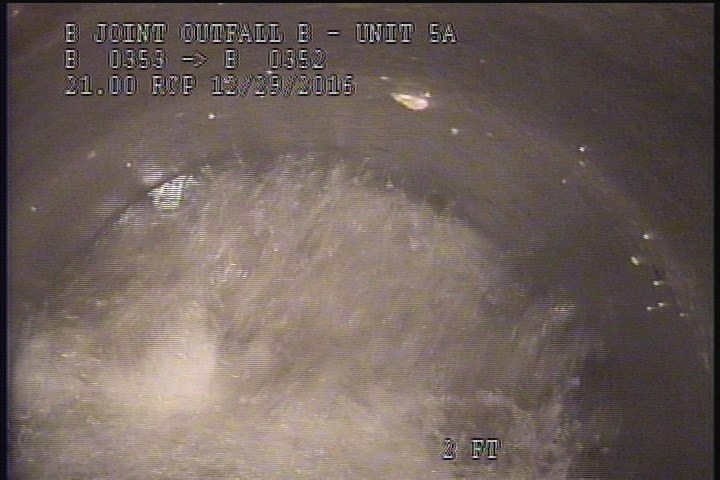

  • Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

    2.1 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

All inspections of P08865Work order 0608192

Observations (7)

DistanceCodeObservation
2.1MSAVIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
0MWL—
2LD—
2SAV—
2SRC—
0AMH09:30AM
0MGOROACHES AT MH

Properties (4)

additional_info
VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
custom_field_two
2
customer
LACSD
datetime
2016-12-29T09:16:36-08:00
