Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 28, 2016, 07:06 PM

  • C 0252_C 0251_12282016_113142.mp4

Date
12/28/2016
W/O
0607754
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00131
PipeID
P22179
Time
11:06 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0378
Sewer Name
C JOINT OUTFALL C - UNIT 6B
City
LONG BEACH
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20161228MI_JOINT_OUTFALL_C_UNIT_6B
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
C 0251
Downstream MH
C 0252
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole C 0251 to C 0252
MH: C 0251MH: C 0252upstream0 ft. MSA - Survey Abandoned - S/E BARREL, VIEW OF THE UPLEG PIPE OF THE D/S SIPHON0.1 ft. CM - Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES0.1 ft. MGO - General Observation - VIEW OF THE S/E BARREL, UPLEG PIPE OF THE D/S SIPHON0.1 ft. LU - Alignment Up, 45 %2.1 ft. MGO - General Observation - AIRLINE2.1 ft. MWL - Water Level, 100 %of cross sectional area2.1 ft. AMH - Downstream Manhole, Survey Begins - 11:27AM

Observation photos (4)

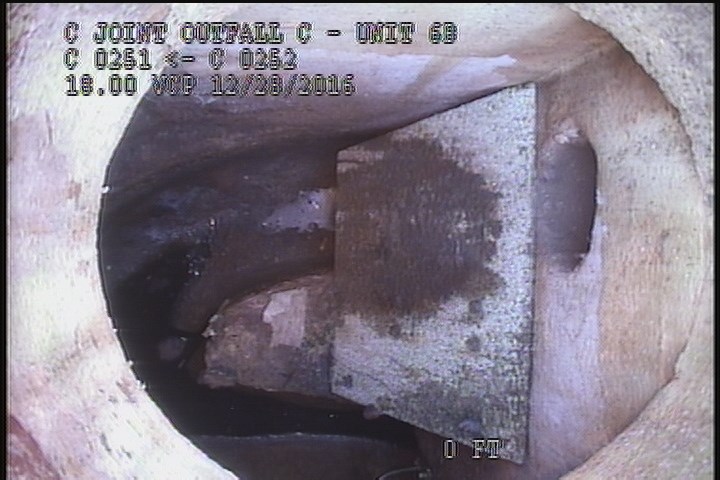

  • Downstream Manhole, Survey Begins - 11:27AM

    0 ft. - Downstream Manhole, Survey Begins - 11:27AM

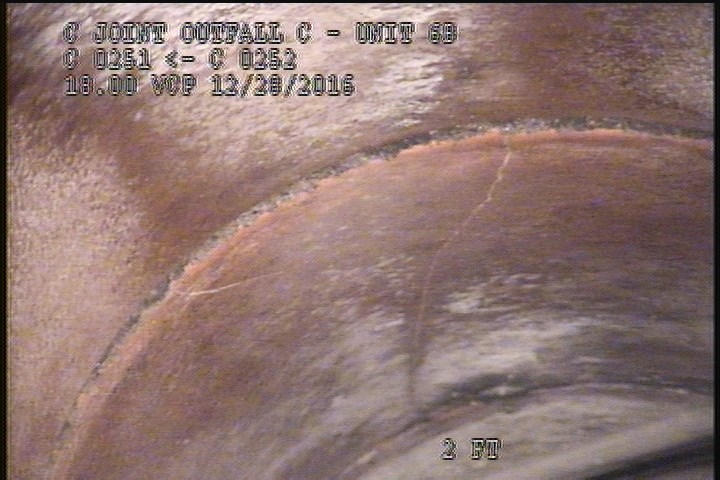

  • Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES

    2 ft. - Crack Multiple, from 11 to 12 o'clock, within 8 inches of joint: YES

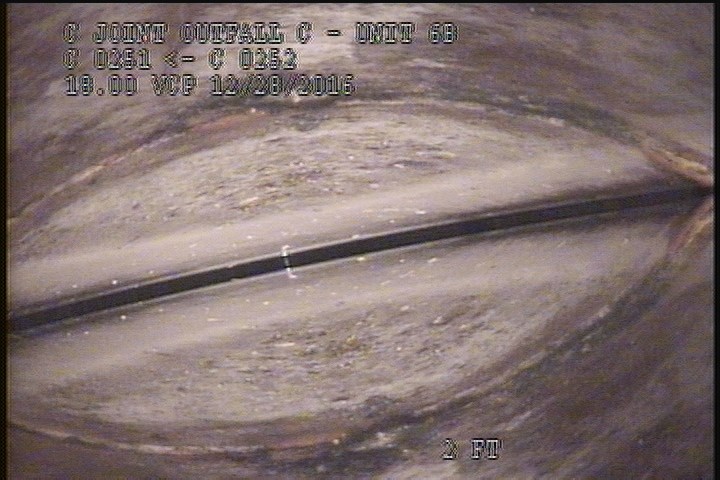

  • General Observation - VIEW OF THE S/E BARREL, UPLEG PIPE OF THE D/S SIPHON

    2 ft. - General Observation - VIEW OF THE S/E BARREL, UPLEG PIPE OF THE D/S SIPHON

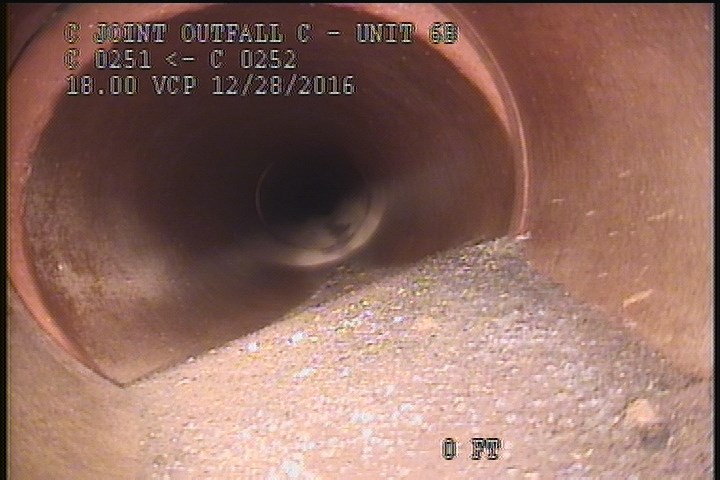

  • Survey Abandoned - S/E BARREL, VIEW OF THE UPLEG PIPE OF THE D/S SIPHON

    2.1 ft. - Survey Abandoned - S/E BARREL, VIEW OF THE UPLEG PIPE OF THE D/S SIPHON

All inspections of P22179Work order 0607754

Observations (7)

DistanceCodeObservation
2CM—
0MGOAIRLINE
2MGOVIEW OF THE S/E BARREL, UPLEG PIPE OF THE D/S SIPHON
0MWL—
2LU—
2.1MSAS/E BARREL, VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
0AMH11:27AM

Properties (4)

additional_info
S/E BARREL, VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
custom_field_two
3
customer
LACSD
datetime
2016-12-28T11:06:04-08:00
