Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 22, 2016, 04:38 PM

  • 02 1887_02 1886_12222016_084600.mp4

Date
12/22/2016
W/O
0607745
Weather
Damp
Operator/Surveyor
FRANKLIN
Sewer ID
Z01172
PipeID
P04250
Time
8:38 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7295
Sewer Name
02 DOUGLAS AVENUE RELOCATION TRUNK
City
EAST LA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20161221DF_DOUGLAS_AVENUE_RELOCATION_TRUNK
Material
NRCP
Shape
Circular
Height
8 in.
Upstream MH
02 1885
Downstream MH
02 1886
Dir. of Survey
Upstream
Length Surveyed
308.9 ft.
Total Length
308.9 ft.
Structural Index
3
Structural Quick
4231
Structural Rating
17
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 02 1885 to 02 1886
MH: 02 1885MH: 02 1886upstream0 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH0 ft. AMH - Upstream Manhole, Survey Ends - 9:26 AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - ROACHES @ MH58.6 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES72.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN75.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN107 ft. MGP - General Photograph - FRACTURES107 ft. FM - Fracture Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES117.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"120.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN135.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN137.1 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES171.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN183.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"200.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES206.3 ft. FM - Fracture Multiple, from 01 to 02 o'clock, within 8 inches of joint: YES213.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"215.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES215.5 ft. MGP - General Photograph - CRACK267.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"274.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN304.2 ft. MGO - General Observation - ROACHES @ MH308.8 ft. MWM - Water Mark, 15 %of cross sectional area308.8 ft. MWL - Water Level, 10 %of cross sectional area308.9 ft. AMH - Downstream Manhole, Survey Begins - 8:43 AM

Observation photos (7)

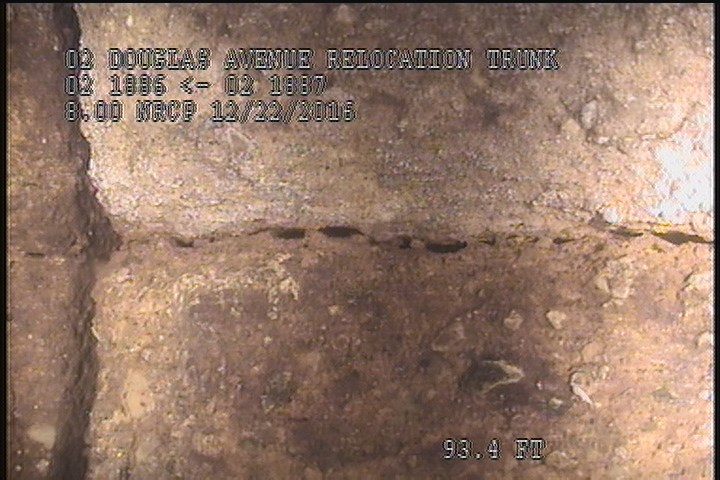

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    93.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

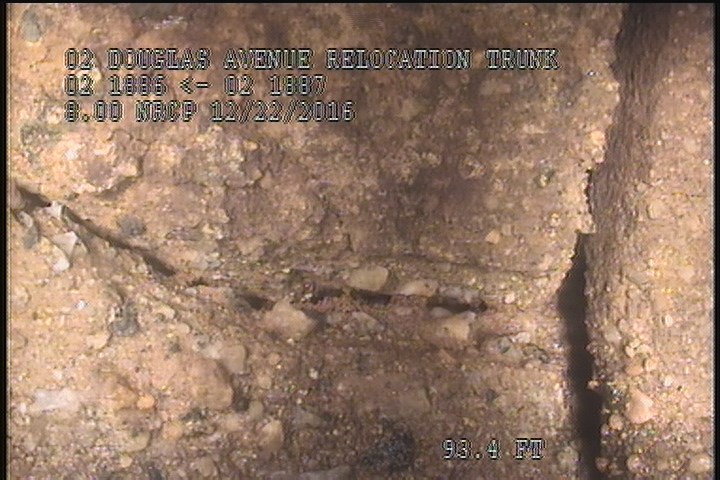

  • General Photograph - CRACK

    93.4 ft. - General Photograph - CRACK

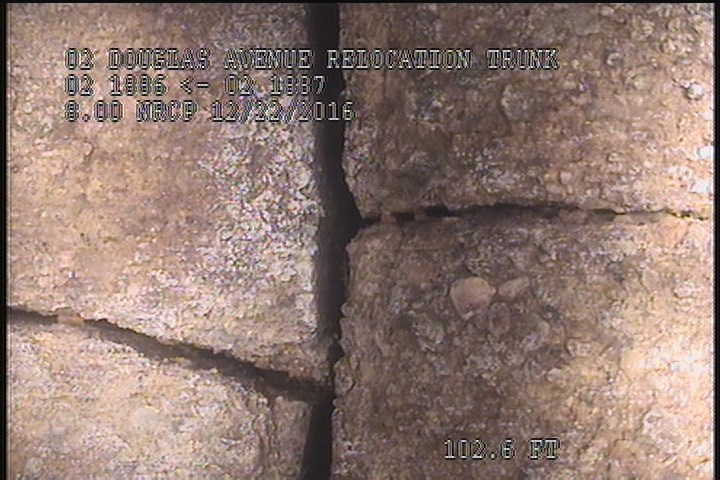

  • Fracture Multiple, from 01 to 02 o'clock, within 8 inches of joint: YES

    102.6 ft. - Fracture Multiple, from 01 to 02 o'clock, within 8 inches of joint: YES

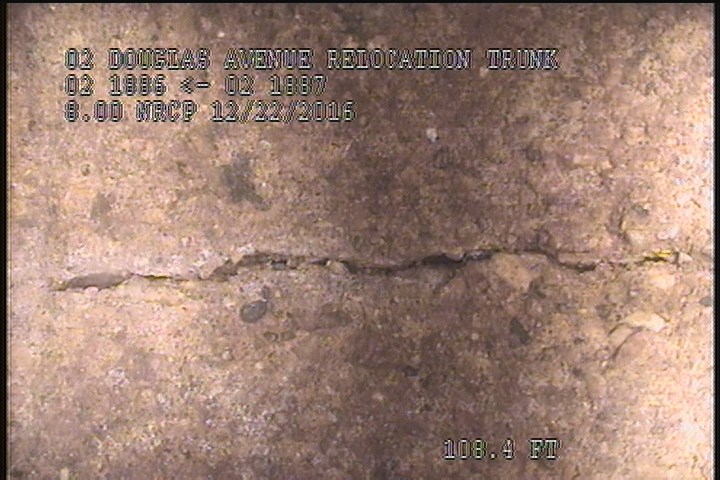

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    108.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

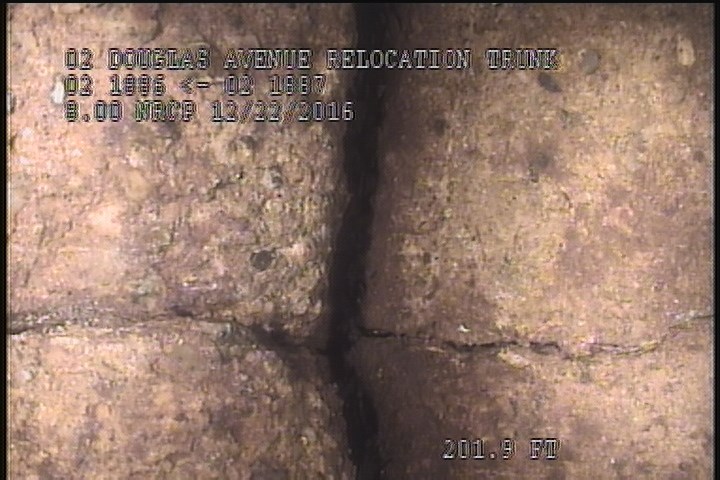

  • General Photograph - FRACTURES

    201.9 ft. - General Photograph - FRACTURES

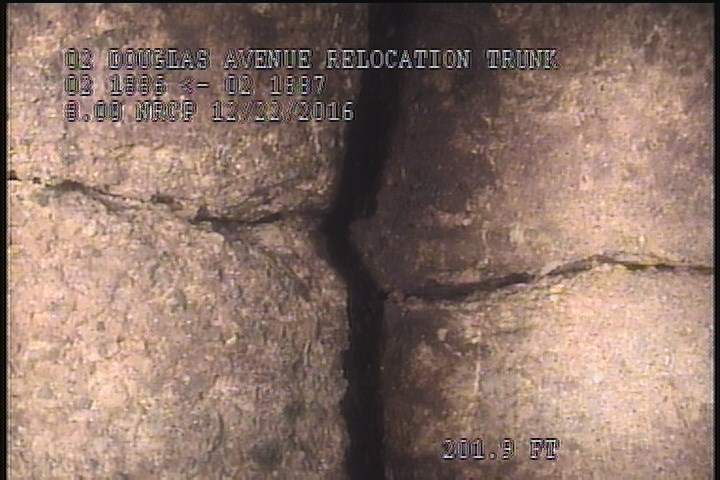

  • Fracture Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

    201.9 ft. - Fracture Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

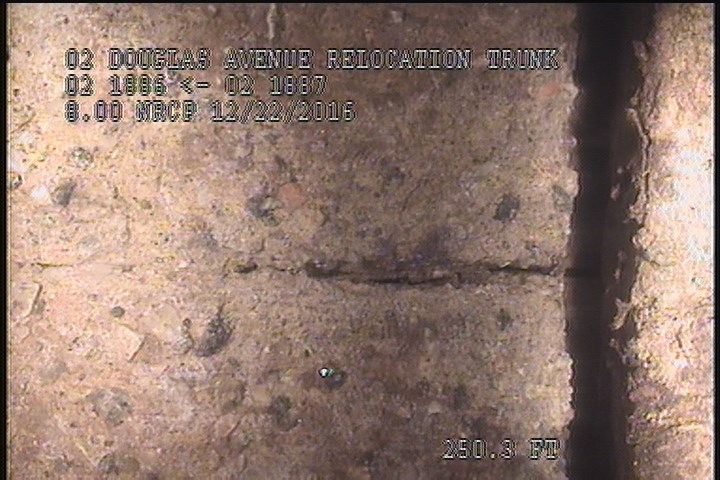

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    250.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

All inspections of P04250Work order 0607745

Observations (26)

DistanceCodeObservation
171.8CL—
308.9MGOSLIGHT GREASE THROUGHOUT THE REACH
308.9AMH9:26 AM
0.1MWM—
0.1MWL—
188.6TFOPEN
41.2TFA—
173.5TFOPEN
93.4CM—
34.5TFOPEN
102.6FM—
95.1TFA—
308.9MGOConn. @ Mh, 9 O' Clock. Active
191.4TFA—
308.9MGOROACHES @ MH
0AMH8:43 AM
201.9MGPFRACTURES
250.3CL—
125.2TF—
4.7MGOROACHES @ MH
108.4CL—
93.4MGPCRACK
236.7TFOPEN
201.9FM—
137.2TFOPEN
233.8TFOPEN

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-12-22T08:38:12-08:00
