Wastewater/Activity/PacpInspection/1.0Dec 21, 2016, 04:56 PM
18 0210_18 0209_12212016_090337.mp4
- Date
- 12/21/2016
- W/O
- 0613990
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00695
- PipeID
- P14035
- Time
- 8:56 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7296
- Sewer Name
- 18 ORR AND DAY ROAD TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 13
- Purpose
- Maintenance Related
- Project
- 20161221AM_ORR_AND_DAY_ROAD_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 18 0209
- Downstream MH
- 18 0210
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

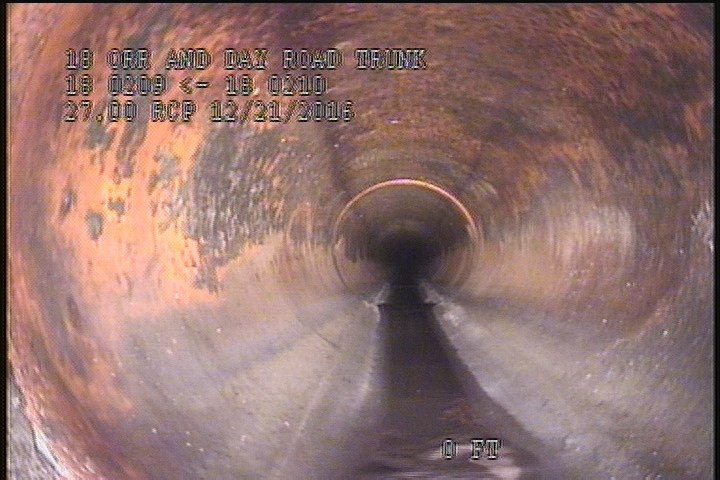

0 ft. - General Observation - ACTIVE CONN. INSIDE THE MH. @ 01 O'CLOCK

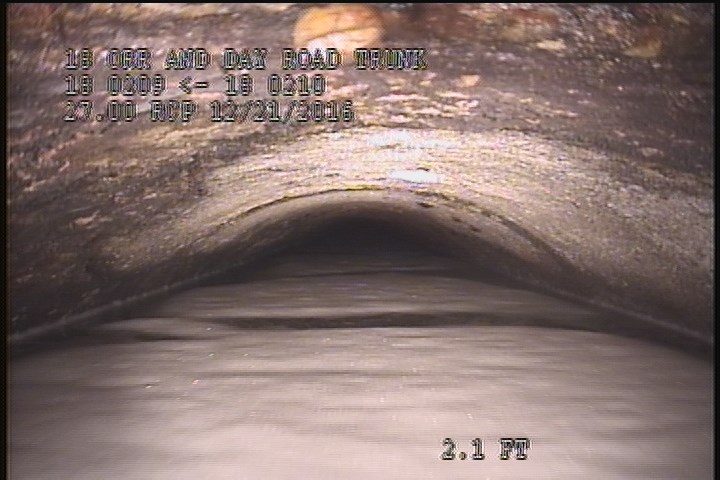

0 ft. - Water Level, 80 %of cross sectional area

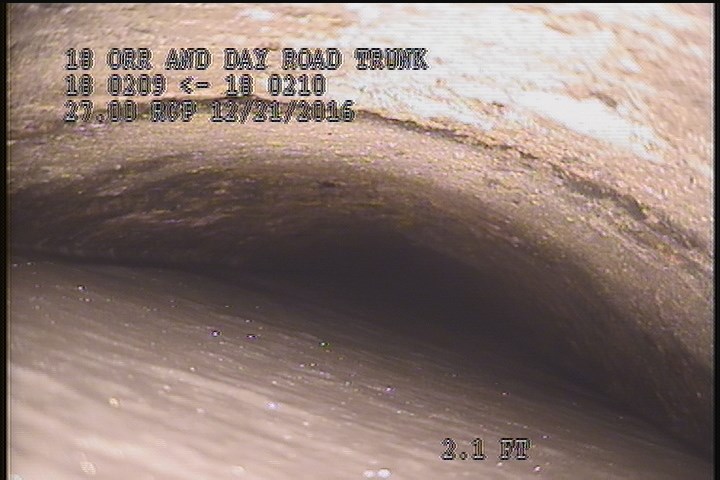

2.1 ft. - Survey Abandoned - TO MUCH WATER
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 01 O'CLOCK |
| 2.1 | MSA | TO MUCH WATER |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK |
| 2 | SAV | — |
| 0 | AMH | 8:59 AM |
| 2 | SSS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- JUST GOING TO HANG THE CAMERA IN THE CENTER OF THE MH. & ZOOM IN U/S
- custom_field_three
- HANG JOB ONLY
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-12-21T08:56:08-08:00
