Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 16, 2016, 10:51 AM

  • 01 0658_01 0657_12162016_041650.mp4

Date
12/16/2016
W/O
0607746
Weather
Heavy Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00212
PipeID
P01158
Time
2:51 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0375
Sewer Name
01 MOUNTAIN VIEW-BELLE VERNON TRUNK
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20161216MDM_MOUNTAIN_VIEW_BELLE_VERNON_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
01 0658
Downstream MH
01 0657
Dir. of Survey
Downstream
Length Surveyed
203.4 ft.
Total Length
203.4 ft.
Structural Index
2
Structural Quick
362E
Structural Rating
78
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
83
Pipe schematic from manhole 01 0658 to 01 0657
MH: 01 0658MH: 01 0657downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped6.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE9.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT20.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H20.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H22.4 ft. MGO - General Observation - SLIGHT SPALLING THROUGHOUT REACH22.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL22.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL32.9 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SL41 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H45.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H51.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL56.1 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL66.5 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL66.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL73 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open77 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL77 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL79.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H79.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H85 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL85.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open89.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL95.3 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL95.3 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL102.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H113.3 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL116.1 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H120.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active121 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H121 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - H127.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open129 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL129 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H131.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H134 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL157.5 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H162.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SL164 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open176.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H179.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped186.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H186.9 ft. MGP - General Photograph - 12" VCP189 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H201.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SL202.6 ft. TFD - Tap Factory Made Defective, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Active 30% ROOTS202.6 ft. RML - Roots Medium Lateral, from 01 to 04 o'clock, 30 %, within 8 inches of joint: YES203.4 ft. MSA - Survey Abandoned - 30% ROOTS STOPPED CAMERA CAN COMPLETE REVERSE INSPECTION

Observation photos (2)

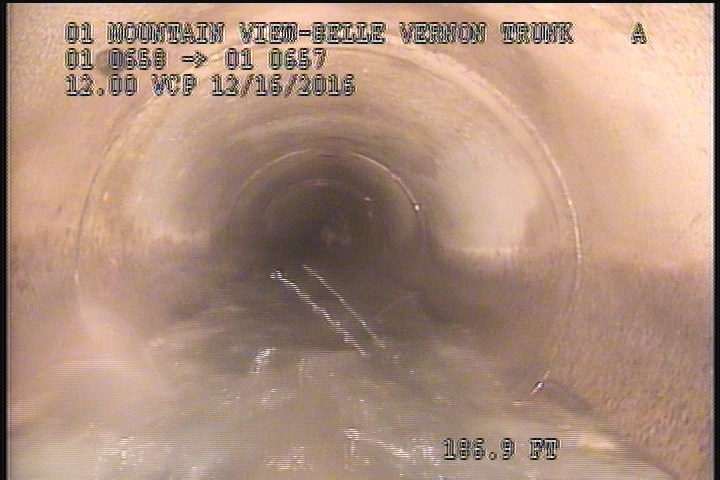

  • General Photograph - 12" VCP

    186.9 ft. - General Photograph - 12" VCP

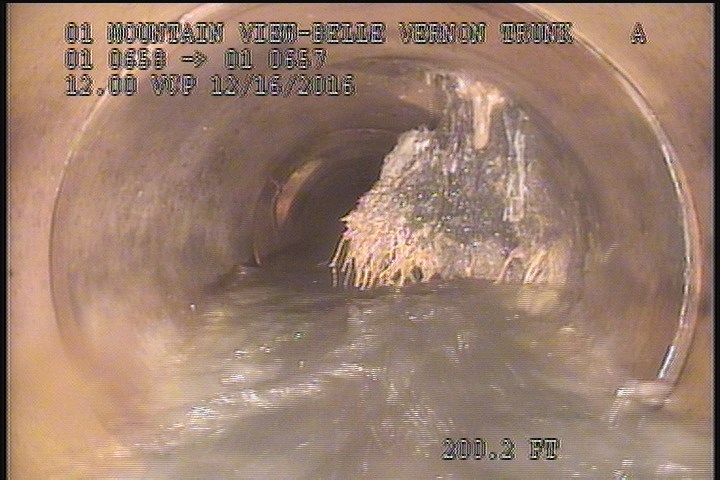

  • Roots Medium Lateral, from 01 to 04 o'clock, 30 %, within 8 inches of joint: YES

    202.6 ft. - Roots Medium Lateral, from 01 to 04 o'clock, 30 %, within 8 inches of joint: YES

All inspections of P01158Work order 0607746

Observations (51)

DistanceCodeObservation
189FLH
51.1FCSL
202.6TFDActive 30% ROOTS
186.9MGP12" VCP
0MWL—
0MWM—
176.1FCH
22.7FCSL
202.6RML—
89.9FCSL
129FCSL
56.1FCSL
120.1TFActive
85FCSL
77FCSL
121FCH
73TFOpen
131.7FLH
77FCSL
32.9FCSL
179.1TFCCapped
95.3FCSL
129FCH
20.1FCH
134FCSL
79.9FCH
201.7FLSL
22.4MGOSLIGHT SPALLING THROUGHOUT REACH
113.3FCSL
9.7FCSLIGHT
162.8FLSL
0AMH4:15AM
127.4TFOpen
157.5FCH
20.1FCH
203.4MSA30% ROOTS STOPPED CAMERA CAN COMPLETE REVERSE INSPECTION
0MGOConn. @ Mh, 9 O' Clock. Capped
41FCH
66.5FCSL
186.1FCH
66.5FCSL
85.9TFOpen
164TFOpen
102.9FCH
22.7FCSL
121FLH
95.3FCSL
116.1FCH
79.9FCH
6.9FCHAIRLINE
45.9FLH
