Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 16, 2016, 10:30 AM

  • 01 0659A_01 0659_12162016_032018.mp4

Date
12/16/2016
W/O
0607746
Weather
Heavy Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00212
PipeID
P01160
Time
2:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0374
Sewer Name
01 MOUNTAIN VIEW-BELLE VERNON TRUNK
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20161216MDM_MOUNTAIN_VIEW_BELLE_VERNON_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
01 0659A
Downstream MH
01 0659
Dir. of Survey
Downstream
Length Surveyed
21.8 ft.
Total Length
21.8 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
20
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 01 0659A to 01 0659
MH: 01 0659AMH: 01 0659downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:20AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped2.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE2.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT5.6 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE5.6 ft. MGO - General Observation - 12" VCP5.6 ft. MGO - General Observation - THIN COATING PEELING9 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Finish - HAIRLINE9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE11 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT11 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT13.5 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H13.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL15.3 ft. MGO - General Observation - PEELING COATING16.2 ft. MGO - General Observation - UNUSAL AREA PEELING COATING17.5 ft. MGP - General Photograph - PEELING COATING21.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active21.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped21.8 ft. AMH - Downstream Manhole, Survey Ends - 3:40AM

Observation photos (8)

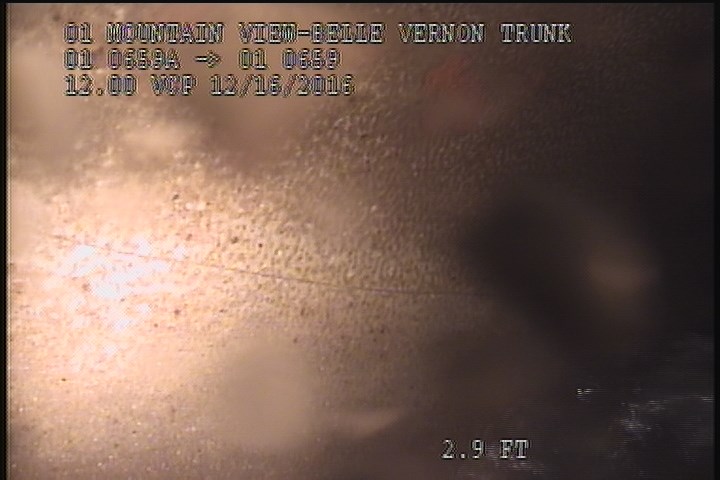

  • Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE

    2.9 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE

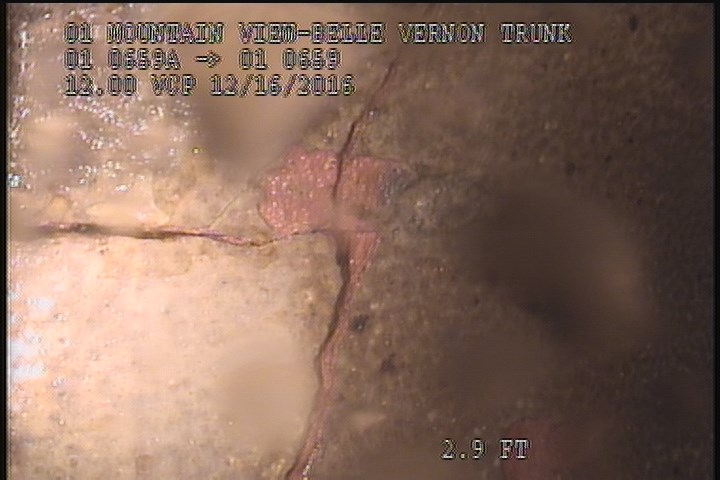

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT

    2.9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT

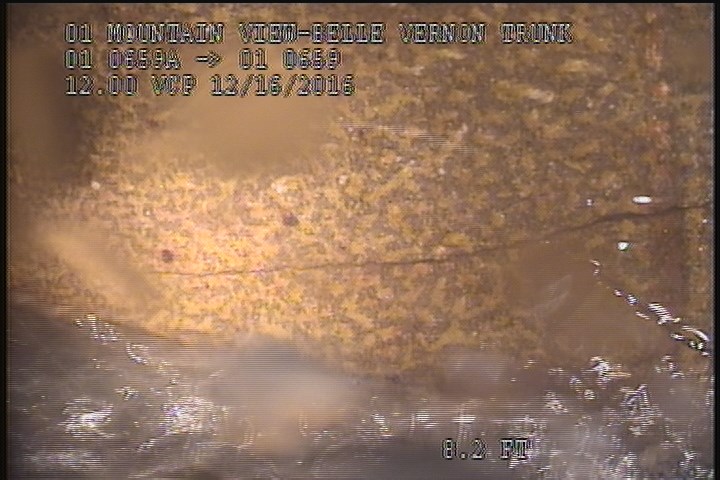

  • Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    5.6 ft. - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

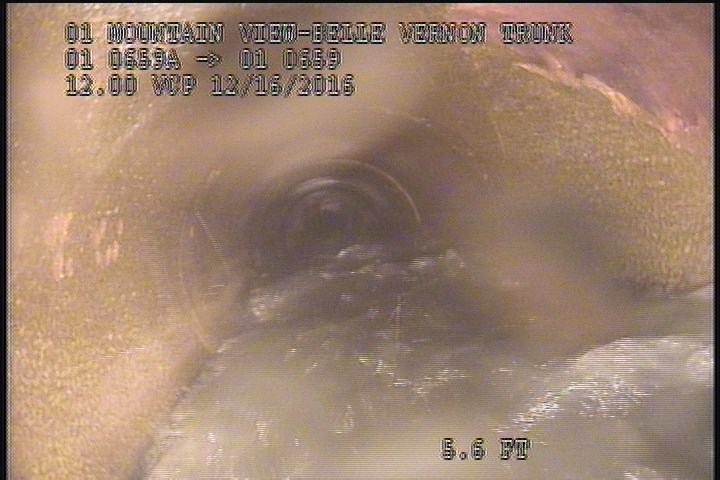

  • General Observation - 12" VCP

    5.6 ft. - General Observation - 12" VCP

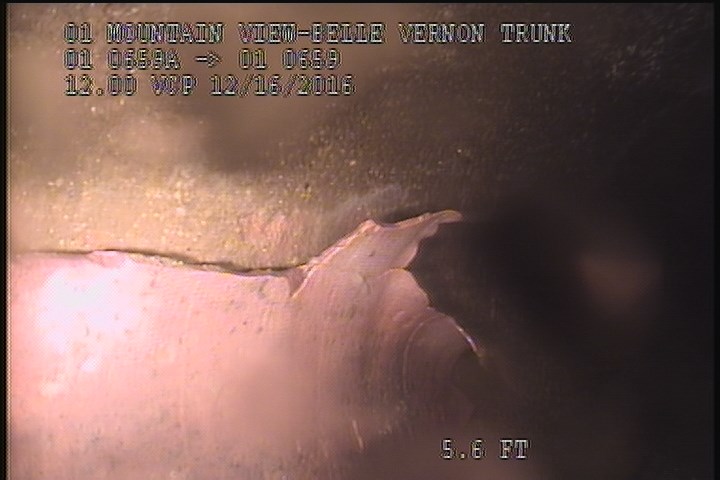

  • General Observation - THIN COATING PEELING

    5.6 ft. - General Observation - THIN COATING PEELING

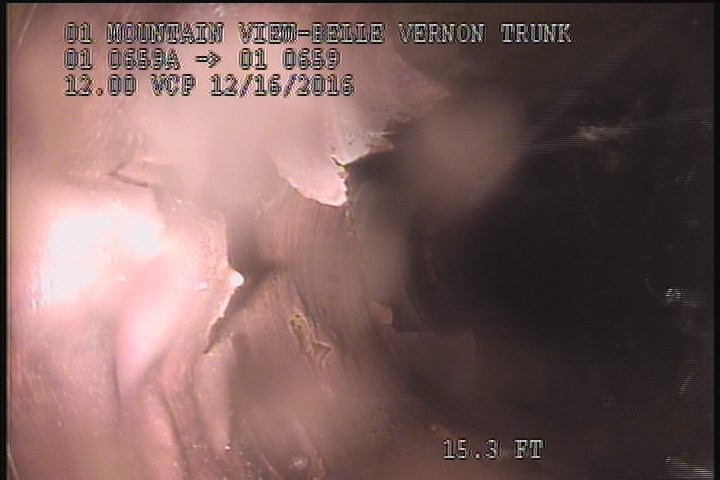

  • General Observation - PEELING COATING

    15.3 ft. - General Observation - PEELING COATING

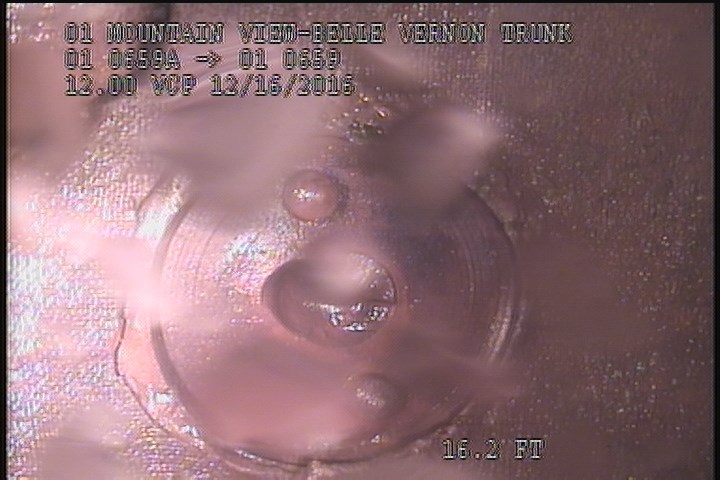

  • General Observation - UNUSAL AREA PEELING COATING

    16.2 ft. - General Observation - UNUSAL AREA PEELING COATING

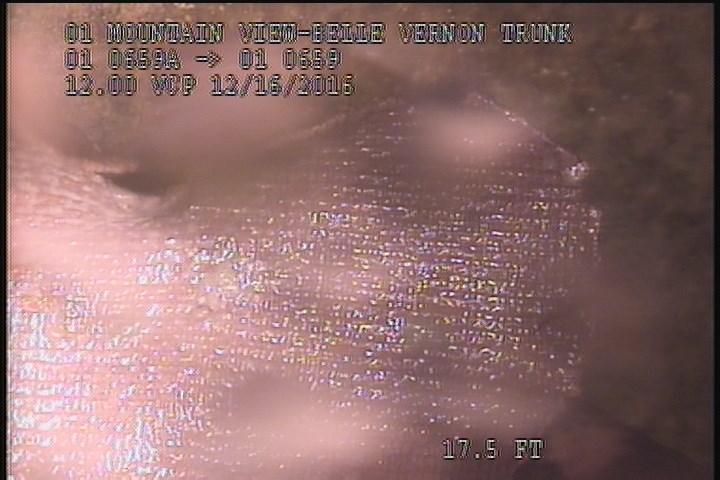

  • General Photograph - PEELING COATING

    17.5 ft. - General Photograph - PEELING COATING

All inspections of P01160Work order 0607746

Observations (22)

DistanceCodeObservation
5.6FSHAIRLINE
16.2MGOUNUSAL AREA PEELING COATING
0AMH3:20AM
2.9FLHAIRLINE
0MGOConn. @ Mh, 9 O' Clock. Capped
13.5FCH
21.4MGOConn. @ Mh, 3 O' Clock. Active
17.5MGPPEELING COATING
9FSHAIRLINE
0MWM—
21.4MGOConn. @ Mh, 9 O' Clock. Capped
5.6MGO12" VCP
0MWL—
21.8AMH3:40AM
11FCSLIGHT
2.9FMSLIGHT
5.6MGOTHIN COATING PEELING
0MGOConn. @ Mh, 3 O' Clock. Capped
11FCSLIGHT
13.5FCSL
15.3MGOPEELING COATING
9FCHAIRLINE

Properties (4)

custom_field_three
HAIRLINE SPRIAL JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-12-16T02:30:00-08:00
