Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 16, 2016, 09:15 AM

  • 01 0659B_01 0695A_12162016_014057.mp4

Date
12/16/2016
W/O
0607746
Weather
Heavy Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00212
PipeID
P01161
Time
1:15 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0374
Sewer Name
01 MOUNTAIN VIEW-BELLE VERNON TRUNK
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20161216MDM_MOUNTAIN_VIEW_BELLE_VERNON_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
01 0659B
Downstream MH
01 0695A
Dir. of Survey
Downstream
Length Surveyed
249.7 ft.
Total Length
249.7 ft.
Structural Index
2
Structural Quick
3A2B
Structural Rating
60
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
60
Pipe schematic from manhole 01 0659B to 01 0695A
MH: 01 0659BMH: 01 0695Adownstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 1:15AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area4.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE4.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT10.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H10.2 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL12.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H15 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL15 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H17.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H20.5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SL23.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H25.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H25.6 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL25.6 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H27.9 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H27.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL30.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS30.8 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS30.8 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H30.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS30.8 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL30.8 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS41 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H44.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H44.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL54.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SL64 ft. MGO - General Observation - 12" VCP74.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H78.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES,78.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped78.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H86.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped171.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped174.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped232.5 ft. MWL - Water Level, 50 %of cross sectional area249.4 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 30% SLIGHT AT JOINTS249.4 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE AT JOINTS249.4 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% SLIGHT AT JOINTS249.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. STUB249.4 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 50% HAIRLINE AT JOINTS249.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. STUB249.7 ft. AMH - Downstream Manhole, Survey Ends - 2:05AM

Observation photos (3)

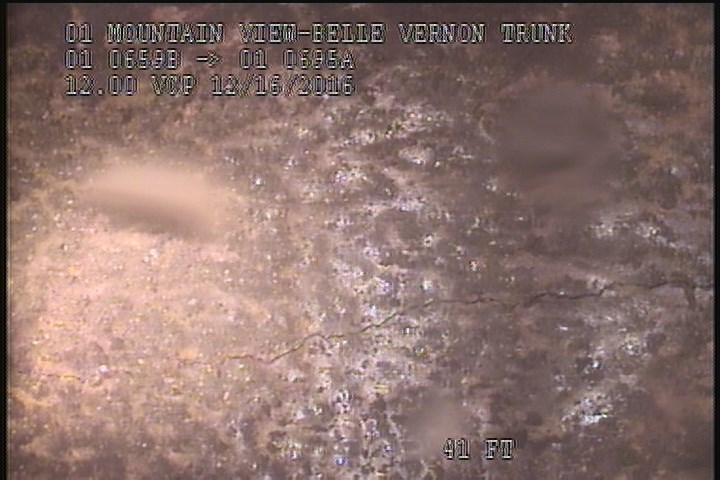

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    41 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

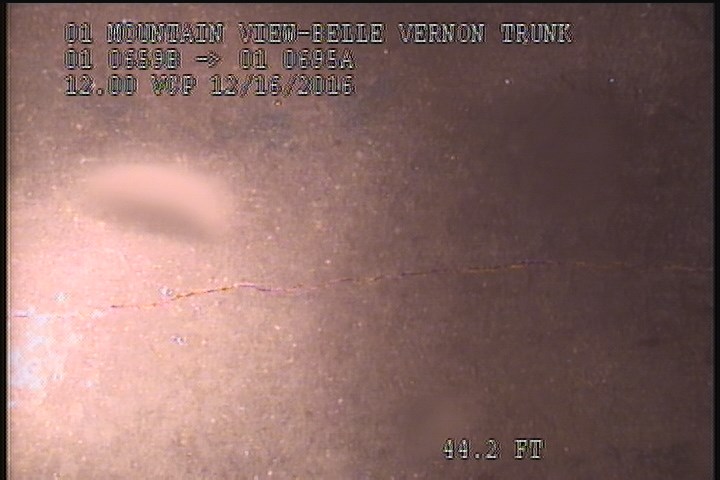

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL

    44.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL

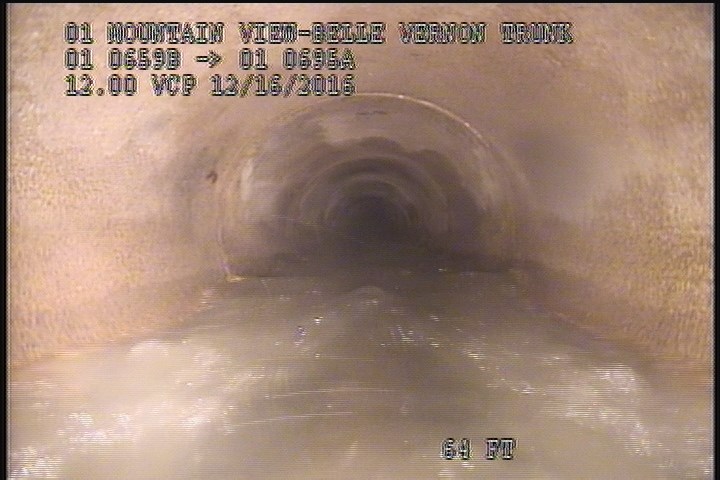

  • General Observation - 12" VCP

    64 ft. - General Observation - 12" VCP

All inspections of P01161Work order 0607746

Observations (45)

DistanceCodeObservation
30.8FCSLIGHT AT JOINTS
27.9FLH
249.4FL30% SLIGHT AT JOINTS
27.9FCSL
23.1FCH
15FCSL
25.1FCH
249.7AMH2:05AM
0MGOConn. @ Mh, 3 O' Clock. Active
44.2FLH
54.2FLSL
44.2FLSL
41FLH
20.5FLSL
171.5TFCCapped
86.3TFCCapped
174.2TFCCapped
249.4FL20% HAIRLINE AT JOINTS
0AMH1:15AM
17.6FCH
30.8FLHAIRLINE AT JOINTS
78.4FL—
232.5MWL—
30.8FCH
249.4FC70% SLIGHT AT JOINTS
30.8FCHAIRLINE AT JOINTS
78.4TFCCapped
10.2FLH
74.8FLH
249.4MGOConn. @ Mh, 3 O' Clock. STUB
10.2FCSL
0MWM—
4.7FCHAIRLINE
249.4FC50% HAIRLINE AT JOINTS
78.4FLH
4.7FLSLIGHT
12.7FCH
30.8FCSL
30.8FLSLIGHT AT JOINTS
64MGO12" VCP
249.4MGOConn. @ Mh, 9 O' Clock. STUB
15FCH
25.6FCSL
0MWL—
25.6FCH

Properties (4)

custom_field_three
SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-12-16T01:15:00-08:00
