Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 19, 2016, 07:01 PM

  • 29 0056_29 0055_12192016_110306.mp4

Date
12/19/2016
W/O
0607760
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00020
PipeID
P23836
Time
11:01 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7295
Sewer Name
29 EASTSIDE INTERCEPTOR TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
20161215DF_EASTSIDE_INTERCEPTOR_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
29 0056
Downstream MH
29 0055
Dir. of Survey
Downstream
Length Surveyed
99.9 ft.
Total Length
99.9 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 29 0056 to 29 0055
MH: 29 0056MH: 29 0055downstream0 ft. MGO - General Observation - ROACHES @ MH0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:02 AM0 ft. MWL - Water Level, 10 %of cross sectional area55.3 ft. MGP - General Photograph - POSSIBLE ENCRUSTACION/DEPOSITS ATTACHED55.3 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start85.7 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish96.2 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES96.2 ft. MGP - General Photograph - FRACTURED PIPE99.8 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH99.8 ft. MGO - General Observation - ROACHES @ MH99.8 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active99.9 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. UNKNOWN99.9 ft. AMH - Downstream Manhole, Survey Ends - 11:16 AM

Observation photos (4)

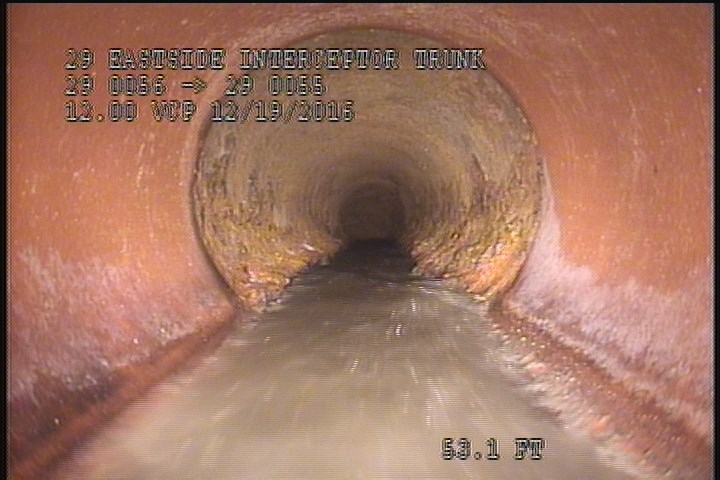

  • General Photograph - POSSIBLE ENCRUSTACION/DEPOSITS ATTACHED

    55.3 ft. - General Photograph - POSSIBLE ENCRUSTACION/DEPOSITS ATTACHED

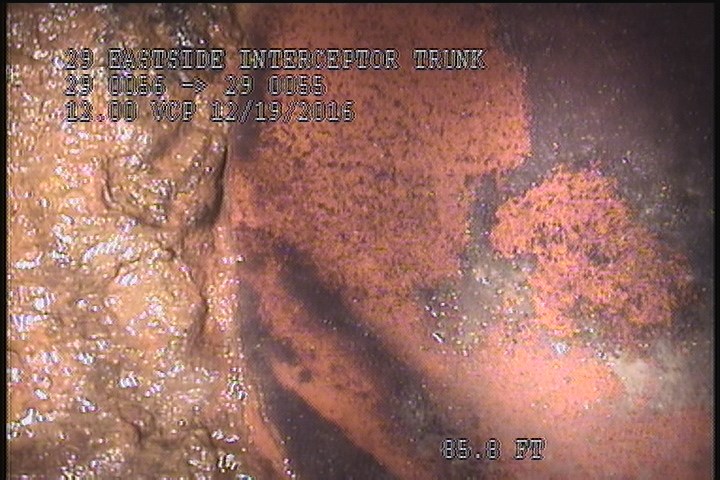

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish

    85.7 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish

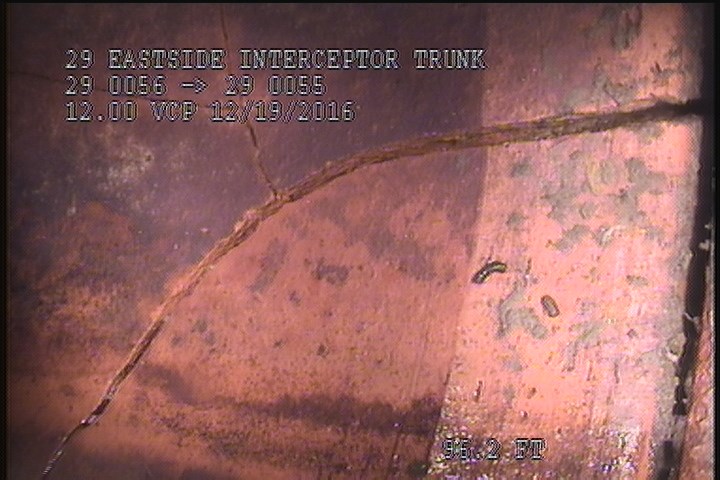

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    96.2 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

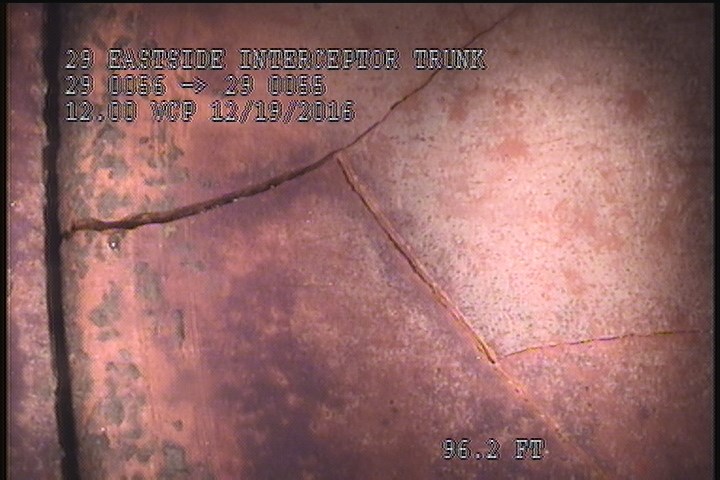

  • General Photograph - FRACTURED PIPE

    96.2 ft. - General Photograph - FRACTURED PIPE

All inspections of P23836Work order 0607760

Observations (14)

DistanceCodeObservation
55.3MGPPOSSIBLE ENCRUSTACION/DEPOSITS ATTACHED
99.8MGOSLIGHT GREASE THROUGHOUT THE REACH
0MGOROACHES @ MH
99.9MGOConn. @ Mh, 9 O' Clock. UNKNOWN
99.8MGOROACHES @ MH
0MWM—
85.7DAE—
99.8MGOConn. @ Mh, 3 O' Clock. Active
0AMH11:02 AM
99.9AMH11:16 AM
96.2FM—
55.3DAE—
96.2MGPFRACTURED PIPE
0MWL—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-12-19T11:01:17-08:00
