Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2016, 06:11 PM

  • 29 0054_29 0053_12152016_101427.mp4

Date
12/15/2016
W/O
0607760
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00020
PipeID
P23834
Time
10:11 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7294
Sewer Name
29 EASTSIDE INTERCEPTOR TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
20161215DF_EASTSIDE_INTERCEPTOR_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
29 0053
Downstream MH
29 0054
Dir. of Survey
Upstream
Length Surveyed
373.8 ft.
Total Length
373.8 ft.
Structural Index
3
Structural Quick
4131
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 29 0053 to 29 0054
MH: 29 0053MH: 29 0054upstream0 ft. AMH - Upstream Manhole, Survey Ends - 10:40 AM0 ft. MGO - General Observation - ROACHES @ MH0 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH344.3 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: NO345.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES345.2 ft. B - Broken, from 11 to 01 o'clock, within 8 inches of joint: YES373.8 ft. AMH - Downstream Manhole, Survey Begins - 10:13 AM373.8 ft. MGO - General Observation - ROACHES @ MH373.8 ft. MWL - Water Level, 10 %of cross sectional area373.8 ft. MWM - Water Mark, 15 %of cross sectional area

Observation photos (3)

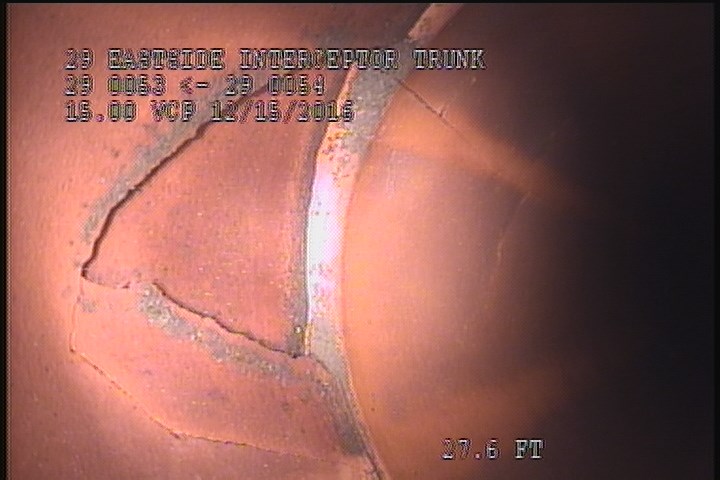

  • Broken, from 11 to 01 o'clock, within 8 inches of joint: YES

    28.6 ft. - Broken, from 11 to 01 o'clock, within 8 inches of joint: YES

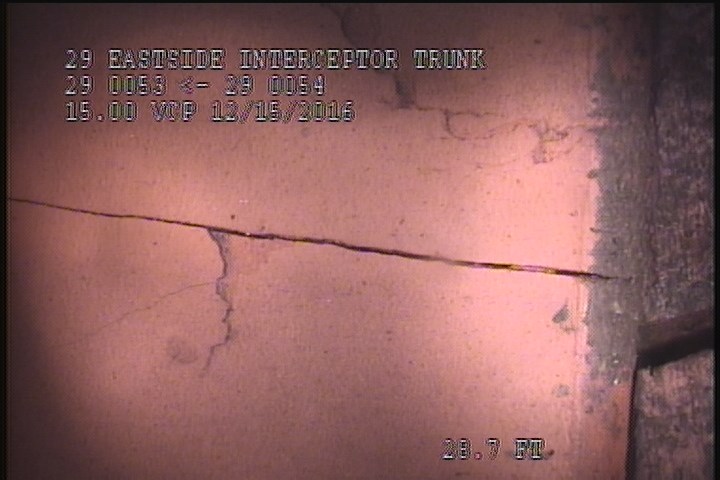

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    28.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

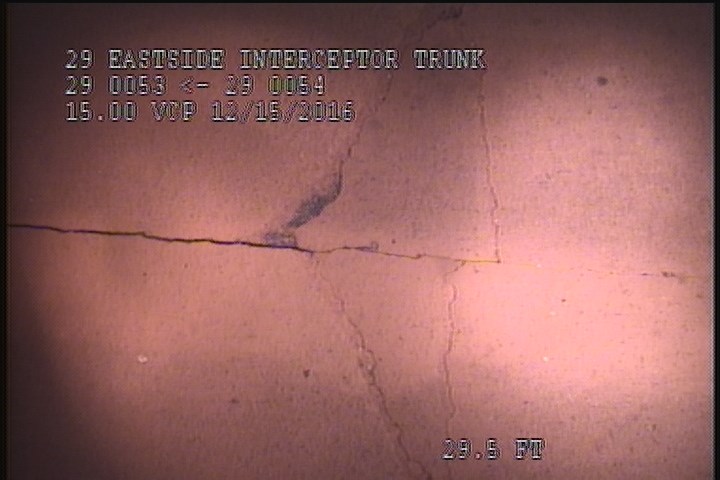

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: NO

    29.5 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: NO

All inspections of P23834Work order 0607760

Observations (10)

DistanceCodeObservation
29.5CM—
0AMH10:13 AM
373.8AMH10:40 AM
28.7CL—
0MGOROACHES @ MH
0MWL—
0MWM—
28.6B—
373.8MGOROACHES @ MH
373.8MGOSLIGHT GREASE THROUGHOUT THE REACH

Properties (3)

custom_field_two
1
customer
LACSD
datetime
2016-12-15T10:11:32-08:00
