Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2016, 05:57 PM

  • J 0032A_J 0032_12152016_103500.mp4

Date
12/15/2016
W/O
0602683
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00061
PipeID
P11609
Time
9:57 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0373
Sewer Name
J JOINT OUTFALL J - UNIT 2B
City
LOMITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary
District
District 05
Page No.
36
Purpose
Capital Improvement Program Assesment
Project
20161215AM_JOINT_OUTFALL_J_UNIT_2B
Material
Reinforced Concrete Pipe
Shape
Other
Height
51 in.
Upstream MH
J 0032A
Downstream MH
J 0032
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
4
Structural Quick
5231
Structural Rating
15
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole J 0032A to J 0032
MH: J 0032AMH: J 0032downstream0 ft. MGO - General Observation - TWO AIRLINES0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:33 AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO2 ft. LD - Alignment Down, 45 %2 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES2 ft. SRC - Surface Reinforcement Corroded, from 12 to 01 o'clock, within 8 inches of joint: YES2.1 ft. MSA - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

Observation photos (6)

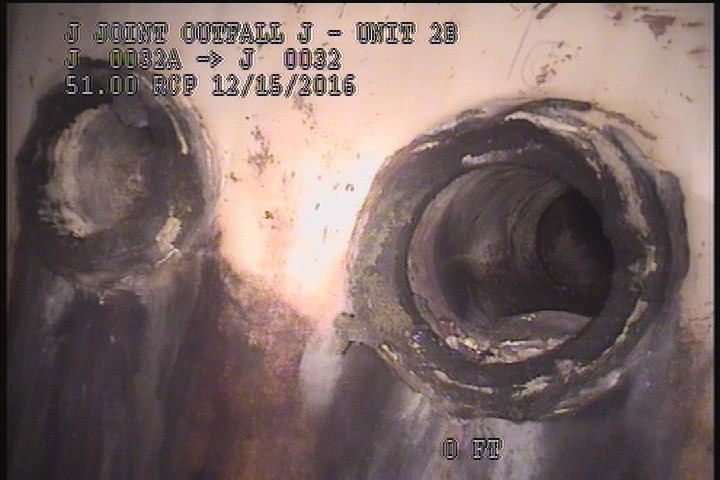

  • General Observation - TWO AIRLINES

    0 ft. - General Observation - TWO AIRLINES

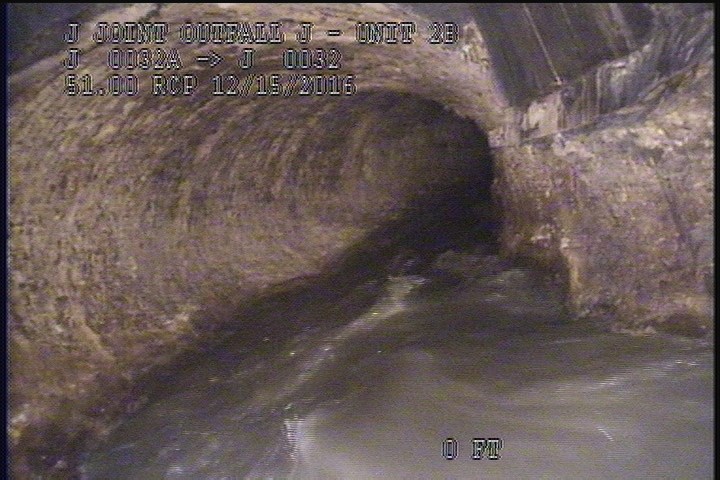

  • Upstream Manhole, Survey Begins - 10:33 AM

    0 ft. - Upstream Manhole, Survey Begins - 10:33 AM

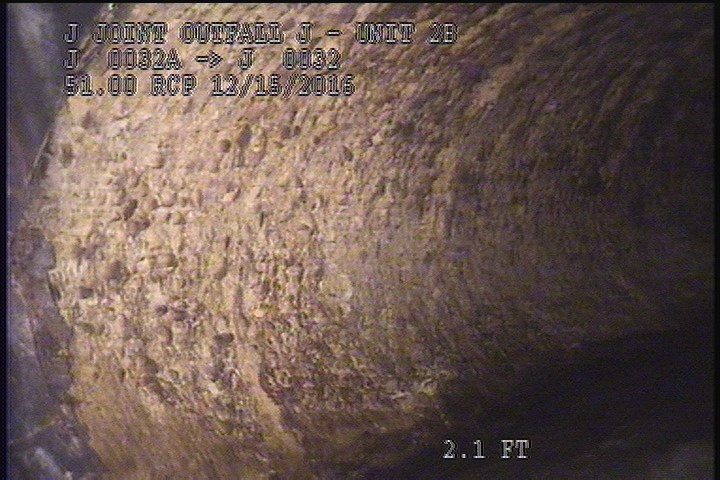

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO

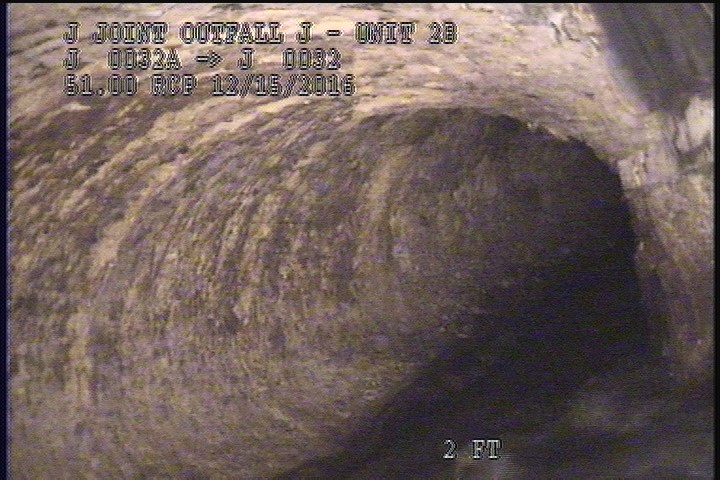

  • Alignment Down, 45 %

    2 ft. - Alignment Down, 45 %

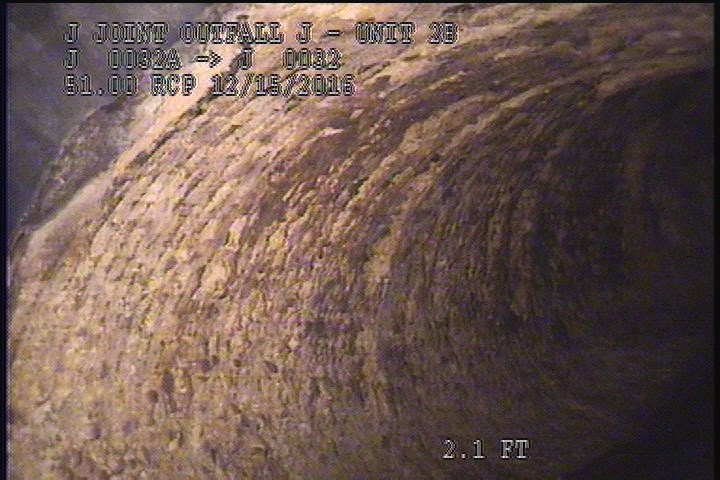

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

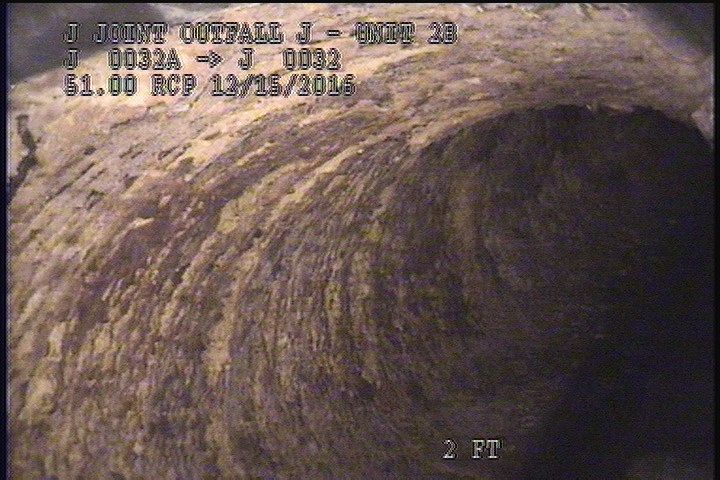

  • Surface Reinforcement Corroded, from 12 to 01 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Corroded, from 12 to 01 o'clock, within 8 inches of joint: YES

All inspections of P11609Work order 0602683

Observations (9)

DistanceCodeObservation
0MGOTWO AIRLINES
2SSS—
2SAV—
2LD—
0MWL—
2.1MSAVIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
2SRV—
2SRC—
0AMH10:33 AM

Properties (5)

additional_info
VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON, RFIR INSPECTION
custom_field_three
BROKEN REBAR
custom_field_two
2
customer
LACSD
datetime
2016-12-15T09:57:24-08:00
