Wastewater/Activity/PacpInspection/1.0Dec 9, 2016, 07:22 PM
29 0069_29 0068_1292016_112419.mp4
- Date
- 12/09/2016
- W/O
- 0607759
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z01015
- PipeID
- P23850
- Time
- 11:22 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7292
- Sewer Name
- 29 EASTSIDE INTERCEPTOR SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20161209DF_EASTSIDE_INTERCEPTOR_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0069
- Downstream MH
- 29 0068
- Dir. of Survey
- Downstream
- Length Surveyed
- 350.5 ft.
- Total Length
- 350.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (2)

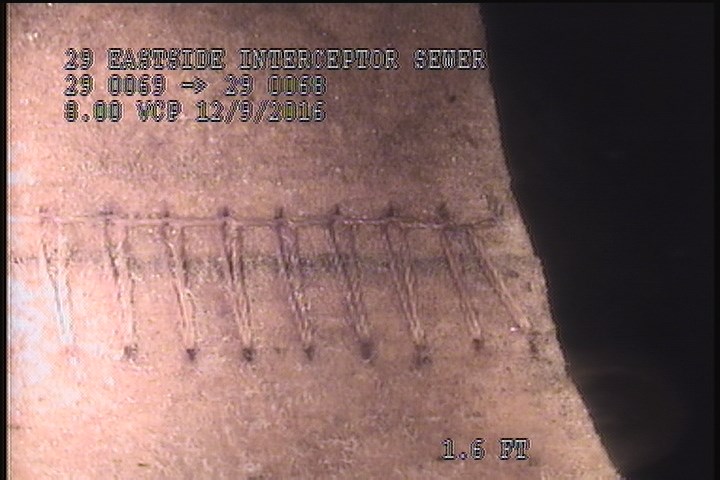

1.6 ft. - General Observation - POSSIBLE STITCHED LINER START 1 O'CLOCK

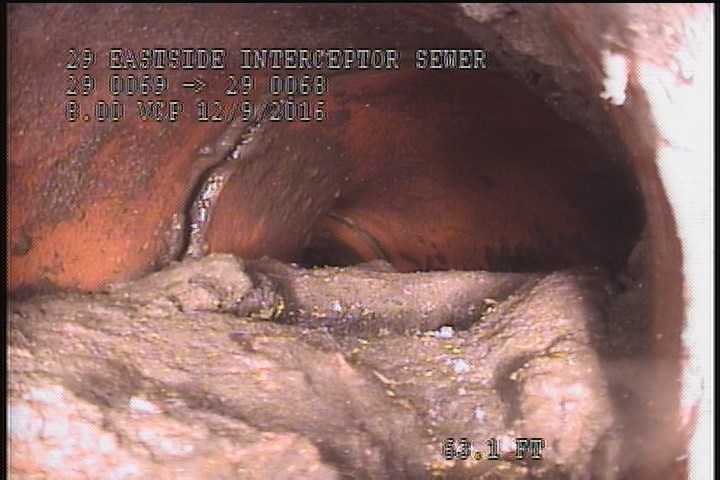

63.1 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - 70% BLOCKED GREASE
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 350.5 | AMH | 11:51 AM |
| 0 | MWM | — |
| 162.1 | TFA | — |
| 268.3 | TF | 45% BLOCKED GREASE |
| 63.1 | TF | 70% BLOCKED GREASE |
| 1.6 | MGO | POSSIBLE STITCHED LINER START 1 O'CLOCK |
| 0 | AMH | 11:22 AM |
| 350.5 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 350.5 | MGO | ROACHES @ MH |
| 350.5 | MGO | STITCHED LINER @ 2 O'CLOCK |
| 180.1 | TB | OPEN |
| 265.9 | TF | OPEN |
| 0 | MWL | — |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-09T11:22:03-08:00
