Wastewater/Activity/PacpInspection/1.0Dec 9, 2016, 06:33 PM
29 0070_29 0069_1292016_104139.mp4
- Date
- 12/09/2016
- W/O
- 0607759
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z01015
- PipeID
- P23851
- Time
- 10:33 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7292
- Sewer Name
- 29 EASTSIDE INTERCEPTOR SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20161209DF_EASTSIDE_INTERCEPTOR_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0070
- Downstream MH
- 29 0069
- Dir. of Survey
- Downstream
- Length Surveyed
- 356.8 ft.
- Total Length
- 356.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

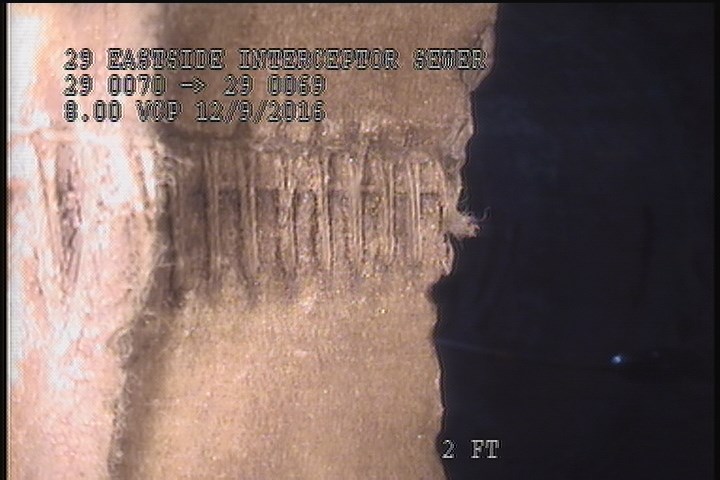

2 ft. - General Photograph - POSSIBLE START OF A LINER/STITCHED

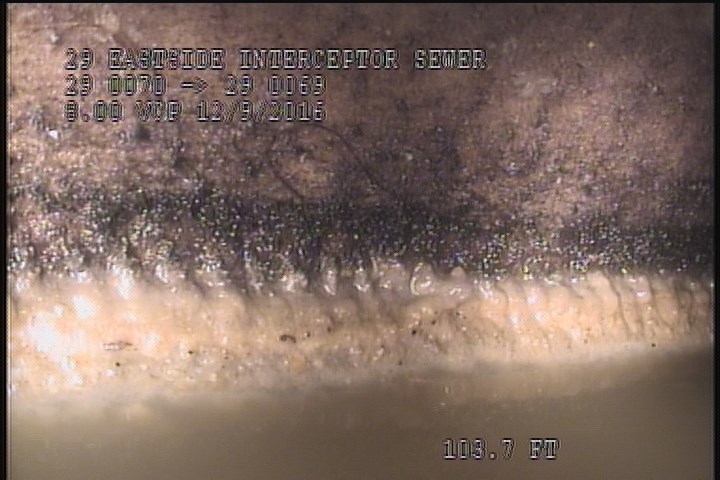

103.7 ft. - General Observation - POSSIBLE LINER /STITCHED HAS MOVED ROTATED FROM 12 O'CLOCK TO 7 O'CLOCK

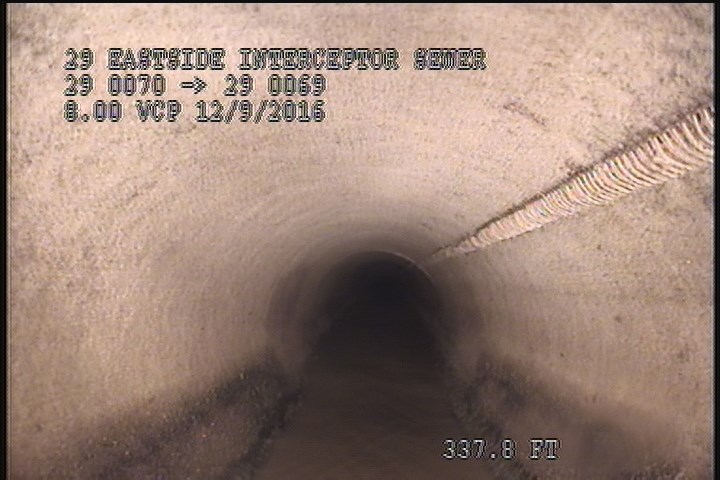

337.8 ft. - General Observation - POSSIBLE LINER/STITCHED HAS NOW ROTATED TO 2 O'CLOCK
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 356.8 | AMH | 11:18 AM |
| 216.1 | TF | OPEN |
| 0.1 | MWL | — |
| 0.1 | MWM | — |
| 116.6 | TF | OPEN |
| 337.8 | MGO | POSSIBLE LINER/STITCHED HAS NOW ROTATED TO 2 O'CLOCK |
| 356.5 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 17 | TF | OPEN |
| 320 | TFA | — |
| 0 | AMH | 10:38 AM |
| 2 | MGP | POSSIBLE START OF A LINER/STITCHED |
| 13.2 | TF | OPEN |
| 103.7 | MGO | POSSIBLE LINER /STITCHED HAS MOVED ROTATED FROM 12 O'CLOCK TO 7 O'CLOCK |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-09T10:33:45-08:00
