Wastewater/Activity/PacpInspection/1.0Dec 7, 2016, 08:51 AM
H 1280_H 1329_1272016_010135.mp4
- Date
- 12/07/2016
- W/O
- 0602267
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01184
- PipeID
- P25889
- Time
- 12:51 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0365
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L RELIEF
- City
- AZUSA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- 20161207MDM_JOINT_OUTFALL_H_UNIT_8L_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- H 1329
- Downstream MH
- H 1280
- Dir. of Survey
- Upstream
- Length Surveyed
- 16.3 ft.
- Total Length
- 16.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

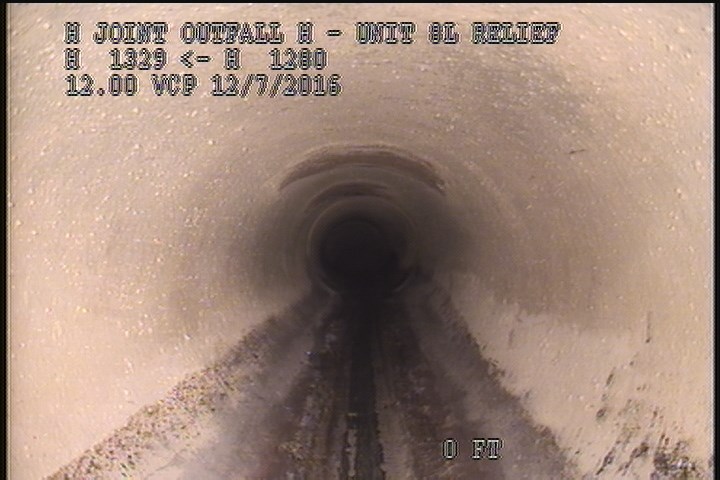

2 ft. - General Observation - WHITE COATING ON PIPE

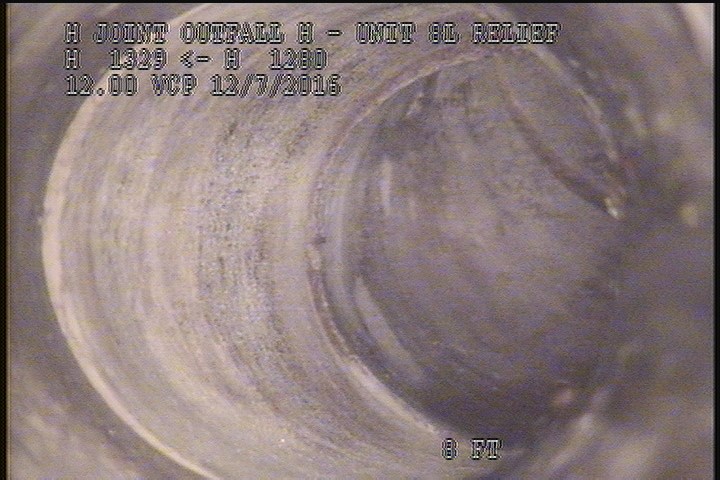

8 ft. - General Observation - ZOOM 8'

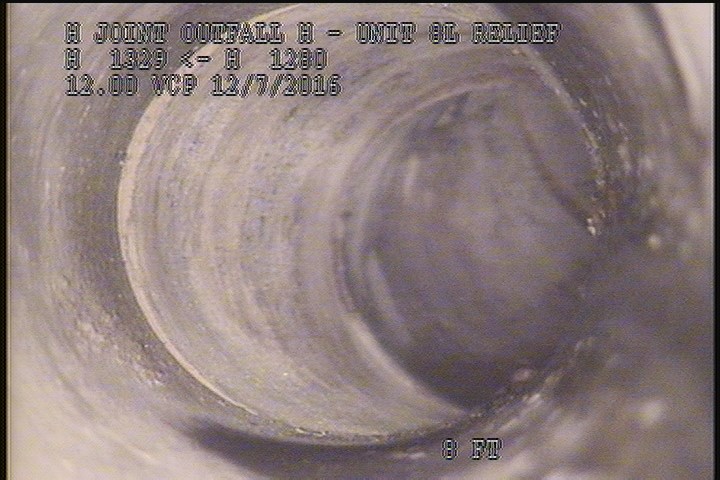

16.3 ft. - Upstream Manhole, Survey Ends - 1:10AM
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 1 | MGO | CAR PARKED ON MH H1280 |
| 0 | MWL | — |
| 0 | AMH | 12:55AM |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 8 | MGO | ZOOM 8' |
| 2 | MGO | WHITE COATING ON PIPE |
| 16.3 | AMH | 1:10AM |
| 0 | MWM | — |
Properties (4)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-07T00:51:07-08:00
- year_laid
- 20080424
