Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 6, 2016, 11:03 AM

  • 22 0435_22 0434_1262016_041857.mp4

Date
12/06/2016
W/O
0608227
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00815
PipeID
P16772
Time
3:03 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
H0364
Sewer Name
22 LARK ELLEN TRUNK, SECTS 2&3
City
COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Capital Improvement Program Assesment
Project
20161205MDM_LARK_ELLEN_TRUNK_SECTS_2_3
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
22 0435
Downstream MH
22 0434
Dir. of Survey
Downstream
Length Surveyed
280.8 ft.
Total Length
280.8 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
2
O&M Quick
3112
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 22 0435 to 22 0434
MH: 22 0435MH: 22 0434downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG15.2 ft. MGO - General Observation - 12" NRCP24.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open37.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open72.3 ft. RMJ - Roots Medium Joint, from 03 to 05 o'clock, 15 %, within 8 inches of joint: YESR81.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open114.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open133.5 ft. RFJ - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YESR - 1%139.9 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG139.9 ft. MGP - General Photograph146.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active163.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open166 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%166.4 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE196.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open207.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open280.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active280.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG280.8 ft. AMH - Downstream Manhole, Survey Ends - 4:45AM

Observation photos (4)

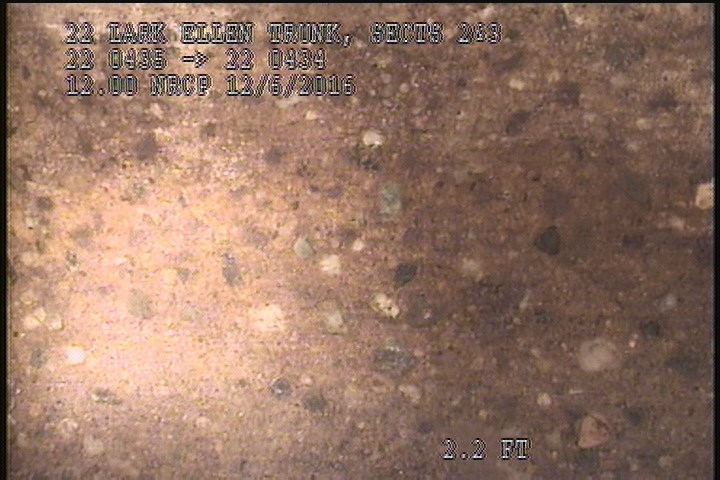

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

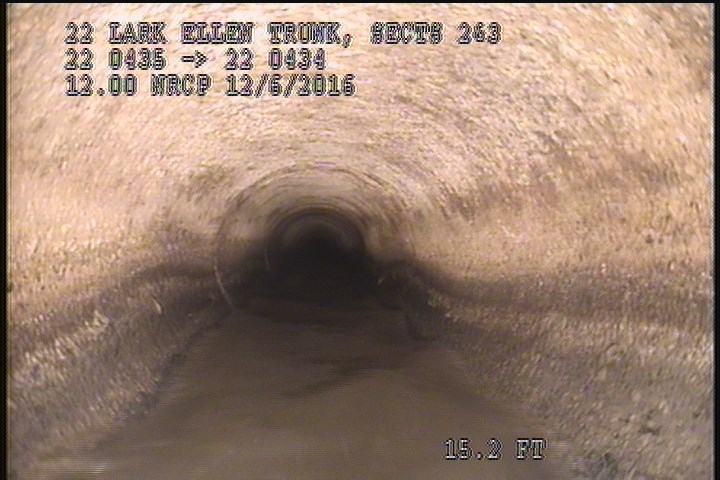

  • General Observation - 12" NRCP

    15.2 ft. - General Observation - 12" NRCP

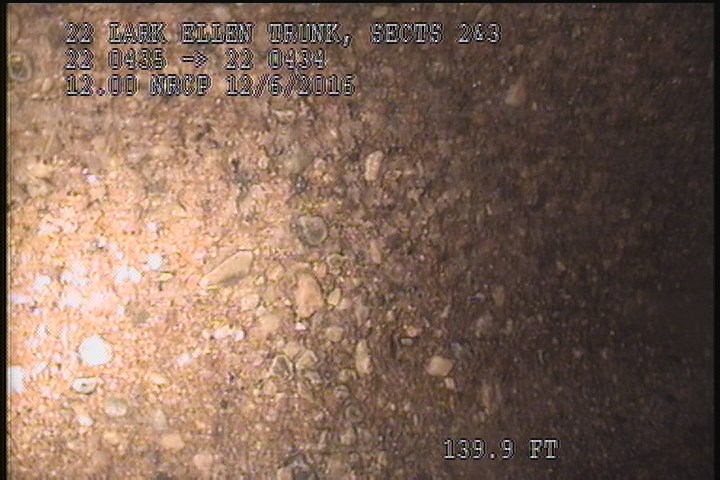

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

    139.9 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

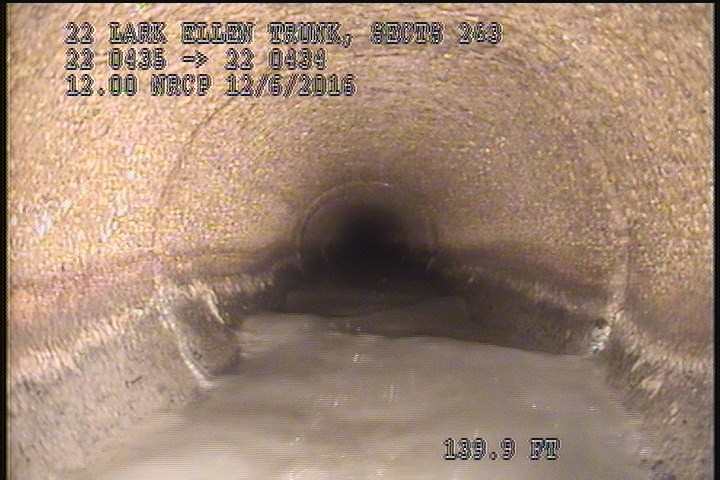

  • General Photograph

    139.9 ft. - General Photograph

All inspections of P16772Work order 0608227

Observations (22)

DistanceCodeObservation
15.2MGO12" NRCP
207.7TFOpen
37.1TFOpen
24.8TFOpen
166RFJ4%
81.7TFOpen
280.4MGOConn. @ Mh, 3 O' Clock. Active
146.8TFActive
114.1TFOpen
0AMH4:15AM
133.5RFJ1%
0MWL—
196.2TFOpen
2SAPSEVERE AGG
280.4SAPSEVERE AGG
139.9SAPSEVERE AGG
280.8AMH4:45AM
163.1TFOpen
166.4FCHAIRLINE
139.9MGP—
72.3RMJ—
0MWM—

Properties (4)

custom_field_three
SEVERE AGG PROJECTING
custom_field_two
2
customer
LACSD
datetime
2016-12-06T03:03:33-08:00
