Wastewater/Activity/PacpInspection/1.0Dec 5, 2016, 08:39 AM
H 1411_H 1410_1252016_015037.mp4
- Date
- 12/05/2016
- W/O
- 0602291
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01204
- PipeID
- P20196
- Time
- 12:39 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0361
- Sewer Name
- H JOINT OUTFALL H - UNIT 8M
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- 20161205MDM_JOINT_OUTFALL_H_UNIT_8M
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- H 1411
- Downstream MH
- H 1410
- Dir. of Survey
- Downstream
- Length Surveyed
- 4 ft.
- Total Length
- 4 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

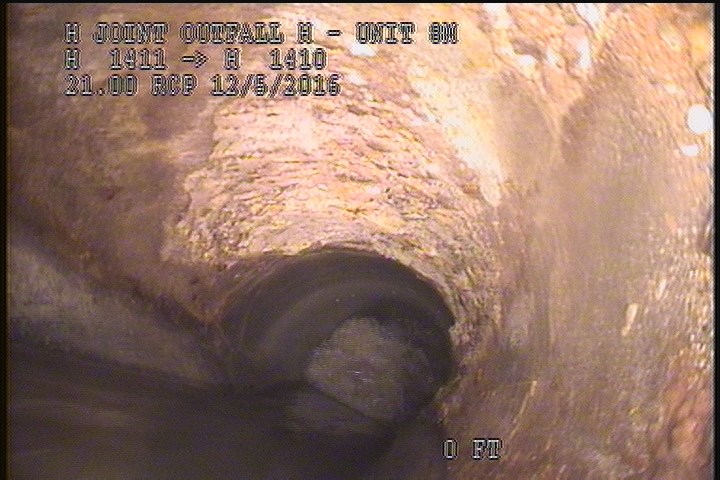

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING BLISTERING CONCRETE

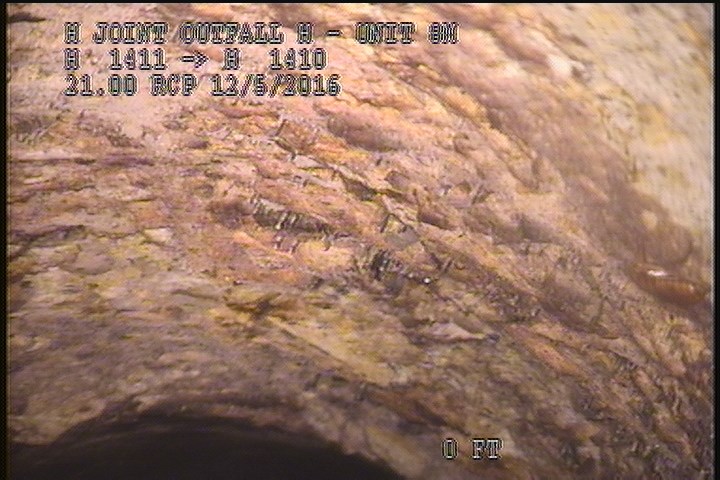

3 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

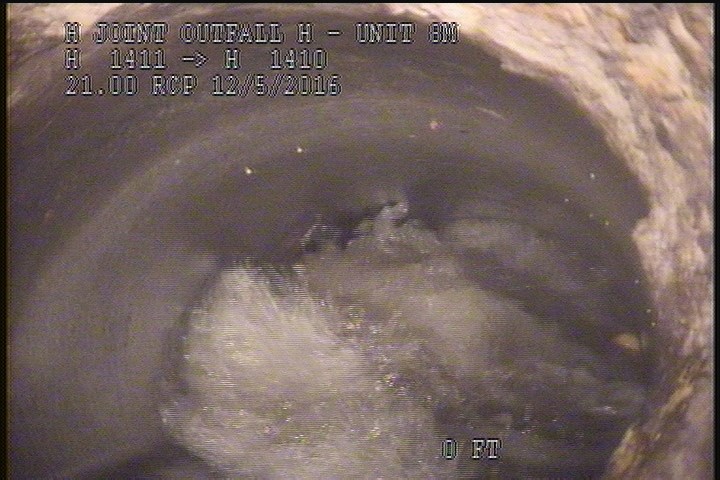

4 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON EAST BARREL
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 4 | MSA | DOWNLEG UPSTREAM SIPHON EAST BARREL |
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | SSS | PEELING BLISTERING CONCRETE |
| 3 | SAP | SEVERE AGG |
| 0 | AMH | 1:40AM |
Properties (5)
- additional_info
- DOWNLEG UPSTREAM SIPHON -EAST BARREL
- custom_field_three
- PROJECTING SEVERE AGG
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-12-05T00:39:25-08:00
