Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2016, 10:36 AM

  • 22 1154_B 0723_1222016_032845.mp4

Date
12/02/2016
W/O
0602241
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00111
PipeID
P09187
Time
2:36 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0359
Sewer Name
B JOINT OUTFALL B - UNIT 8H
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
02
Purpose
Routine Assessment
Project
20161202MDM_JOINT_OUTFALL_B_UNIT_8H
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
B 0723
Downstream MH
22 1154
Dir. of Survey
Upstream
Length Surveyed
7 ft.
Total Length
7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 0723 to 22 1154
MH: B 0723MH: 22 1154upstream0 ft. AMH - Upstream Manhole, Survey Ends - 3:35AM- STOPLOG IN PLACE5 ft. MGO - General Observation - 12" VCP7 ft. MWL - Water Level, 0 %of cross sectional area - NO FLOW7 ft. AMH - Downstream Manhole, Survey Begins - 3:30AM7 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped7 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped7 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (2)

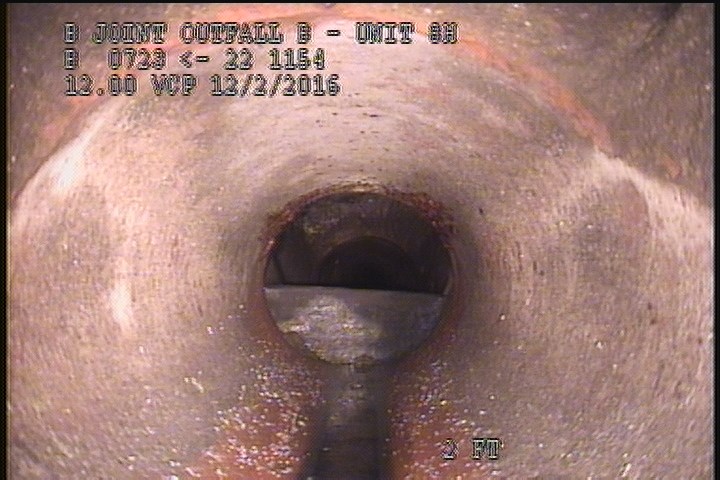

  • General Observation - 12" VCP

    2 ft. - General Observation - 12" VCP

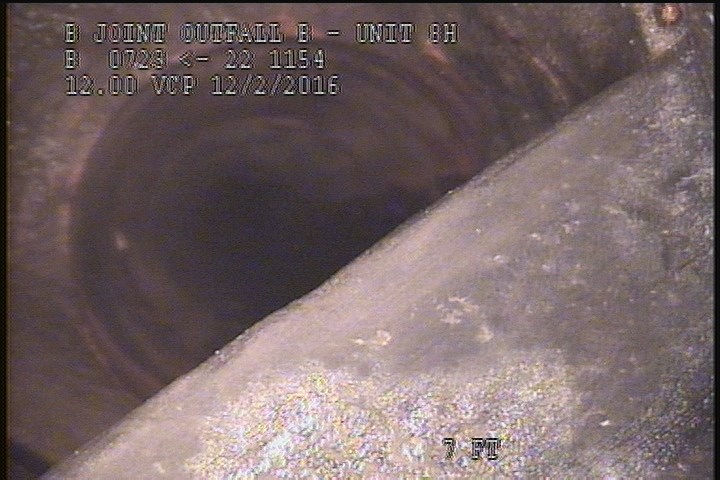

  • Upstream Manhole, Survey Ends - 3:35AM- STOPLOG IN PLACE

    7 ft. - Upstream Manhole, Survey Ends - 3:35AM- STOPLOG IN PLACE

All inspections of P09187Work order 0602241

Observations (7)

DistanceCodeObservation
0MWLNO FLOW
0AMH3:30AM
0MGOConn. @ Mh, 9 O' Clock. Capped
0MGOConn. @ Mh, 3 O' Clock. Capped
7AMH3:35AM- STOPLOG IN PLACE
0MWM—
2MGO12" VCP

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-12-02T02:36:10-08:00
