Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 1, 2016, 08:39 AM

  • 22 0742_22 0741_1212016_010616.mp4

Date
12/01/2016
W/O
0602129
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00821
PipeID
P17098
Time
12:39 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0358
Sewer Name
22 PUDDINGSTONE TRUNK, SECTS 1&2
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
23
Purpose
Routine Assessment
Project
20161201MDM_PUDDINGSTONE_TRUNK_SECTS_1_2
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0742
Downstream MH
22 0741
Dir. of Survey
Downstream
Length Surveyed
275.7 ft.
Total Length
275.7 ft.
Structural Index
3
Structural Quick
4223
Structural Rating
14
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 22 0742 to 22 0741
MH: 22 0742MH: 22 0741downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:45AM0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MULTI LAYR PEELING CONCRETE SEVERE AGG ATTACHED2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG21 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - PEELING CONCRETE SEVERE AGG ATTCHED39 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped42.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped62.9 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG79.9 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO88.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped92.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open141.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped145.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped147.5 ft. MGO - General Observation - 15" NRCP186.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped190.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped239.2 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped243.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped247.2 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 6" - Open275.2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG275.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active275.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING MULTI LAYER CONCRETE SEVERE AGG ATTACHED275.7 ft. AMH - Downstream Manhole, Survey Ends - 1:25AM

Observation photos (6)

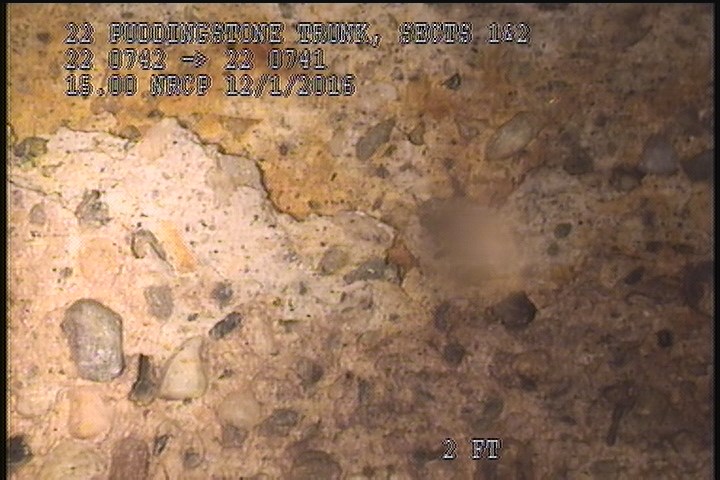

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MULTI LAYR PEELING CONCRETE SEVERE AGG ATTACHED

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MULTI LAYR PEELING CONCRETE SEVERE AGG ATTACHED

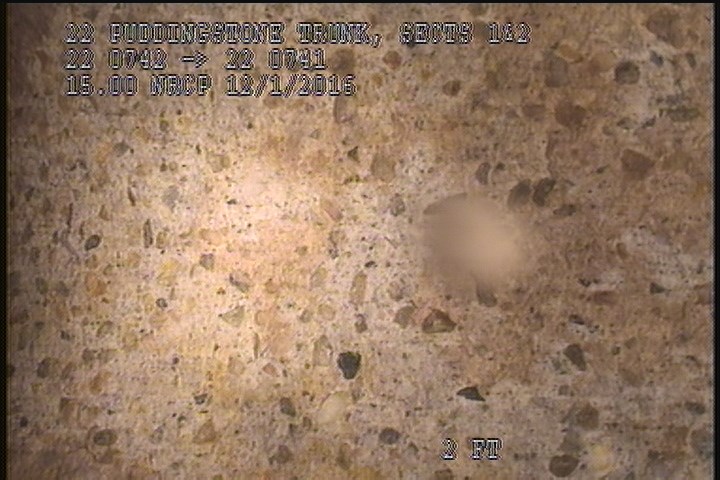

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

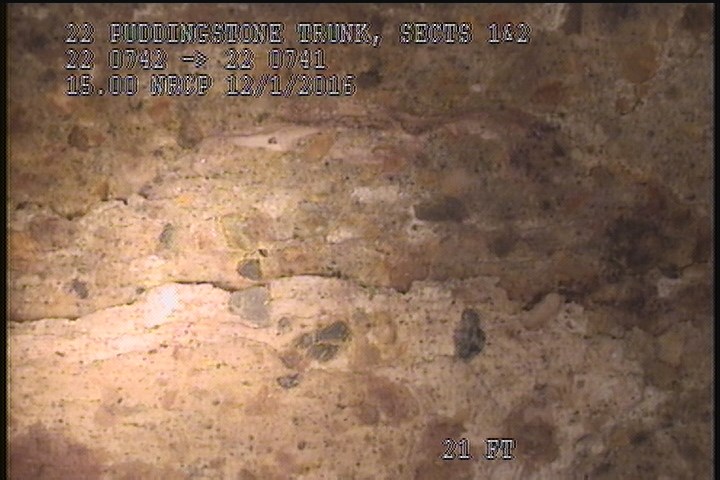

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - PEELING CONCRETE SEVERE AGG ATTCHED

    21 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES - PEELING CONCRETE SEVERE AGG ATTCHED

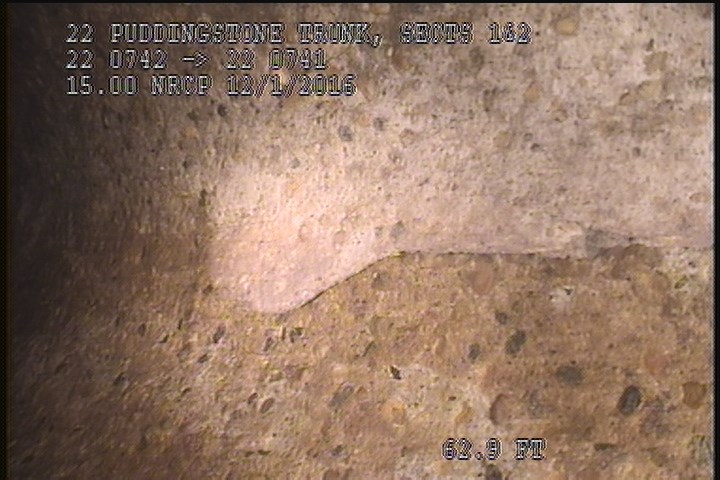

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

    62.9 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

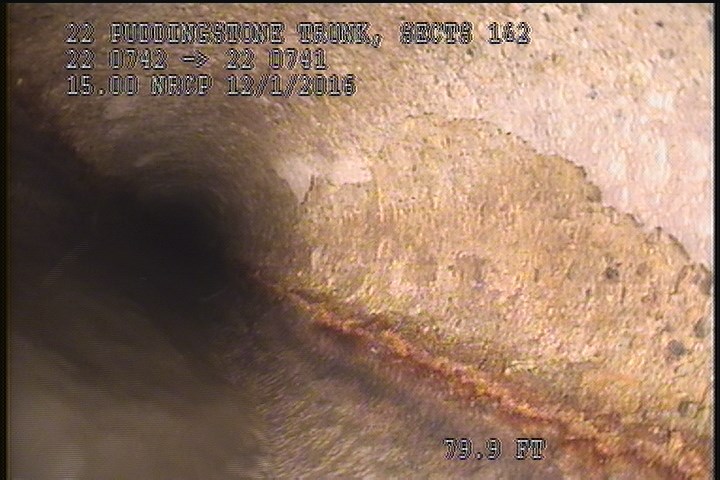

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO

    79.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO

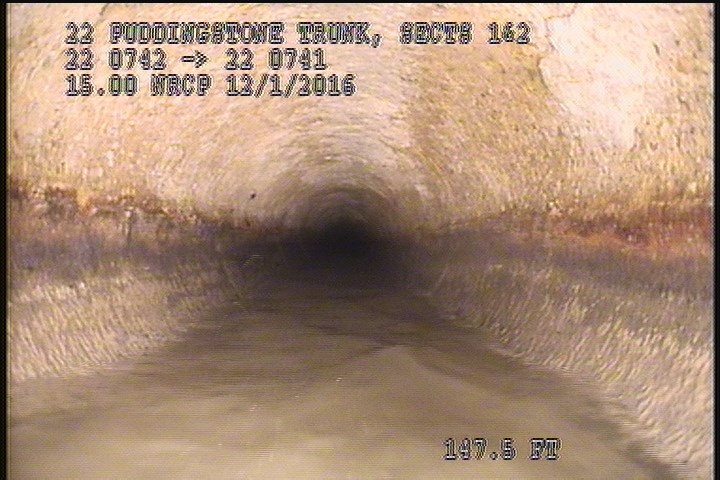

  • General Observation - 15" NRCP

    147.5 ft. - General Observation - 15" NRCP

All inspections of P17098Work order 0602129

Observations (24)

DistanceCodeObservation
145.1TFCCapped
275.2SAMSEVERE AGG
275.2MGOConn. @ Mh, 3 O' Clock. Active
247.2TBOpen
275.7AMH1:25AM
88.2TFCCapped
275.2SSSPEELING MULTI LAYER CONCRETE SEVERE AGG ATTACHED
147.5MGO15" NRCP
141.4TFCCapped
62.9SAMSEVERE AGG
190.2TFCCapped
0AMH12:45AM
2SSSMULTI LAYR PEELING CONCRETE SEVERE AGG ATTACHED
243.4TFCCapped
21SSSPEELING CONCRETE SEVERE AGG ATTCHED
79.9SSS—
39TFCCapped
239.2TBCCapped
186.3TFCCapped
42.7TFCCapped
92.3TFOpen
2SAMSEVERE AGG
0MWM—
0MWL—

Properties (4)

custom_field_three
PEELING MULTI LAYER CONCRETE SEVERE AGG ATTCHED
custom_field_two
1
customer
LACSD
datetime
2016-12-01T00:39:58-08:00
