Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 1, 2016, 08:57 AM

  • B 0727_B 0726_1212016_044025.mp4

Date
12/01/2016
W/O
0602241
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00111
PipeID
P09191
Time
12:57 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0359
Sewer Name
B JOINT OUTFALL B - UNIT 8H
City
DUARTE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
02
Purpose
Routine Assessment
Project
20161201MDM_JOINT_OUTFALL_B_UNIT_8H
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
B 0727
Downstream MH
B 0726
Dir. of Survey
Downstream
Length Surveyed
329.6 ft.
Total Length
329.6 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole B 0727 to B 0726
MH: B 0727MH: B 0726downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 4:35AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area86.9 ft. FC - Fracture Circumferential, from 07 to 06 o'clock, within 8 inches of joint: YES - SLIGHT -AROUND ENTIRE PIPE102.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE218 ft. FC - Fracture Circumferential, from 07 to 06 o'clock, within 8 inches of joint: YES - SLIGHT AROUND ENTIRE PIPE237.2 ft. MGO - General Observation - 15" VCP303.1 ft. FC - Fracture Circumferential, from 02 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE329.6 ft. AMH - Downstream Manhole, Survey Ends - 5:10AM

Observation photos (3)

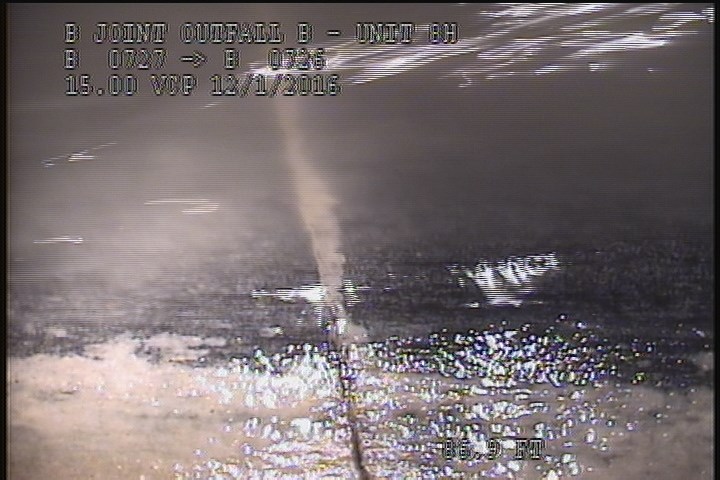

  • Fracture Circumferential, from 07 to 06 o'clock, within 8 inches of joint: YES - SLIGHT -AROUND ENTIRE PIPE

    86.9 ft. - Fracture Circumferential, from 07 to 06 o'clock, within 8 inches of joint: YES - SLIGHT -AROUND ENTIRE PIPE

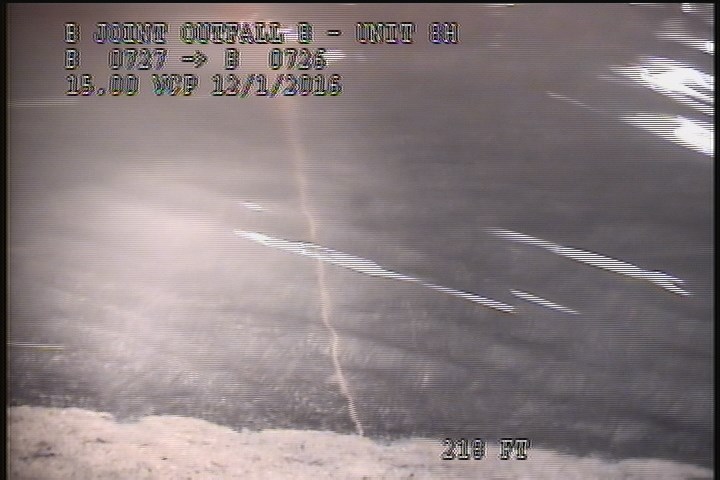

  • Fracture Circumferential, from 07 to 06 o'clock, within 8 inches of joint: YES - SLIGHT AROUND ENTIRE PIPE

    218 ft. - Fracture Circumferential, from 07 to 06 o'clock, within 8 inches of joint: YES - SLIGHT AROUND ENTIRE PIPE

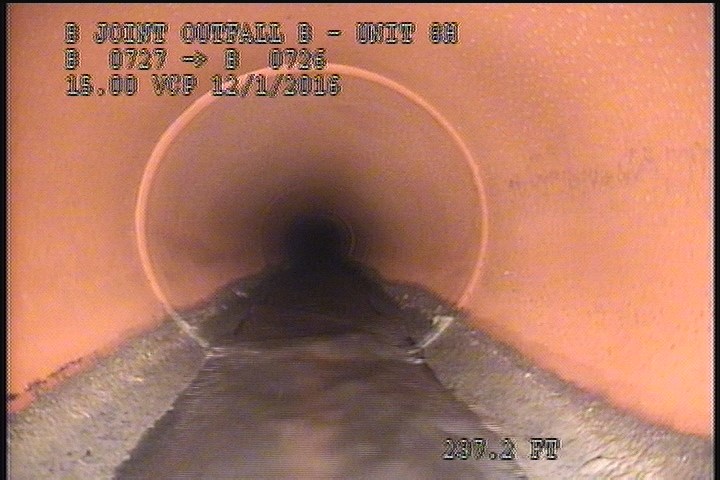

  • General Observation - 15" VCP

    237.2 ft. - General Observation - 15" VCP

All inspections of P09191Work order 0602241

Observations (11)

DistanceCodeObservation
237.2MGO15" VCP
0MGOConn. @ Mh, 3 O' Clock. Active
86.9FCSLIGHT -AROUND ENTIRE PIPE
0AMH4:35AM
0MGOConn. @ Mh, 9 O' Clock. Capped
218FCSLIGHT AROUND ENTIRE PIPE
0MWL—
329.6AMH5:10AM
0MWM—
303.1FCHAIRLINE
102.1FCHAIRLINE

Properties (4)

custom_field_three
2 SLIGHT FRACTURES AROUND ENTIRE PIPE
custom_field_two
4
customer
LACSD
datetime
2016-12-01T00:57:55-08:00
