Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 6, 2016, 04:47 PM

  • 29 0071A_29 0071_1262016_103523.mp4

Date
12/06/2016
W/O
0607759
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01015
PipeID
P23853
Time
8:47 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7286
Sewer Name
29 EASTSIDE INTERCEPTOR SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
20161201DF_EASTSIDE_INTERCEPTOR_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0071A
Downstream MH
29 0071
Dir. of Survey
Downstream
Length Surveyed
181.2 ft.
Total Length
181.2 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 29 0071A to 29 0071
MH: 29 0071AMH: 29 0071downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:34 AM0.1 ft. MWL - Water Level, 10 %of cross sectional area0.1 ft. MWM - Water Mark, 15 %of cross sectional area34.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN37.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"44.1 ft. MGO - General Observation - CHIPPING @ 12 O'CLPCK92 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN110.6 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES141.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN144.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"181.2 ft. AMH - Upstream Manhole, Survey Ends - 10:52 AM181.2 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH181.2 ft. MGO - General Observation - ROACHES @ MH

Observation photos (2)

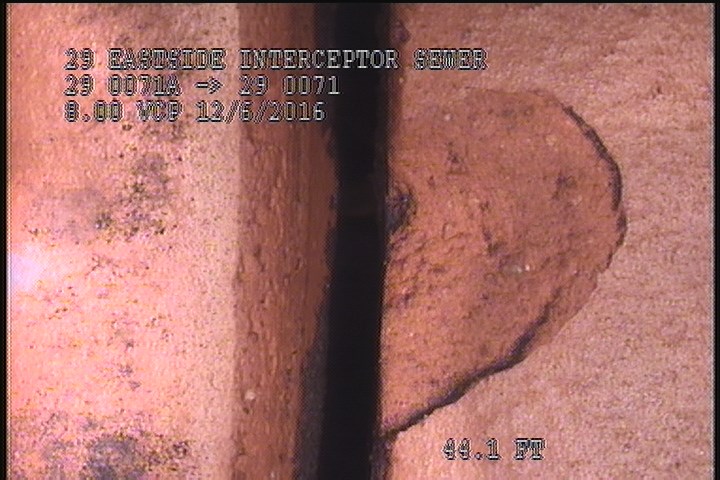

  • General Observation - CHIPPING @ 12 O'CLPCK

    44.1 ft. - General Observation - CHIPPING @ 12 O'CLPCK

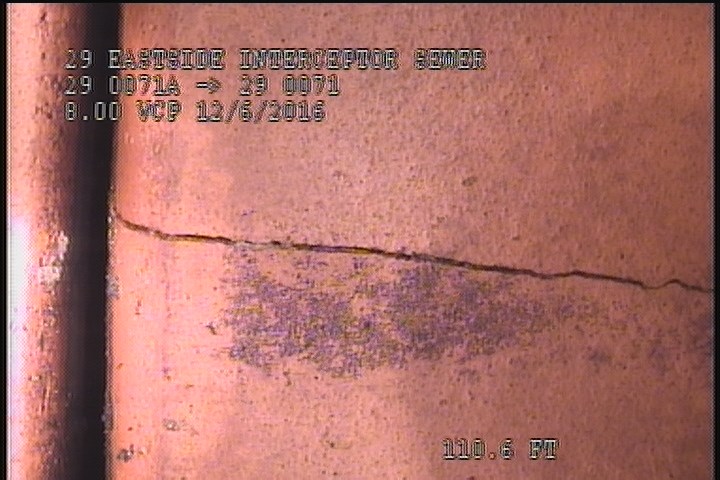

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    110.6 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P23853Work order 0607759

Observations (13)

DistanceCodeObservation
144.4TFA—
0AMH10:34 AM
181.2AMH10:52 AM
37.6TFA—
0.1MWL—
44.1MGOCHIPPING @ 12 O'CLPCK
110.6CL—
181.2MGOSLIGHT GREASE THROUGHOUT THE REACH
181.2MGOROACHES @ MH
141.7TFOPEN
34.5TFOPEN
92TBOPEN
0.1MWM—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-12-06T08:47:54-08:00
