Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 6, 2016, 04:43 PM

  • 29 0074_29 0073_1262016_133747.mp4

Date
12/06/2016
W/O
0607759
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01015
PipeID
P23855
Time
8:43 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7287
Sewer Name
29 EASTSIDE INTERCEPTOR SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Post-Rehabilitation Survey
Project
20161201DF_EASTSIDE_INTERCEPTOR_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0073
Downstream MH
29 0074
Dir. of Survey
Upstream
Length Surveyed
351.4 ft.
Total Length
351.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 29 0073 to 29 0074
MH: 29 0073MH: 29 0074upstream0 ft. AMH - Upstream Manhole, Survey Ends - 2:06 PM15.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN17.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - 90% BLOCKED107.8 ft. MWM - Water Mark, 10 %of cross sectional area - WATER MARK DROPPED117.2 ft. MGP - General Photograph - ROOTS 10% BLOCKED @ CONN117.2 ft. MGP - General Photograph - ROOTS119.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"214.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN216.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN320.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN323.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN351.3 ft. MWL - Water Level, 10 %of cross sectional area351.3 ft. MWM - Water Mark, 15 %of cross sectional area351.4 ft. AMH - Downstream Manhole, Survey Begins - 1:34 PM

Observation photos (3)

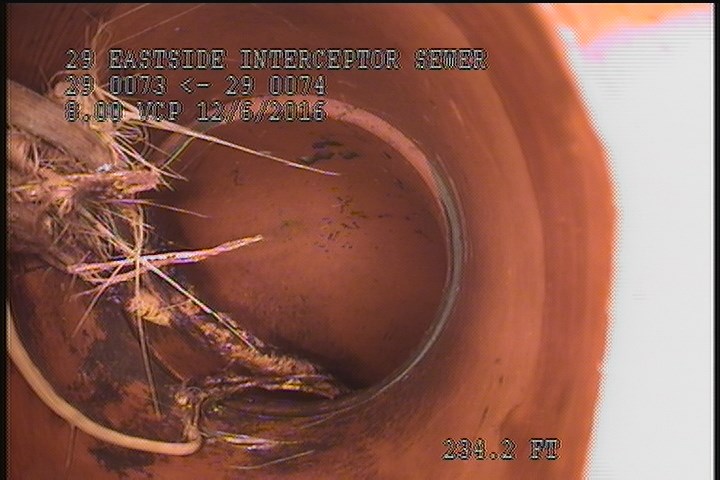

  • General Photograph - ROOTS 10% BLOCKED @ CONN

    234.2 ft. - General Photograph - ROOTS 10% BLOCKED @ CONN

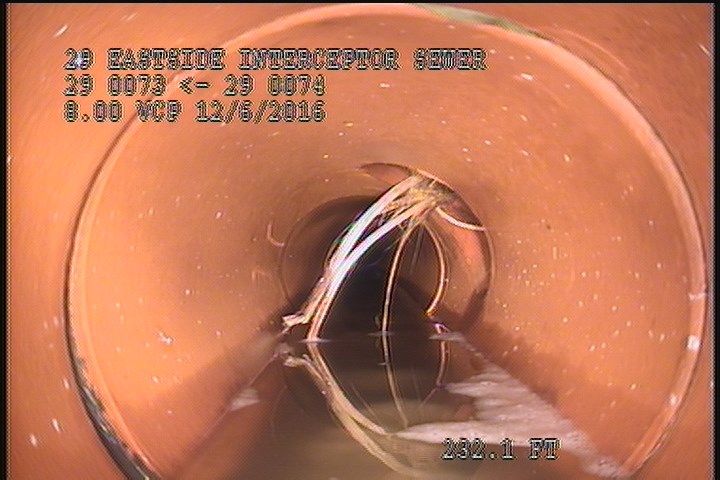

  • General Photograph - ROOTS

    234.2 ft. - General Photograph - ROOTS

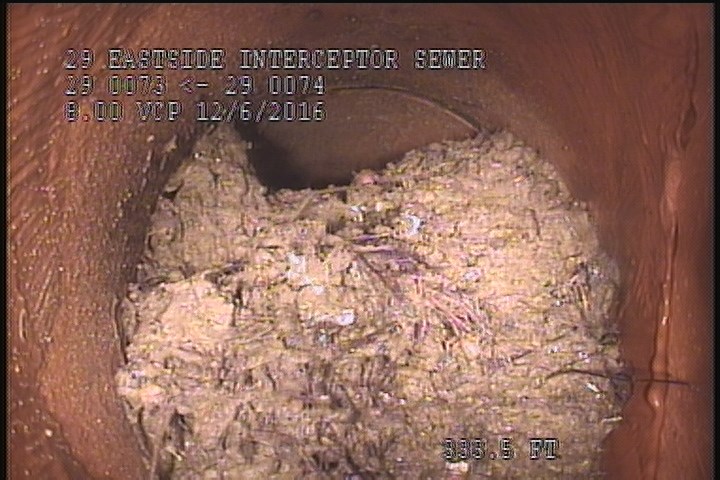

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - 90% BLOCKED

    333.5 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - 90% BLOCKED

All inspections of P23855Work order 0607759

Observations (14)

DistanceCodeObservation
27.6TFOPEN
333.5TF90% BLOCKED
231.7TFA—
0AMH1:34 PM
243.6MWMWATER MARK DROPPED
234.2MGPROOTS 10% BLOCKED @ CONN
137.3TFOPEN
351.4AMH2:06 PM
0.1MWL—
336.2TFOPEN
234.2MGPROOTS
30.5TFOPEN
134.9TFOPEN
0.1MWM—

Properties (4)

additional_info
POST ROOT EVALUATION
custom_field_two
4
customer
LACSD
datetime
2016-12-06T08:43:29-08:00
