Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 1, 2016, 04:20 PM

  • 29 0248_29 0247_1212016_090514.mp4

Date
12/01/2016
W/O
0607759
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01015
PipeID
P24151
Time
8:20 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7285
Sewer Name
29 EASTSIDE INTERCEPTOR SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
20161201DF_EASTSIDE_INTERCEPTOR_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0247
Downstream MH
29 0248
Dir. of Survey
Upstream
Length Surveyed
301.2 ft.
Total Length
301.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 29 0247 to 29 0248
MH: 29 0247MH: 29 0248upstream0 ft. AMH - Upstream Manhole, Survey Ends - 9:38 AM0 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH8.4 ft. MGP - General Photograph - BREAK IN CONN DEFECTIVE8.4 ft. TBD - Tap Break-In Defective, at 02 o'clock, -, , within 8 inches of joint: YES, 4"8.4 ft. MGP - General Photograph26.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"40.6 ft. MWL - Water Level, 5 %of cross sectional area40.6 ft. MWM - Water Mark, 10 %of cross sectional area50.1 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"54.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"158.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"287.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"301.1 ft. MWL - Water Level, 10 %of cross sectional area301.1 ft. MWM - Water Mark, 20 %of cross sectional area301.2 ft. AMH - Downstream Manhole, Survey Begins - 9:05 AM

Observation photos (4)

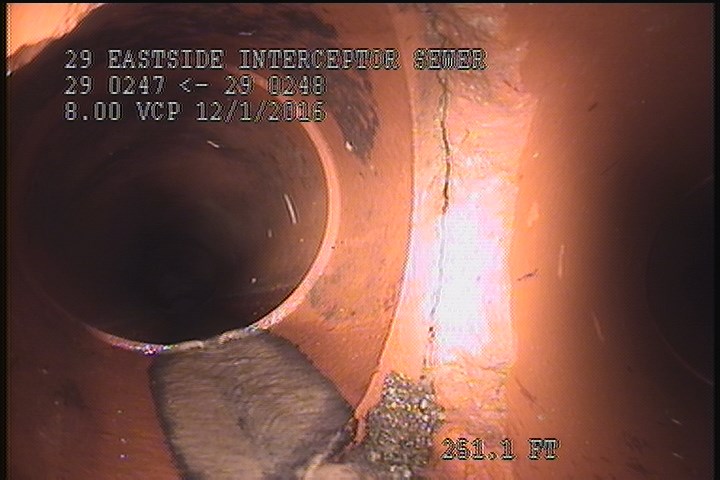

  • Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

    251.1 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

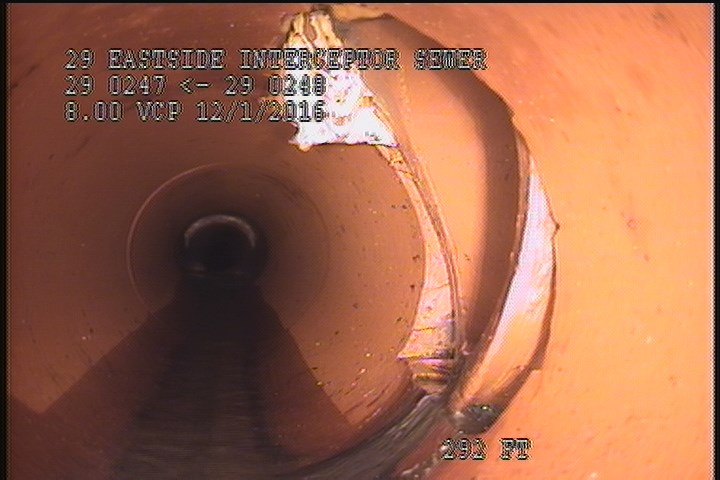

  • General Photograph - BREAK IN CONN DEFECTIVE

    292.8 ft. - General Photograph - BREAK IN CONN DEFECTIVE

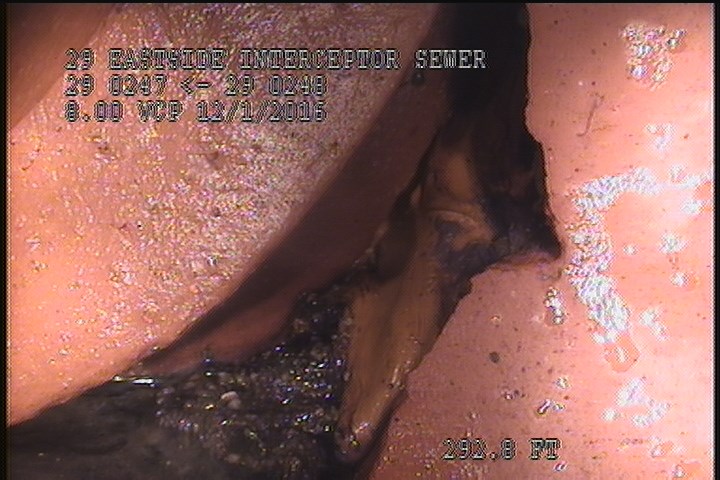

  • Tap Break-In Defective, at 02 o'clock, -, , within 8 inches of joint: YES, 4"

    292.8 ft. - Tap Break-In Defective, at 02 o'clock, -, , within 8 inches of joint: YES, 4"

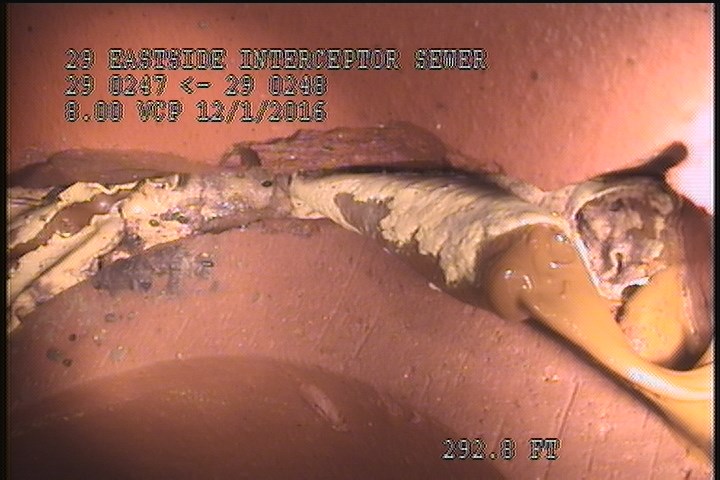

  • General Photograph

    292.8 ft. - General Photograph

All inspections of P24151Work order 0607759

Observations (15)

DistanceCodeObservation
142.3TFA—
0AMH9:05 AM
301.2AMH9:38 AM
292.8MGPBREAK IN CONN DEFECTIVE
0.1MWL—
13.5TFA—
246.3TFC—
0.1MWM—
260.6MWL—
274.4TFC—
301.2MGOSLIGHT GREASE THROUGHOUT THE REACH
260.6MWM—
292.8TBD—
251.1TBA—
292.8MGP—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-12-01T08:20:52-08:00
