Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 30, 2016, 09:19 PM

  • 29 0246_29 0245_11302016_134038.mp4

Date
11/30/2016
W/O
0607759
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01015
PipeID
P24149
Time
1:19 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7284
Sewer Name
29 EASTSIDE INTERCEPTOR SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20161129DF_EASTSIDE_INTERCEPTOR_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0245
Downstream MH
29 0246
Dir. of Survey
Upstream
Length Surveyed
358.9 ft.
Total Length
358.9 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 29 0245 to 29 0246
MH: 29 0245MH: 29 0246upstream0 ft. AMH - Upstream Manhole, Survey Ends - 2:03 PM1.2 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH7.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN25 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN113.8 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"162 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"164.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN192.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"230.6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"258.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN276.4 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"297.7 ft. MGP - General Photograph - BROKEN PIPE297.7 ft. B - Broken, at 03 o'clock, within 8 inches of joint: YES340.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN358.8 ft. MWL - Water Level, 10 %of cross sectional area358.8 ft. MWM - Water Mark, 15 %of cross sectional area358.9 ft. AMH - Downstream Manhole, Survey Begins - 1:39 PM

Observation photos (2)

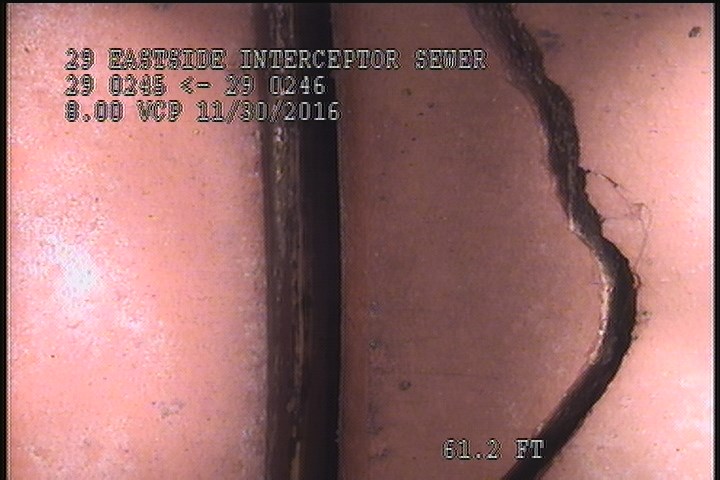

  • General Photograph - BROKEN PIPE

    61.2 ft. - General Photograph - BROKEN PIPE

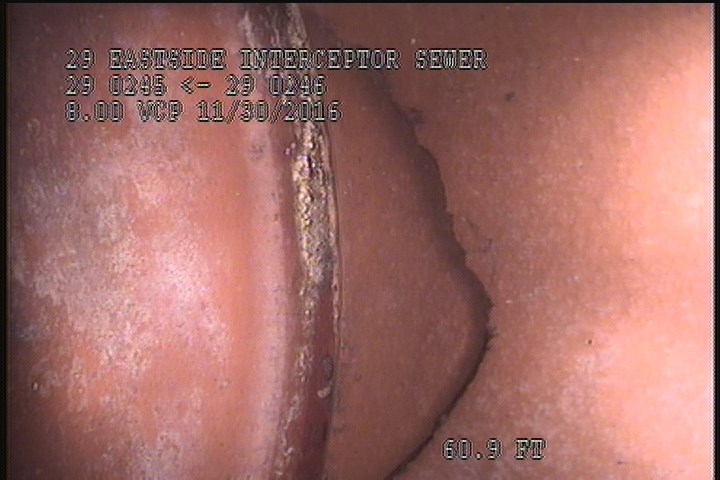

  • Broken, at 03 o'clock, within 8 inches of joint: YES

    61.2 ft. - Broken, at 03 o'clock, within 8 inches of joint: YES

All inspections of P24149Work order 0607759

Observations (17)

DistanceCodeObservation
82.5TFC—
18.2TFOPEN
61.2MGPBROKEN PIPE
166.3TFC—
245.1TFA—
61.2B—
194.1TFOPEN
333.9TFOPEN
357.7MGOSLIGHT GREASE THROUGHOUT THE REACH
196.9TFA—
100.4TFOPEN
358.9AMH2:03 PM
351.6TFOPEN
0.1MWL—
0.1MWM—
128.3TFC—
0AMH1:39 PM

Properties (3)

custom_field_two
1
customer
LACSD
datetime
2016-11-30T13:19:51-08:00
