Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 30, 2016, 08:44 PM

  • 29 0245_29 0058_11302016_124915.mp4

Date
11/30/2016
W/O
0607759
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z01015
PipeID
P24148
Time
12:44 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7284
Sewer Name
29 EASTSIDE INTERCEPTOR SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20161129DF_EASTSIDE_INTERCEPTOR_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0245
Downstream MH
29 0058
Dir. of Survey
Downstream
Length Surveyed
313.6 ft.
Total Length
313.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 29 0245 to 29 0058
MH: 29 0245MH: 29 0058downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:46 PM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. MWM - Water Mark, 15 %of cross sectional area39.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN40.1 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN87.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN90.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN139.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4" - 5% ROOTS141.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN190.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN192.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN241.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN243.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN291.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN291.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - OPEN294.3 ft. TFD - Tap Factory Made Defective, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN294.5 ft. MGP - General Photograph - BROKEN, DEFECTIVE CONN294.5 ft. FS - Fracture Spiral, from 12 to 12 o'clock, within 8 inches of joint: YES294.6 ft. MGP - General Photograph - HOLE IN PIPE @ 11 O'CLOCK313.6 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active313.6 ft. AMH - Downstream Manhole, Survey Ends - 1:18 PM313.6 ft. MGO - General Observation - ROACHES @ MH

Observation photos (4)

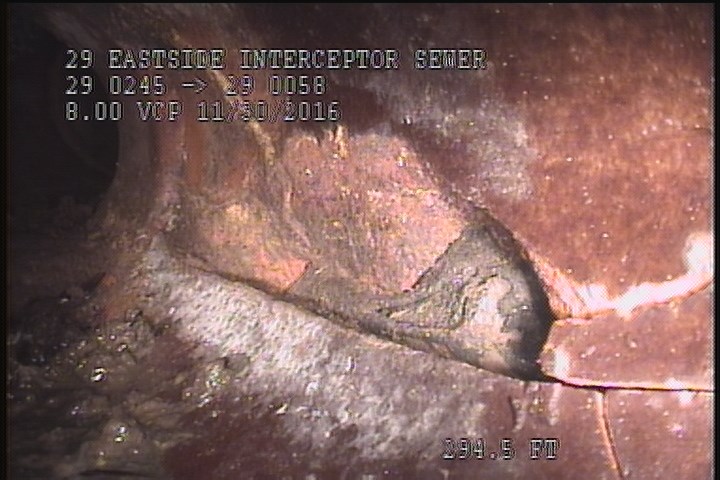

  • Tap Factory Made Defective, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN

    294.3 ft. - Tap Factory Made Defective, at 09 o'clock, -, within 8 inches of joint: YES, 4" - OPEN

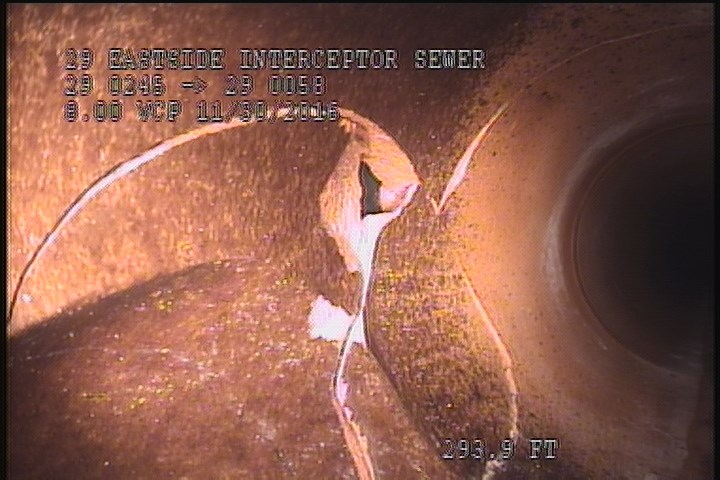

  • General Photograph - BROKEN, DEFECTIVE CONN

    294.5 ft. - General Photograph - BROKEN, DEFECTIVE CONN

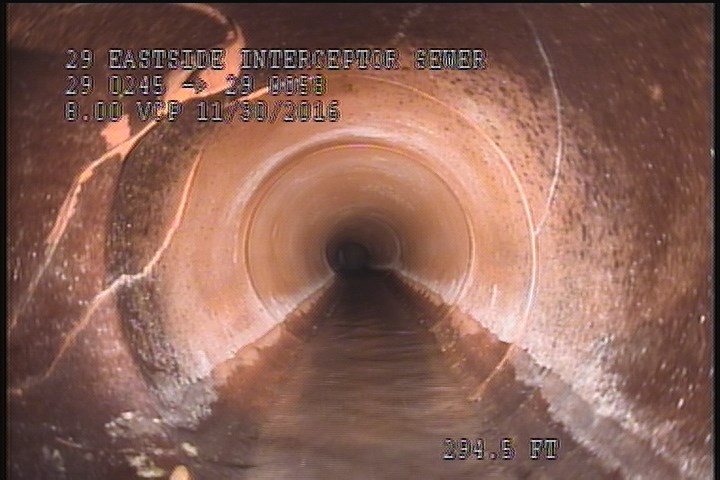

  • Fracture Spiral, from 12 to 12 o'clock, within 8 inches of joint: YES

    294.5 ft. - Fracture Spiral, from 12 to 12 o'clock, within 8 inches of joint: YES

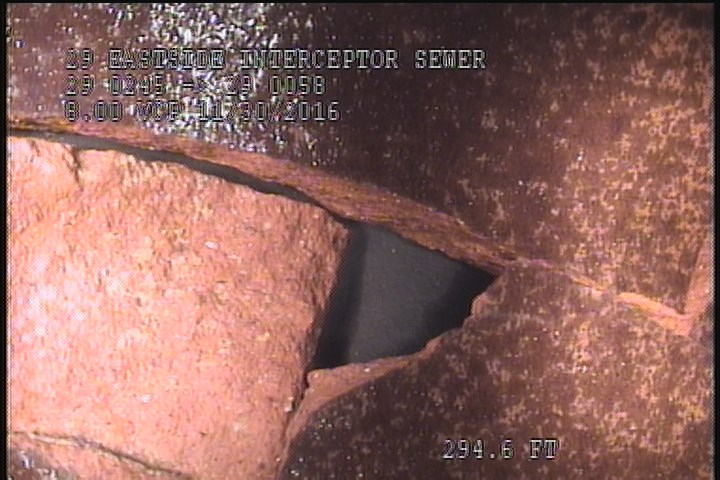

  • General Photograph - HOLE IN PIPE @ 11 O'CLOCK

    294.6 ft. - General Photograph - HOLE IN PIPE @ 11 O'CLOCK

All inspections of P24148Work order 0607759

Observations (23)

DistanceCodeObservation
0AMH12:46 PM
141.7TFOPEN
90.7TFOPEN
192.5TFOPEN
294.5MGPBROKEN, DEFECTIVE CONN
294.5FS—
40.1TFOPEN
243.5TFOPEN
0MWL—
291.9TFOPEN
190.1TFOPEN
294.3TFDOPEN
0MGOROACHES @ MH
39.6TFOPEN
87.7TFOPEN
0MWM—
313.6MGOConn. @ Mh, 9 O' Clock. Active
313.6AMH1:18 PM
241.1TFOPEN
291.9TFOPEN
294.6MGPHOLE IN PIPE @ 11 O'CLOCK
313.6MGOROACHES @ MH
139.2TFA5% ROOTS
